Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V(optional 110V)
-
Dimension(L*W*H):
-
935*620*1235mm
-
Weight:
-
120 kg
-
Product name:
-
4660 electric paper cutter
-
Keyword:
-
electric paper cutter machine
-
Name:
-
Paper processing machinery
-
Item:
-
paper cutting machine automatic
-
Max.paper cutting width:
-
460*460mm
-
Max.paper cutting height:
-
60mm
-
Precision:
-
±0.3mm
-
Cutting length behind knife:
-
460mm
-
Table length infront knife:
-
235mm
-
Min.Cutting depth:
-
40mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
460mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V(optional 110V)
-
Dimension(L*W*H):
-
935*620*1235mm
-
Weight:
-
120 kg
-
Product name:
-
4660 electric paper cutter
-
Keyword:
-
electric paper cutter machine
-
Name:
-
Paper processing machinery
-
Item:
-
paper cutting machine automatic
-
Max.paper cutting width:
-
460*460mm
-
Max.paper cutting height:
-
60mm
-
Precision:
-
±0.3mm
-
Cutting length behind knife:
-
460mm
-
Table length infront knife:
-
235mm
-
Min.Cutting depth:
-
40mm
Product Description
|

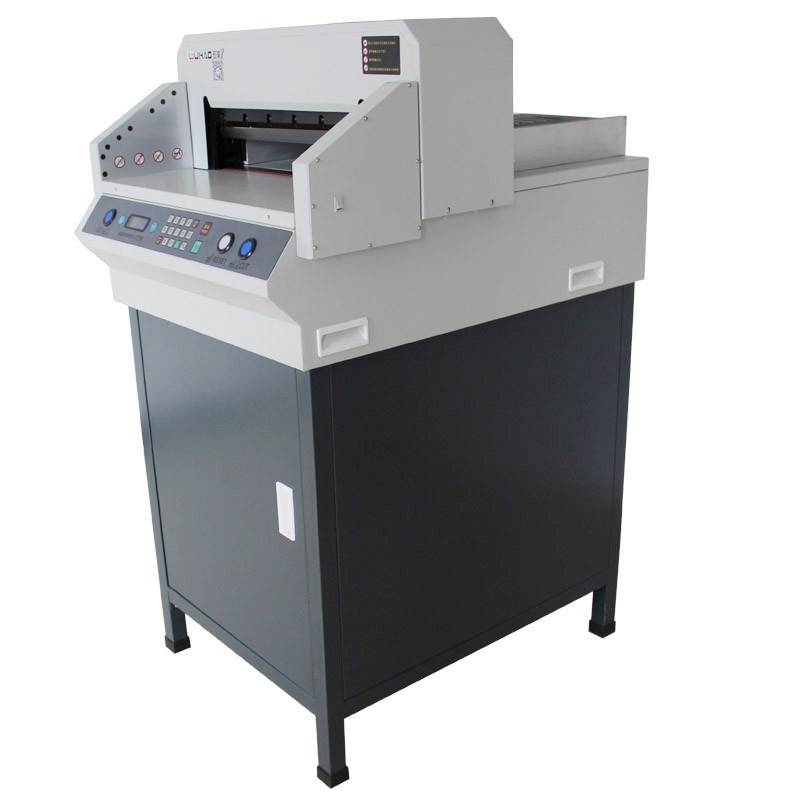

4660 electric paper cutting machine
|
|
|
|
Model name
|
DSO-4660
|
|
|
Max cutting width
|
460mm
|
|
|
Max cutting thickness
|
60mm
|
|
|
Precision
|
±0.3mm
|
|
|
Inclined cutting
|
Yes
|
|
|
Push paper
|
Automatic
|
|
|
Clamp paper
|
Automatic
|
|
|
Blade materials
|
Steel
|
|
|
Classification
|
Single blade cutter
|
|
|
Safety
|
IR Bar
|
|
|
Size
|
935mm*620mm*1235mm
|
|
|
Gross weight
|
150kgs
|
|
|
Net weight
|
120kgs
|
|
|
Power
|
220V/50Hz 750W
|
|
Main Feature
1.Optimized instruction design, precisely processed, stable;
2.Performance and sturdy for long use;
3.Adopt new high-tech integrate circuit LCD control to guarantee the high efficient work'
4.There is digital display indicates the size before cutting and after cutting, and there is infrared
5.Light indicate the cutting position;
6.High precision on paper control design to combine mechanism and power.
7.With the switch in bottom style, double hand's catenation fixing, the function of replacing automatically, the machine is
absolutely guaranteed safe;
8.Adopt high speed steel blade, it is sharp and endure.
1.Optimized instruction design, precisely processed, stable;
2.Performance and sturdy for long use;
3.Adopt new high-tech integrate circuit LCD control to guarantee the high efficient work'
4.There is digital display indicates the size before cutting and after cutting, and there is infrared
5.Light indicate the cutting position;
6.High precision on paper control design to combine mechanism and power.
7.With the switch in bottom style, double hand's catenation fixing, the function of replacing automatically, the machine is
absolutely guaranteed safe;
8.Adopt high speed steel blade, it is sharp and endure.
|
Model
|
DSO-320v+
|
DSO-450v+
|
DSO-4606Z
|
||
|
Cut size
|
320*320mm
|
450*450mm
|
460*460mm
|
||
|
Cut thickness
|
35mm
|
40mm
|
|
||
|
Precision
|
0.5mm
|
|
0.3mm
|
||
|
Push paper
|
Manual
|
|
|
||
|
Pressing paper
|
Automatic
|
|
|
||
|
Safty
|
Metal cover
|
Infraed bar/plastic cover
|
Indraed bar
|
||
