Quick Details
-
Product name:
-
Wallbox EV charger
-
Output voltage:
-
AC 240V
-
Certificate:
-
CE certificied
-
Type:
-
Plug-In Charger
-
Warranty:
-
2 Years
-
charging Mode:
-
Auto Charge
-
Usage:
-
New energy car
-
Cable length:
-
5M(customizable)
-
Color:
-
Customized Color
-
connector:
-
Type1-2/GB/T
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AC-P
-
Brand Name:
-
ZHONGBIAO
-
Product name:
-
Wallbox EV charger
-
Output voltage:
-
AC 240V
-
Certificate:
-
CE certificied
-
Type:
-
Plug-In Charger
-
Warranty:
-
2 Years
-
charging Mode:
-
Auto Charge
-
Usage:
-
New energy car
-
Cable length:
-
5M(customizable)
-
Color:
-
Customized Color
-
connector:
-
Type1-2/GB/T
Product Description

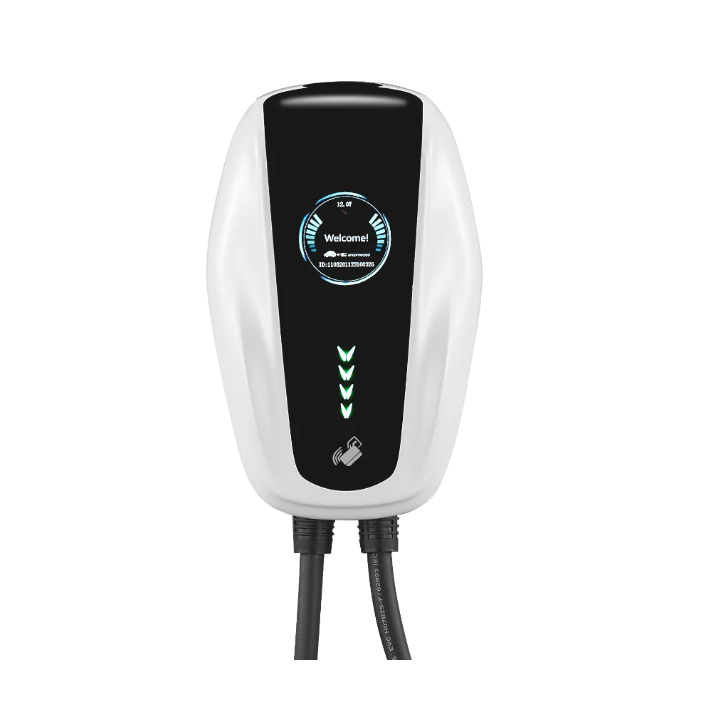

7Kw AC EV On-Board Charger
Specification
|
Streamer Series - Basic product parameters
|
|
|
|
|||
|
Product name
|
Mode 3 - Streamer series charging pile
|
Standard configuration
|
3.0-inch LCD display + water light board
|
|||
|
Operating temperature
|
25 ℃ - + 45 ℃
|
Function selection
|
Bluetooth /Wifi, swipe card, Ethernet, 4G and other functions optional
|
|||
|
Operating humidity
|
5% to 95% no condensation
|
Product net weight/gross weight
|
Net weight 3.6KG/ gross weight 4.2KG
|
|||
|
Class of protection
|
IP65
|
Charging case size
|
239*151.5*96mm
|
|||
|
Supporting standard
|
GB/T/TYPE1-2
|
Individual package size
|
350*300*173mm
|
|||
|
Streamer series - national standard parameters
|
|
|
|
|||
|
Argument
|
GB/T
|
TYPE2
|
TYPE1
|
|||
|
Operating voltage
|
175-265Vac
|
175-265Vac
|
175-265Vac
|
|||
|
Frequency
|
50Hz
|
50Hz
|
50Hz
|
|||
|
Maximum current
|
32A
|
32A
|
32A
|
|||
|
Maximum power
|
7kW
|
7kW
|
7kW
|
|||
|
Main board
|
AC7K04
|
AC7K04
|
AC7K04
|
|||
|
Power regulation
|
32A (Power can be customized)
|
32A (Power can be customized)
|
32A (Power can be customized)
|
|||
|
Uninsured type
|
Standard type A leakage protection
|
Standard type A leakage protection.Optional Type B leakage protection
|
Standard type A leakage protection.Optional Type B leakage protection
|
|||
|
Standard
|
GB/T 18487
|
EN62752
|
UL2331
|
|||
1. Ensure that the charging pile is correctly connected to the power supply 2.Insert the charging gun into the muzzle of thevehicle
3..Use the swipe card or APP applet to start 4.The vehicle is charged normally
5. Click the APP mini program or swipe the card to finish charging 6. Unplug the charging gun and put it back in place
Mode one
If a power distribution box is connected, connect the input cable connector L, N, and PE ends of the plug to the L, N, and PE ends of the circuit breaker respectively.
Mode Two
If connecting a connector, ensure that the two ends of the connection L, N, PE correspond to each other, and press the connection points with crimping pliers to ensure good contact.
