Quick Details
-
Dimension(L*W*H):
-
8932*6300*2205mm
-
Weight:
-
43000 KG
-
Marketing Type:
-
Hot Product
-
Mobility:
-
Star wheel
-
Product name:
-
Mining Roadheader
-
Main Technical Specification:
-
EBZ135
-
Cutting Motor Power:
-
135KW
-
Machine Weight:
-
44000KG
-
Hydraulic System Pressure:
-
≤18 MPa
-
Dimension (Length * Width * Height ):
-
8.92*2.8*1.53 m
-
Rotary speed of cutter head:
-
44 r/min
-
Rotary Speed of star wheel:
-
33 r/min
-
Grade Ability:
-
±18
-
Gantry Height:
-
400mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Evangel
-
Voltage:
-
135Kw
-
Dimension(L*W*H):
-
8932*6300*2205mm
-
Weight:
-
43000 KG
-
Marketing Type:
-
Hot Product
-
Mobility:
-
Star wheel
-
Product name:
-
Mining Roadheader
-
Main Technical Specification:
-
EBZ135
-
Cutting Motor Power:
-
135KW
-
Machine Weight:
-
44000KG
-
Hydraulic System Pressure:
-
≤18 MPa
-
Dimension (Length * Width * Height ):
-
8.92*2.8*1.53 m
-
Rotary speed of cutter head:
-
44 r/min
-
Rotary Speed of star wheel:
-
33 r/min
-
Grade Ability:
-
±18
-
Gantry Height:
-
400mm

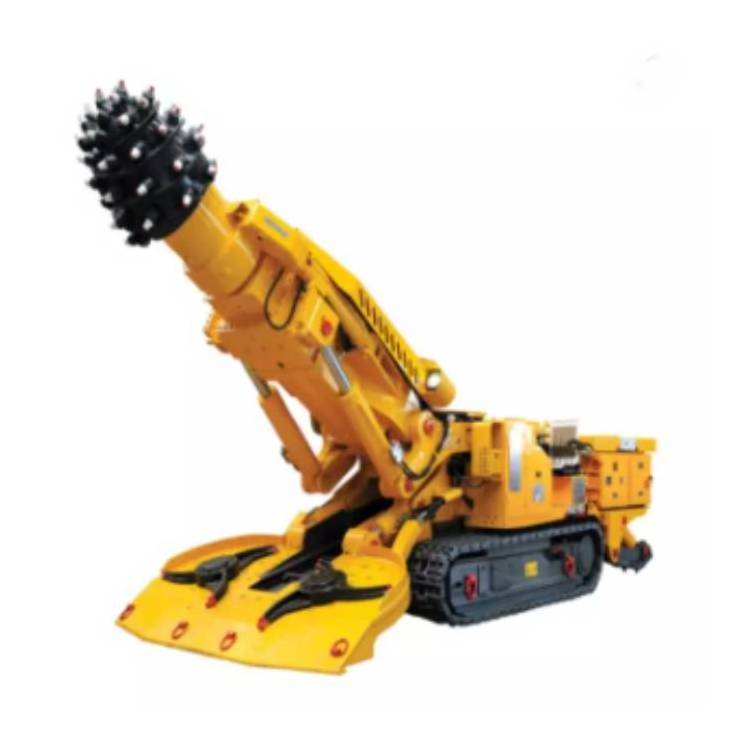

Chinese Mining Machinery Roadheader EBZ135
EBZ135 machine is mainly used for rocks with hardness ≤7, including coal roadway, semi-coal roadway and soft rock roadway and tunnel driving.And it can achieve continuous cutting,loading, transport operations.The maximum positioning cut surface can reach 20.5 square meters, climbing ability is plus-minus (±) 18°.
1. The whole body is short, the center of gravity is low, and the climbing ability is strong;
2. The cutting head adopts simulation technology to optimize the design, the pick arrangement is reasonable, and the cutting efficiency is high;
3. The first conveyor adopts a straight structure, which laps smoothly with the shovel plate and transports smoothly;
4. LCD Chinese characters dynamically display various parameters and timely fault diagnosis.
|
Main Technical Specification
|
EBZ135
|
|
Cutting Motor Power
|
135Kw
|
|
Oil Pump Motor Power
|
75Kw
|
|
Cutting Hardness
|
≤70MPa
|
|
Location Cutting Range
|
Height: 4 m
|
|
|
Width: 5.1 m
|
|
Machine Weight
|
38.8 T
|
|
Dimension (Length * Width * Height )
|
8.92*2.8*1.53 m
|
|
Rotary speed of cutter head
|
44 r/min
|
|
Rotary Speed of star wheel
|
33 r/min
|
|
Loading capacity
|
3.4 m³/min
|
|
Speed of 1st conveyor
|
40 m/min
|
|
Grade Ability
|
±18º
|
|
Gantry Height
|
400 mm
|
|
Hydraulic System Pressure
|
≤18 MPa
|
|
Hydraulic Oil Tank Capacity
|
500 L
|
|
Dinting Depth
|
0.2m
|
|
Supply Voltage
|
AC1140/660V
|
