- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WANT
-
Model Number:
-
WT
-
Pan size:
-
130mm or 160mm
-
Units:
-
g, oz, ct, lb, GN, etc.
-
Interface:
-
RS232 (optional)
-
More Functions:
-
Counting, last remember, %, full range tare, over-load protection etc.
-
Rechargeable Battery:
-
Optional
-
Certificate:
-
RoHS, ISO, SGS, CE, C-tick etc.
-
Warranty:
-
1 Year
-
Product name:
-

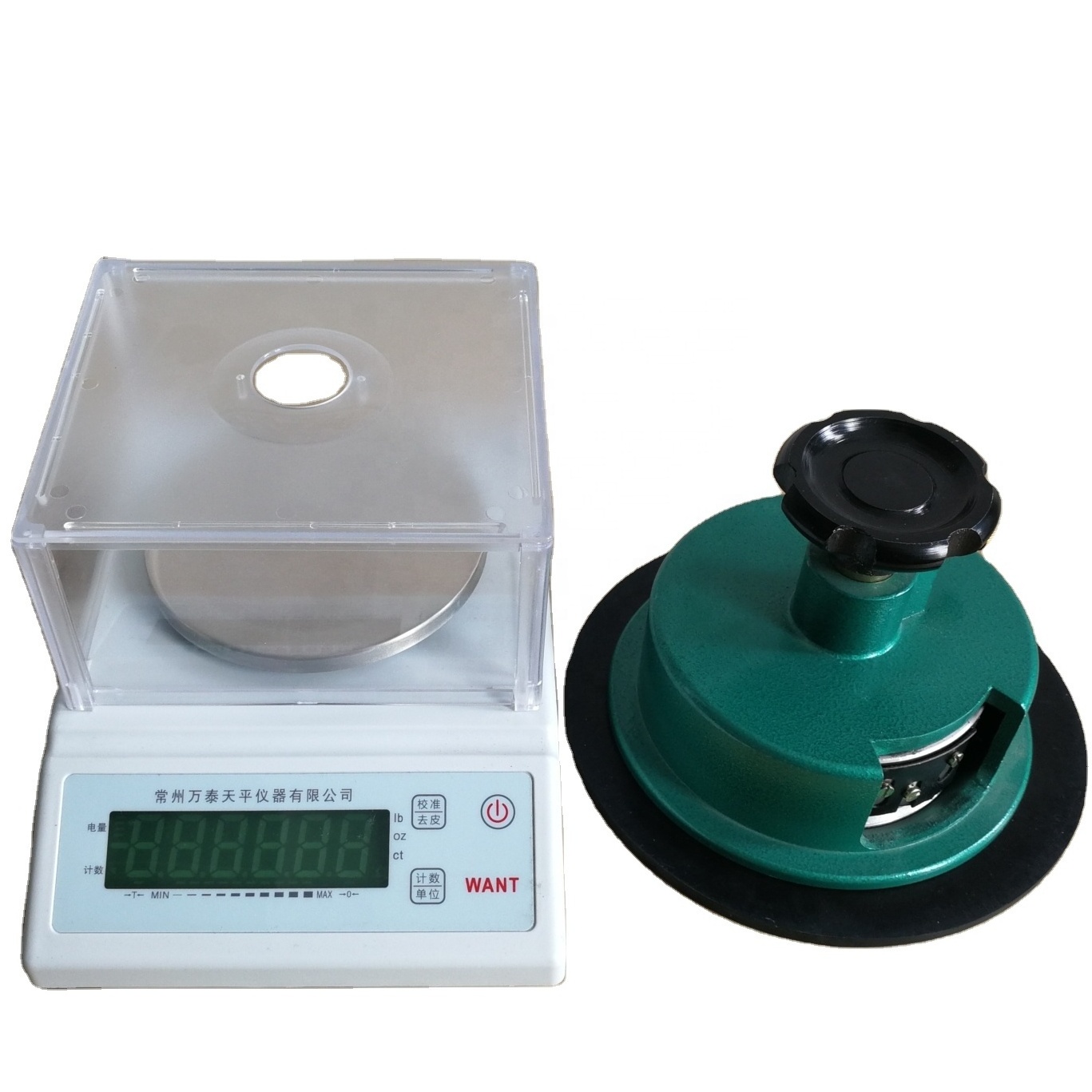

with sample circle cutter digital electronic fabric weighing GSM scale
Quick Details
-
Power Supply:
-
AC(220-240V 50HZ / 110-120V 60HZ)
-
Display Type:
-
LCD (white back-light)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WANT
-
Model Number:
-
WT
-
Pan size:
-
130mm or 160mm
-
Units:
-
g, oz, ct, lb, GN, etc.
-
Interface:
-
RS232 (optional)
-
More Functions:
-
Counting, last remember, %, full range tare, over-load protection etc.
-
Rechargeable Battery:
-
Optional
-
Certificate:
-
RoHS, ISO, SGS, CE, C-tick etc.
-
Warranty:
-
1 Year
-
Product name:
-
with sample circle cutter digital electronic fabric weighing GSM scale
Textile Circle Cutter/Sampler
three colors: blue, gray, green, Durable and Robust
Net Weight: 2kg/pc
Color: gray, blue, green
Attachments: Cutter, rubber mat
Diameter: 100 CM2
packing: 12 pcs/carton (57×39×35cm)
Gross Weight: 25kg
three colors: blue, gray, green, Durable and Robust
Net Weight: 2kg/pc
Color: gray, blue, green
Attachments: Cutter, rubber mat
Diameter: 100 CM2
packing: 12 pcs/carton (57×39×35cm)
Gross Weight: 25kg
|
WT2002K
|
200g/0.01g
|
45usd/pc
|
|
Textile Circle Cutter/Sampler
|
|
30usd/pc
|
|
|
|
|
|
|
|
|
Product Description
Operation Manual of Textile Circle Cutter/Sampler
1. Purpose:
A kind of circular sampler which is used to cut and get sample
from various of wool, cotton, fiber, knitting and so on.
2. How to use:
3.1- Putting sample to be cut on rubber matting, then put sampler on the sample,too. Taking the locking device out, and turning
around about 90º. One hand controls the sampler, and the other hand holds the handwheel, pressing and rotating the handwheel
clockwise. (Rotation> 90º)
3.2- Taking the locking device back. Do not let blades outside in order to avoid cutting your hands or something else.
3. Structure and Adjustment:
4.1-There are four blades, you can replace new blades as you wish. Our blades are ordinary razor blades.
Operations: Loosening all cross screws, removing the pressure plate and blade carefully, fixing new blades and tightening screws
again.
Please note: Making sure to keep these four blades in the same level.
4.2-There are many snicks on the bottom of sampler to avoid skidding and cut easily.
4. Notes:
5.1- Be careful,blades are very sharp. Do not put your hands under sampler
5.2- Please using sampler on rubber matting. If not, cleaning it and putting back it in the box.
5.3- After a period of using, if the blade is blunt, please fix new blade as above 4.1 item. You can buy blades in any store
easily.
1. Purpose:
A kind of circular sampler which is used to cut and get sample
from various of wool, cotton, fiber, knitting and so on.
2. How to use:
3.1- Putting sample to be cut on rubber matting, then put sampler on the sample,too. Taking the locking device out, and turning
around about 90º. One hand controls the sampler, and the other hand holds the handwheel, pressing and rotating the handwheel
clockwise. (Rotation> 90º)
3.2- Taking the locking device back. Do not let blades outside in order to avoid cutting your hands or something else.
3. Structure and Adjustment:
4.1-There are four blades, you can replace new blades as you wish. Our blades are ordinary razor blades.
Operations: Loosening all cross screws, removing the pressure plate and blade carefully, fixing new blades and tightening screws
again.
Please note: Making sure to keep these four blades in the same level.
4.2-There are many snicks on the bottom of sampler to avoid skidding and cut easily.
4. Notes:
5.1- Be careful,blades are very sharp. Do not put your hands under sampler
5.2- Please using sampler on rubber matting. If not, cleaning it and putting back it in the box.
5.3- After a period of using, if the blade is blunt, please fix new blade as above 4.1 item. You can buy blades in any store
easily.
