Quick Details
-
Brand Name:
-
X-Link
-
Use:
-
FTTX, FTTX
-
Warranty Time:
-
1YEAR
-
Blade life:
-
36,000 cleaves
-
Bare fiber diameter:
-
0.25mm~0.9mm
-
Cleaved angle:
-
≤0.5°
-
Cleave ribbon Fiber Length:
-
10-16mm
-
Outercoat diameter:
-
125um
-
Dimension:
-
63 x 76 x 63mm
-
Weight:
-
450g
Quick Details
-
Type:
-
Testers &Tools
-
Model Number:
-
FC-08B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
X-Link
-
Use:
-
FTTX, FTTX
-
Warranty Time:
-
1YEAR
-
Blade life:
-
36,000 cleaves
-
Bare fiber diameter:
-
0.25mm~0.9mm
-
Cleaved angle:
-
≤0.5°
-
Cleave ribbon Fiber Length:
-
10-16mm
-
Outercoat diameter:
-
125um
-
Dimension:
-
63 x 76 x 63mm
-
Weight:
-
450g
Product Description
|

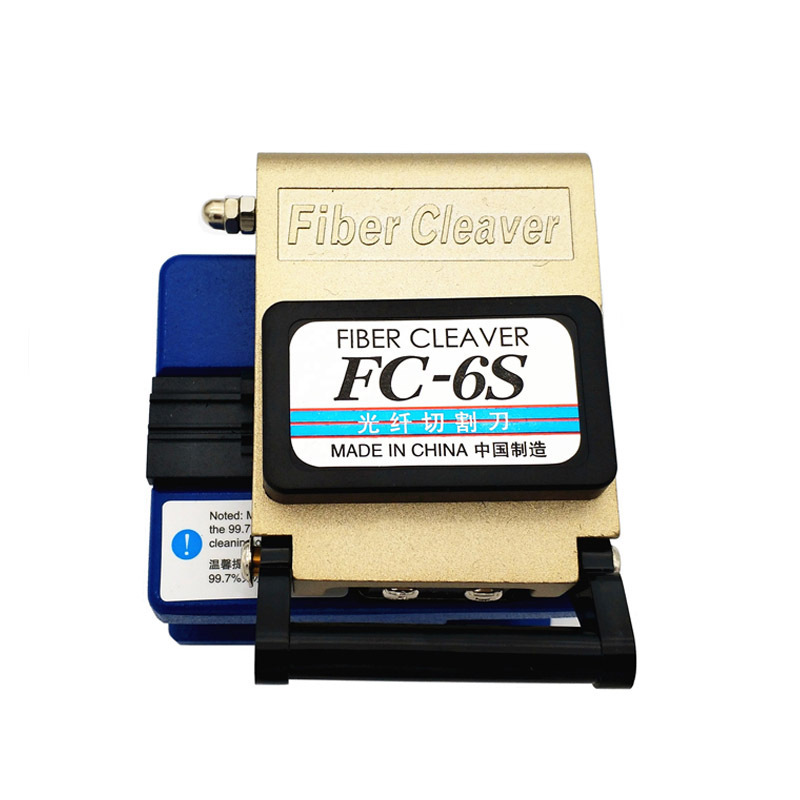

Fiber Optical Fiber Cleaver Precision Cleaver Electric Cutting Tool Cleaver FC6S
|
|
|
|
|||
This high precision cleaver is designed for field use alongside the splicing units. By using a rotating blade for multiple scoring
positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust
and field serviceable and has options such as tripod mount to enable secure platform mounting. Integral to the unit is a cleave
length scale which helps facilitate exact lengths during cleaving.
positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust
and field serviceable and has options such as tripod mount to enable secure platform mounting. Integral to the unit is a cleave
length scale which helps facilitate exact lengths during cleaving.
Specifications:
* Used for Single Fiber Cleaving
* Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency
* Prevents Double Scoring of the Fibers
* Has Superior Blade Height and Rotational Adjustment
* Precision Blade features 3-edges 1,000 fibers 12 blade positions with 2,000 cleavers per position
* Can Be Operated With Minimal Steps
|
Bare fiber diameter
|
0.25mm~0.9mm
|
|
Outercoat diameter
|
125µm
|
|
Fiber type
|
Single tube fiber and Ribbon fiber(exchangeable)
|
|
Cleaved length
|
9~16mm(φ0.25) 10~16(φ0.9)
|
|
Cleaved angle
|
≤0.5°
|
|
Blade life
|
36,000 cleaves
|
|
Mode
|
Semiautomatic
|
|
Dimension
|
63mm(W)*76mm(D)*63mm(H)
|
|
Weight
|
450
|
