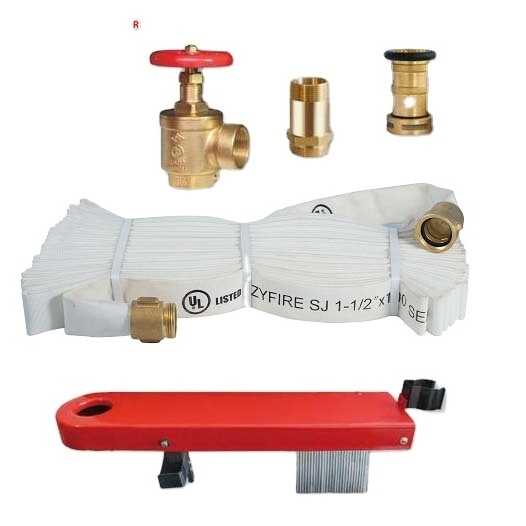

ZYfire UL FM Complete Pin Rack Assembly Single Jacket TPU Lining Fire Hose Pack With Brass Nipple Nozzle Valve

ZYfire UL FM Complete Pin Rack Assembly Single Jacket TPU Lining Fire Hose Pack With Brass Nipple Nozzle Valve

FOB Reference Price: Get Latest Price

≥1000 Meters

US $2.2

≥2000 Meters

US $2

≥3000 Meters

US $1.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: ZYfire UL FM Complete Rack Assembly Single Jacket TPU Lining Fire Hose

Material:: TPU

Color:: white,red,yellow

Application:: Fire Fighting Emergency Rescue

Lining:: Polyurethanes (TPU) tube

Jacket:: 100% Virgin Polyester Jacket

Package:: Carton or Pallet

Standard:: UL, ULC, FM

Length:: 15m (50ft), 20m (66ft), 25m (82ft), 30m (100ft)

Size:: 1''/1.5''/2''/2.5''/3''/4''

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: ZYfire

Model Number:: Sintack-U

Product name:: ZYfire UL FM Complete Rack Assembly Single Jacket TPU Lining Fire Hose

Material:: TPU

Color:: white,red,yellow

Application:: Fire Fighting Emergency Rescue

Lining:: Polyurethanes (TPU) tube

Jacket:: 100% Virgin Polyester Jacket

Package:: Carton or Pallet

Standard:: UL, ULC, FM

Length:: 15m (50ft), 20m (66ft), 25m (82ft), 30m (100ft)

Size:: 1''/1.5''/2''/2.5''/3''/4''

Sintack-U (Rack-U)

Jacket : 100% virgin polyester jacket, single jacket, twill or plain weave.

Lining : polyurethene (TPU) tube.

Application : Rack hose, cabinet hose, premium solution.

Standard length : 15m (50ft), 20m (66ft), 25m (82ft), 30m (100ft).

Certificate : UL, ULC, FM

I.D.			Service Pressure	minimum Burst Pressure
inch	mm	psi/bar	psi/bar
1 1/2"	40	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
1 3/4"	45	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
2"	50	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
2 1/2"	65	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
2 3/4"	70	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
3"	75	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
4"	102	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
6"	152	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

At present, We have a production area of 150,000 square meters, 200 production lines, there are more than 300 employees in our company, including 100 staff members of college education background and 12 staff members of senior engineer titles. We have branch company and warehouse in the USA.

ZYfire products are welcomed in the USA, Canada, European countries, Australia, South America, South East Asia, etc. more than 80 countries and regions. ZYfire hoses are approved by UL, FM, BS6391, LR, MED, EN14540, EN694, EN671, NSF61, NFPA, CCC, CCS, CE, MSHA, DIN14811, ZYfire has passed the ISO 9001, ISO14001, ISO18001, API certification.
