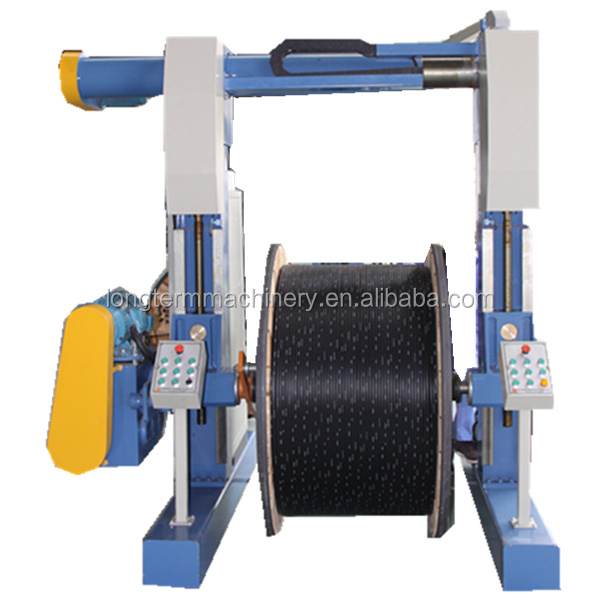

Automatic Dual Take-Up Machine, High Quality Wire & Cable Take Up Machine%
Application
Mainly act as P/O & T/U on CCT/VCV & Rubber CCV production line.
B. Frame is rectangular pipe welded into A-shape structure. It is stable with strong bearing capacity, neat and beautiful.
C. Hoisting guide-way is high-strength rolling guide pair (linear guide pair)
D. Take-up gearbox adopts hard tooth face gearbox with large transmission torque and low noise.
E. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products
- Take up main motor adopts frequency conversion, controller for Siemens or Danfoss products
F. Pay-off motor adopts frequency control motor, controller is Siemens or Danfoss product, winding traces take-up speed automatically. Winding pitch and take-up tension can be connected with various hosts.
Equipment structure
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
| Model | ALSP, ALF1250/2500 | ALSP,ALP1600/3150 | ALSP, ALF2000/4200 | ALSP,ALF3150/5000 |
| Applicable wire-coil specification | PN1250-PN2500 | PN1600-PN3150 | PN2000-PN4200 | PN3150-PN5000 |
| Applicable cable outer diameter (mm) | ≤120 | ≤160 | ≤160 | ≤180 |
| Applicable wire-coil diameter (mm) | 1250-2500 | 1600-3150 | 2000-4200 | 3150-5000 |
| Applicable wire-coil width (mm) | 950-1900 | 1180-2300 | 1500-2500 | 2300-2800 |
| Take-up speed (mm/min) | ≤80 | ≤50 | ≤35 | ≤30 |
| Winding precision (%) | 1-2 | 1-2 | 1-2 | 1-2 |
| Loading capacity (T) | 15 | 20 | 30 | 55 |
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
B.Technical parameter
| Type & Size | Screw Dia. (mm) | L/D ratio | Screw speed (rpm) | Main motor (kw) | Barrel heating power (kw) | Temp. contr. zones (body/cross head) | Max. output capacity (PVC) (kg/h) |
| SJ30X25 | 20 | 25:1 | 5-150 | 11 | 3.6 | 3/2 | 20 |
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 9 | 3/2 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 16 | 4/4 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 30 | 4/4 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 54 | 6/4 | 580 |
| SJ150X25 | 150 | 25:1 | 6-60 | 185 | 88 | 6/4 | 880 |
| SJ200X25 | 200 | 25:1 | 4-40 | 250 | 140 | 7/4 | 1100 |
Mainly used for various cable production lines for single machine or front and rear double traction.
