- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Standard or Nonstandard:
-
Standard
-
materials:
-
stainless steel
-
Motor:
-
100% Copper Wire
-
Color:
-
Customer Specifications
-
Certificate:
-
ISO and CE
-
Voltage:
-
220v/50hz...)
-
Impeller:
-
Stainless Steel 304or 316
-
Fuel:
-
booster water
Quick Details
-
Application:
-
Commercial Buildings, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Warranty:
-
one year, 1 Year
-
Brand Name:
-
OEM
-
Place of Origin:
-
China
-
Standard or Nonstandard:
-
Standard
-
materials:
-
stainless steel
-
Motor:
-
100% Copper Wire
-
Color:
-
Customer Specifications
-
Certificate:
-
ISO and CE
-
Voltage:
-
220v/50hz...)
-
Impeller:
-
Stainless Steel 304or 316
-
Fuel:
-
booster water

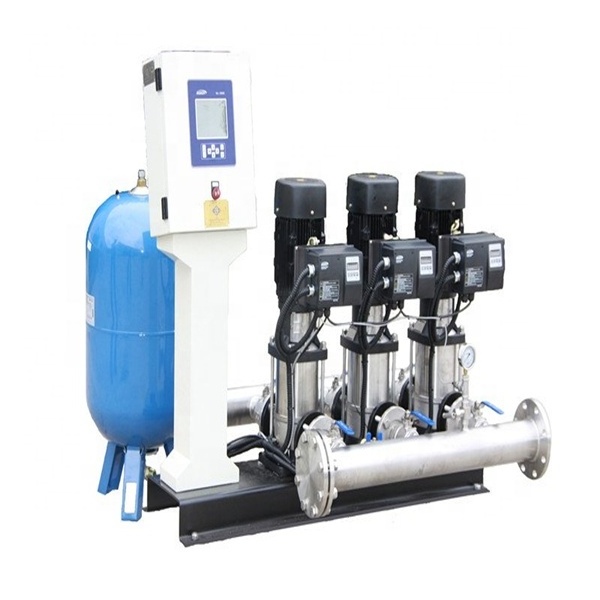

CDLF Stainless steel centrifugal pump / stainless steel pump special in high pressure, all parts touch with liquid are of stainless steel.
Applications:
Water treatment and RO system
Water transfer and booster
Industrial washing and conveying
Electric motor:
· TEFC motor, IEC standard
· Aluminum casing, 50HZ or 60HZ, Single phase or 3-phase.
· Protection class: IP55, Insulation class: F
50HZ Pump Performance Scope
|
Model |
CDLF2 |
CDLF4 |
CDLF8 |
CDLF12 |
CDLF16 |
CDLF20 |
CDLF32 |
CDLF42 |
CDLF65 |
CDLF120 |
CDLF150 |
|
Rated flow[m3/h] |
2 |
4 |
8 |
12 |
16 |
20 |
32 |
42 |
65 |
120 |
150 |
|
Flow range[m3/h] |
1-3.5 |
1.5-8 |
5-12 |
7-16 |
8-22 |
10-28 |
16-40 |
25-55 |
30-80 |
60-150 |
80-180 |
|
Max.Pressure[bar] |
23 |
22 |
21 |
22 |
22 |
23 |
26 |
30 |
22 |
16 |
16 |
|
Motor power[Kw] |
0.37-3 |
0.37-4 |
0.75-7.5 |
1.5-11 |
2.2-15 |
1.1-18.5 |
1.5-30 |
3-45 |
4-45 |
11-75 |
11-75 |
|
Head range[m] |
8-231 |
6-209 |
13-201 |
14-217 |
16-222 |
6-234 |
4-255 |
11-305 |
8-215 |
15-162.5 |
8.5-157 |
|
Temperature range[°C] |
-15 -+120 |
||||||||||
|
Max.Efficiency[%] |
46 |
59 |
64 |
63 |
66 |
69 |
76 |
78 |
80 |
74 |
73 |
Package: Plywood case and foam
Delivery time: About 7 days after receiving your payment
