9 steps

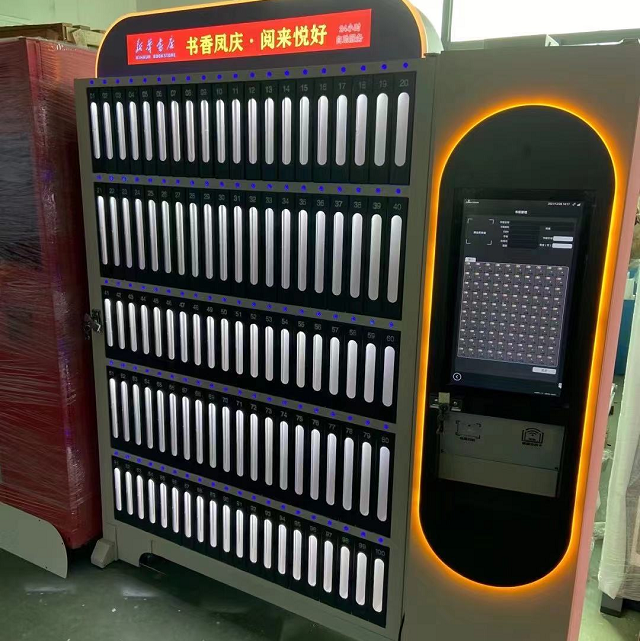

Contactless smart lockers book vending machines
have single cabinet double cabinets even multi cabinets designs. capacity max 240pcs grids, 240 kinds of commodities can be vending in combined cabinets locker vending machine. customers can choose keyboard operation or touch screen operation. touch screen support 10inch to 65inch option, 15. 6inch is normal for locker vending machines, our payment system support 100 countries and areas in the world, card reader supports credit card, visa, master, token,RFID card, club member card and NFC function. bill acceptor with coin change or bill change two solutions option. coin acceptor solution is used for cheap commodities vending. our locker grid vending machines also support cooling or heating function option for various application. our compressor solutions include three range:0-15 degrees for fresh foods. 0- -15 for soft frozen foods,-18- - 25 degrees for hard frozen foods. we made a customized combined cabinets vending machine for a Russia courier company, the machine is combined by one vending machine with 55 inch touch screen, and another part is a courier locker machine, 55 inch touch screen controls two machines. the combined machine has two thermal printers and one IP camera. the combined vending machines are used in Russia Post office. Clients are very satisfied with our vending machines and our service. the locker grid vending machines function below: customers press store button on 55inch touch screen, one of the grids open and a sticker paper printed. customers put the parcel in the grid and close the grid, then a ticket paper printed. the owners can use password to open all the grids. and customers can open the gird by scan the second ticket QR code. locker vending machines for bottle water or fresh flowers is also very popular. the doors can be transparent and lighting inside.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
120-200W
-
Product name:
-
book vending machine
-
Payment System:
-
cash and cashless system option
-
Color:
-
customized wrap
-
Application:
-
9Steps android app
-
Capacity:
-
300-540pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
360kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Quick Details
-
Type:
-
Vending Machines
-
Dimension:
-
L1250*W820*H1935mm
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Warranty:
-
3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
9Steps
-
Power:
-
120-200W
-
Product name:
-
book vending machine
-
Payment System:
-
cash and cashless system option
-
Color:
-
customized wrap
-
Application:
-
9Steps android app
-
Capacity:
-
300-540pcs
-
Certificate:
-
CE FCC ROHS ISO
-
Weight:
-
360kg
-
Touch screen:
-
21.5inch capacitive
-
Cooling system:
-
R134a MSDS refrigeration option
-
Dispenses:
-
smart elevator option
Product Description
|
Product Name
|
Contactless smart lockers book vending machine
|
|
|
|
Material
|
21.5-55inch touch screen + locker metal case+transparent doors/metal doors+cash machine/cashless machine/refrigeration options
|
|
|
|
Package
|
exporting wooden case with pallet,package size 1350*910*2100mm,275kg/pc
|
|
|
|
General Specification
|
Motherboard
|
Android RK3288
|
|
|
|
RAM
|
2G
|
|
|
|
Storage Memory
|
8G
|
|
|
General Specification
|
OS
|
Android /7.1
|
|
|
|
Network
|
Gigabit Network
|
|
|
|
Lane
|
Standard 6 rows * 9columns, 54*10 cargo lanes (adjustable)
|
|
|
|
Slot Capacity
|
About 210pcs-540pcs（adjustable）
|
|
|
|
Payment Method
|
ICT banknotes cash accpeter+ card pos with NFC fucntion
|
|
|
|
Subassembly
|
Cash accepter with bill change fucntion
|
|
|
|
Optional
|
1. Temperature control system: high-efficiency and energy-saving compressor, support timing switch, free control of temperature
2. Printer (optional) 3. Coins and cash modules (optional) 4. Scanner (optional) |
|
|
Panel Specification
|
Screen
|
21.5 Inch IR touch screen
|
|
|
|
Screen type
|
TFT-LCD
|
|
|
|
Backlight Type
|
WLED
|
|
|
|
Visual Size
|
477mm*269mm（H*V）
|
|
|
|
Resolution
|
1920*1080
|
|
|
|
Contrast
|
3000:1
|
|
|
|
Perspective
|
H:178°, V:178°
|
|
|
|
Brightness
|
250nits（Non touch），225nits（Touch）
|
|
|
|
Touch Technology
|
Capacitance Touch
|
|
|
|
Touch Points
|
10 Points
|
|
|
|
Operating Voltage
|
DC 5v
|
|
|
|
Operating Temperature
|
0°C ~ 40°C, 20% ~ 80% RH.
|
|
|
|
Storage Temperature
|
-20°C~ 60°C, 10% ~ 95% RH
|
|
|
|
Interface Type
|
VGA , HDMI，USB，LAN
|
|
|
|
Processor
|
RK3288 Quad Corel.8G
|
|
|
|
Chipset
|
HZ cortex-A17
|
|
|
|
Extension Interface
|
Support TF Card expansion
|
|
|
|
Display
|
GPU Mail-T764
|
|
|
|
Memory Type
|
Built-in EMMC，Max 64GB Optional
|
|
|
|
USB Interface
|
2*USB HOST,4*USB Port
|
|
|
|
Output
|
HDMI Output ,EDP Output, LVDS Output, Audio Output
|
|
|
|
Timer Switch
|
Support
|
|
|
|
RTC Clock
|
Support
|
|
|
|
Printers
|
Support
|
|
|
|
Scanner
|
Support
|
|
|
|
Camera
|
Support
|
|
|
|
Others
|
USB or MDB port
|
|
Details Images
9 steps professional vending machine app for management and control,five years free,another five years 60usd/pc
customized trays and slots for different products inside
high quality products and professional service is 9 steps 16 years style
Packing&Shipping
exporting wooden case with pallet for LCL containers or by air by courier,exporting carton with pallet for FCL containers by sea
FAQ
Do you support customized design/size/functions/wrap? YES
