<1>High-shear emulsifying tank + Plate heat exchanger
<2>Mixing tank
<3>UHT sterilizer + homogenizer machine + Buffer tank
<4>Hot water system + Hot water tank
<5>CIP cleaning system
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
HIGH
-
Voltage:
-
380V/ or by customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
V PACK
-
Dimension(L*W*H):
-
3350*2150*2100 mm
-
Weight:
-
3500 KG
-
Usage:
-
Beverage Filling Packaging
-
Key words:
-
Automatic Beverage Filling Canning Machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Advantage:
-
Automatic Working
-
Suitable for:
-
100-900ml Cans
-
Bottle type:
-
Aluminum Cans
-
Feature:
-
High Efficiency
-
Power:
-
3.5-7.5KW
-
Marketing Type:
-
New Product 2022
Quick Details
-
Machinery Capacity:
-
Other, 90 CPH, 150 CPH, 200 CPH, 300CPH
-
Packaging Material:
-
Plastic, Other
-
Filling Material:
-
Beer, Other, Juice
-
Filling Accuracy:
-
HIGH
-
Voltage:
-
380V/ or by customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
V PACK
-
Dimension(L*W*H):
-
3350*2150*2100 mm
-
Weight:
-
3500 KG
-
Usage:
-
Beverage Filling Packaging
-
Key words:
-
Automatic Beverage Filling Canning Machine
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Advantage:
-
Automatic Working
-
Suitable for:
-
100-900ml Cans
-
Bottle type:
-
Aluminum Cans
-
Feature:
-
High Efficiency
-
Power:
-
3.5-7.5KW
-
Marketing Type:
-
New Product 2022
Products Introduce
Main Machine in Can juice/csd drink filling packing production plant/ line.
1.Preparing System
2.Water Treatment Syatem
3.Empty can unloading machine
4.Slide - type empty tank spray washer

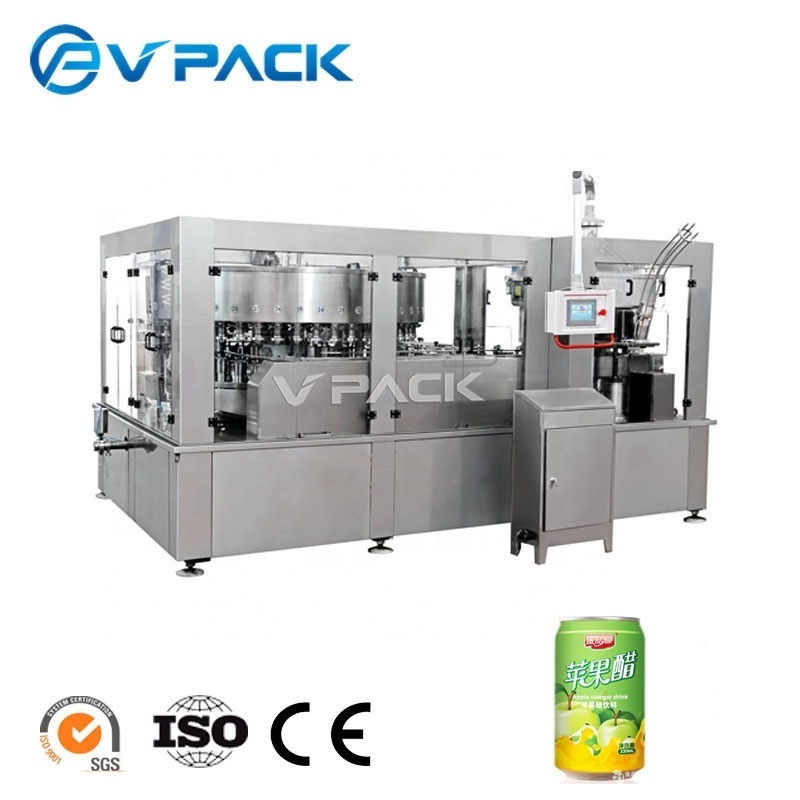

5.Can juice/csd drink filling sealing 2 in 1 monoblock
6.Spray sterilizing chiller (including local control cabinet and electrical control device)
7.Wrapping machine
2.Water Treatment Syatem
3.Empty can unloading machine
4.Slide - type empty tank spray washer
5.Can juice/csd drink filling sealing 2 in 1 monoblock
6.Spray sterilizing chiller (including local control cabinet and electrical control device)
7.Wrapping machine
Main Technical Parameter
|
Model
|
Capacity
|
Overall dimensions
|
Filling heads
|
Sealing heads
|
Power
|
Weight
|
|
DGD1204
|
90 cans/min
|
3350*2150*2100 mm
|
12
|
4
|
3.5 kw
|
3500 kg
|
|
DGD2004
|
150 cans/min
|
3400*1950*1900 mm
|
20
|
4
|
5.5 kw
|
4000 kg
|
|
DGD2404
|
200 cans/min
|
3350*2150*2100 mm
|
24
|
4
|
5.5 kw
|
5300 kg
|
|
DGD3006
|
300 cans/min
|
3488*2288*2168 mm
|
30
|
6
|
7.5 kw
|
8000 kg
|
Machine Details Images
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .
capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ,Defective rate ≤0.2% .
Flat conveyor.
Flat conveyor.
<1>Energy saving. High efficient. Adapt to customer factory layout
<2>Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine
<1>Energy saving. High efficient. Adapt to customer factory layout
<2>Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine
Engineering Drawing Service
Our Machine Video
Auxiliary Equipment
Nitrogen dosing machine
Nitrogen injection machine design for Aluminium can and PET bottle(low weight preform).
This liquid nitrogen injection system adopts the heat insulation like rocket and human-machine interface. Precisely injection.
This liquid nitrogen injection system adopts the heat insulation like rocket and human-machine interface. Precisely injection.
Filling liquid level detector
The principle that the intensity of rays varies with the position
of the material surface to control the capacity of liquid material to be tested and filled because of its non-contact measurement.It solves the problem that the conventional weighing
method can not measure the volume of liquid material on production ine.
of the material surface to control the capacity of liquid material to be tested and filled because of its non-contact measurement.It solves the problem that the conventional weighing
method can not measure the volume of liquid material on production ine.
Water treatment system
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Empty can unloading machine.
This machine is based on the introduction of foreign advanced technology, combined with the new products developed after years of
production experience.
This machine design science is reasonable, modelling is beautiful.
Convenient operation and maintenance, high degree of automation.
This machine is mainly used in the unloading process of the can.
production experience.
This machine design science is reasonable, modelling is beautiful.
Convenient operation and maintenance, high degree of automation.
This machine is mainly used in the unloading process of the can.
Slide - type empty tank spray washer.
1/Scope of application: water spraying and drying on the slope of the tin can.
2/water spraying box made by stainless steel structure.
3/the built-in ￠32 mm stainless steel spray pipe, divide into two segments, hot and cold water tank temperature higher than 85
degrees.
4/tank cage, by ￠article 8 mm stainless steel.
5/the support frame is composed of 50mm x 50mm x 2mm stainless steel square pipe.
2/water spraying box made by stainless steel structure.
3/the built-in ￠32 mm stainless steel spray pipe, divide into two segments, hot and cold water tank temperature higher than 85
degrees.
4/tank cage, by ￠article 8 mm stainless steel.
5/the support frame is composed of 50mm x 50mm x 2mm stainless steel square pipe.
Spray sterilizing chille.
including local control cabinet and electrical control device
1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and
observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small w ear
1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and
observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small w ear
Bottle packaging machine.
1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable
element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished
product.
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable
element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished
product.
