Quick Details
-
Brand Name:
-
TOP TESTER
-
Model Number:
-
TP-4294X
-
Measuring range of sulfur:
-
7ppm~5%
-
Sample size:
-
2~3ml (equivalent to sample depth 3mm~4mm)
-
Measuring time:
-
30, 60, 90, 120, 150 seconds, arbitrarily set
-
Working Temperature:
-
5~35℃
-
Working Relative humidity:
-
≤85% (30℃)
-
Power supply:
-
AC220V±20V, 50Hz
-
Rated power:
-
30W
-
Dimensions and weight:
-
430mm*250mm*240mm; 10kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
TOP TESTER
-
Model Number:
-
TP-4294X
-
Measuring range of sulfur:
-
7ppm~5%
-
Sample size:
-
2~3ml (equivalent to sample depth 3mm~4mm)
-
Measuring time:
-
30, 60, 90, 120, 150 seconds, arbitrarily set
-
Working Temperature:
-
5~35℃
-
Working Relative humidity:
-
≤85% (30℃)
-
Power supply:
-
AC220V±20V, 50Hz
-
Rated power:
-
30W
-
Dimensions and weight:
-
430mm*250mm*240mm; 10kg

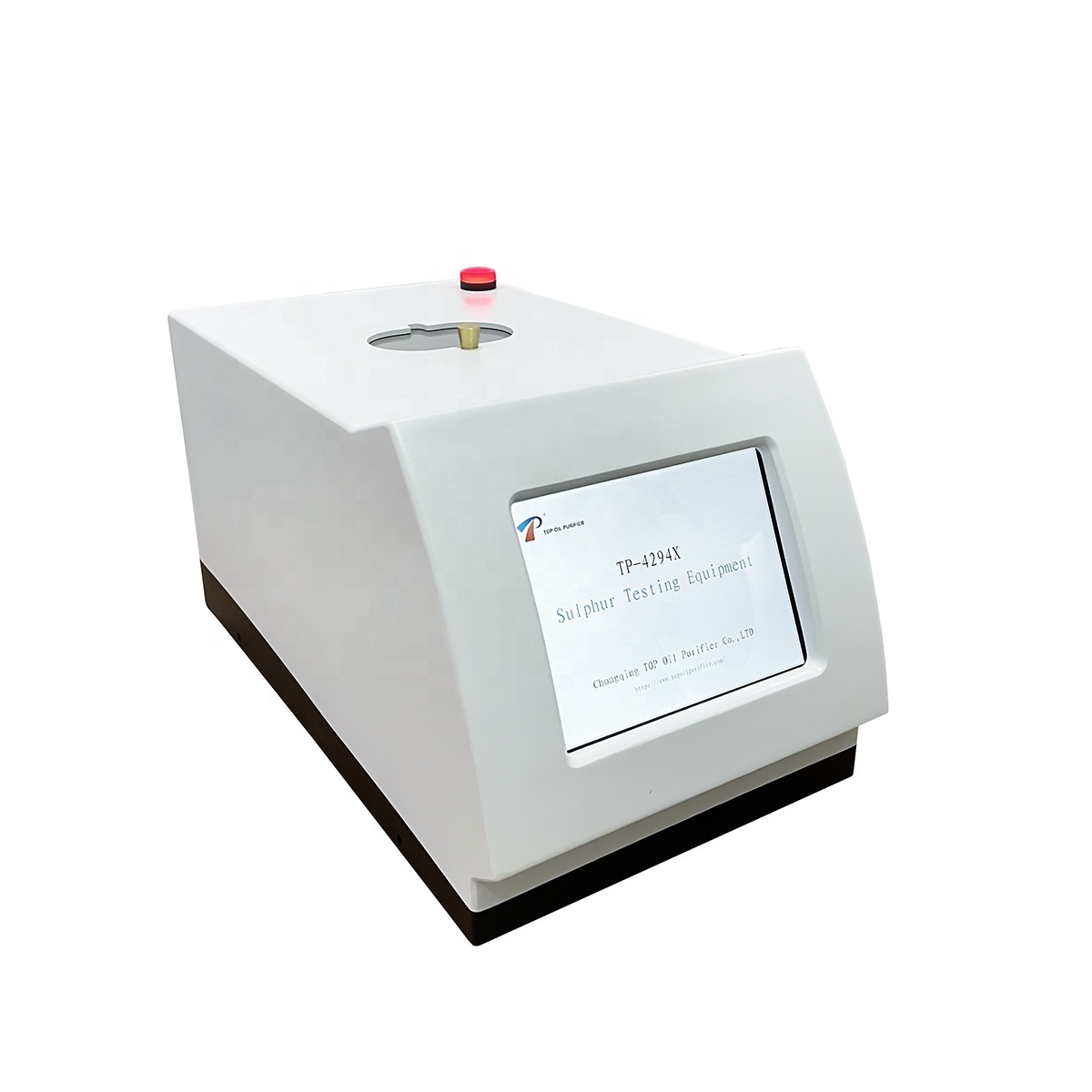

X Fluorescence Oil Sulfur Analyzer TP-4294X
X fluorescence oil sulfur analyzer is a special X fluorescence analyzer developed and manufactured to meet the needs of sulfur content detection in oil products. It adopts the principle of energy dispersion, a microcomputerized design of electromechanical integration, and the analysis is fast and accurate. Its repeatability and reproducibility are in line with the relevant requirements of the national standards GB/T 17040 and GB 11140, and it also fully meets the requirements of the more stringent American National Standard D 4294-03, which is the sulfur content in the crude oil or petrochemical production process. Detection provides an important means. The instrument itself is green and environmentally friendly, and its price is only a fraction of that of imported instruments.
2. Adopt electromechanical integrated microcomputer design, liquid crystal display, operation interface man-machine dialogue, automatic diagnosis function, judging the working status and electrical parameters of the instrument, automatic correction of temperature and air pressure, and the ratio of carbon to hydrogen (C/H) can also be corrected.
3. The disposable Mylar membrane sample cup is used to avoid cross-contamination.
4. The instrument has a standard serial communication RS-232C interface, which can realize communication with a computer.
5. Safe X-ray protection measures have been strictly tested by the Shanghai Institute of Preventive Medicine, and there will be no X-ray electric radiation damage to individuals and groups.
6. National exempt products.
7. The biggest feature of this instrument is: the minimum test index is 7ppm, it is equipped with 12 calibration (calibration) samples, different curves are automatically selected according to different oil samples, and it is equipped with reliable airtight X-ray radiation protection measures.
|
Measuring range of sulfur
|
7ppm～5%
|
|
Precision
|
a Repeatability (r): <0.02894 (X+0.1691); b Reproducibility (R): <0.01215 (X+0.05555);
|
|
Sample size
|
2～3ml (equivalent to sample depth 3mm～4mm);
|
|
Measuring time
|
30, 60, 90, 120, 150 seconds, arbitrarily set
|
|
Working conditions
|
emperature: 5～35℃; Relative humidity: ≤85% (30℃); Power supply: AC220V±20V, 50Hz; Rated power: 30W;
|
|
Dimensions and weight
|
430mm×250mm×240mm; 10kg
|
1.
1.Fully Automatic Karl Fischer Water Content Tester
TP-2100
2.
Digital Karl Fischer Water Content Tester TP-6A
3.
Kinematic Viscosity Tester VST-2000
4.
Kinematic Viscosity Tester TPV-8
5.
Kinematic Viscosity Tester VST-3000
6.
Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7.
Fully Automatic Surface/Interface Tension Tester IT-800
8.
Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P
9.
Fully Automatic Open Cup Flash Point Tester TPO-3000
10.
Fully Automatic Closed Cup Flash Point Tester TPC-3000
11.
Digital Open Cup Flash Point Tester TPO-100
12.
Digital Closed Cup Flash Point Tester TPC-100
13.
Cloud Point & Pour Point Tester PT-2000
|
MOQ
|
1 Set
|
|
Trade Terms
|
EXW, FOB, CIF, CFR
|
|
Payment Terms
|
T/T, L/C
|
|
Port of Loading
|
Any Port of China
|
|
Packing Method
|
Internaional Standard Wooden Case
|
|
Transportation Method
|
By Sea, By Land, By Air, By Express
|
|
Supply Capability
|
100 Sets/Month
|
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
