Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Chenhui
-
Model Number:
-
MPC010-60W
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
N/A
-
Outlet Size:
-
G1/8
-
Power:
-
60W
-
motor:
-
60W DC motor
-
Pump Body Material:
-
316L Stainless Steel
-
Gear Material:
-
PEEK
-
Gear Shaft Material:
-
316L Stainless Steel
-
Seal Material:
-
PTFE
-
Theory:
-
Magnetic Drive Gear Pump
-
Product name:
-
Circulation Pump
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Drinking water treatment, Food and Beverage Industry, Pharmaceutical industry, Washing and Cleaning
-
Pressure:
-
Low Pressure
-
Voltage:
-
24V
-
Warranty:
-
1year
-
Brand Name:
-
Chenhui
-
Model Number:
-
MPC010-60W
-
Place of Origin:
-
Guangdong, China
-
Horsepower:
-
N/A
-
Outlet Size:
-
G1/8
-
Power:
-
60W
-
motor:
-
60W DC motor
-
Pump Body Material:
-
316L Stainless Steel
-
Gear Material:
-
PEEK
-
Gear Shaft Material:
-
316L Stainless Steel
-
Seal Material:
-
PTFE
-
Theory:
-
Magnetic Drive Gear Pump
-
Product name:
-
Circulation Pump
Products Description
Product Model
SS316L/Hastelloy/PPS Pump Body 24V BLDC Motor Drive Micro Gear Pump Magnetic Coupling
|
Model
|
MPC010
|
010
|
B
|
A
|
A
|
B
|
C
|
|||||
|
Position
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|||||
|
1
|
Pump Series
|
MPC010
|
|
|
|
|
|
|||||
|
2
|
Flow Rate
|
0-1L/min(0.28ml/rev)
|
|
|
|
|
|
|||||
|
3
|
Body Material
|
A:304,
B:316L
C:Hastelloy D: PPS
|
|
|
|
|
|
|||||
|
4
|
Gear Material
|
A: PEEK Gear+316 shaft，B:PEEK Gear +ceramic shaft
|
|
|
|
|
|
|||||
|
5
|
Ports
|
A:G 1/8"， B:G 1/4"，C:Available customization
|
|
|
|
|
|
|||||
|
6
|
Motor Type
|
A: DC Brushless;
B: DC Brushed motor
; C: Strepper motor; D: Servo motor; E: Three-phase asynchronous; F: Explosion-proof motor
|
|
|
|
|
|
|||||
|
7
|
Power(W)
|
A:30W;B:40w;
C:60W
;D:70W;E:80W;F:100W;G:110W;H:150W;I:200W;J:250W;K:300W;L:370W;M:400W;N:550W;O:750W;P:1000W
|
|
|
|
|
|
|||||
|
Medium viscosity range
|
0-3000cps
|
|
|
|
|||
|
medium temperature
|
-30℃-120℃
|
|
|
|
|||
|
Pressure difference
|
0-15Bar
|
|
|
|
|||
|
Type of medium
|
all liquids except strong acids ang bases
|
|
|
|
|||
|
Inlet filter
|
Recommended 4500 mesh
|
|
|
|
|||
|
Inlet vacuum
|
-0.85Bar
|
|
|
|
|||
|
Motor
|
60w brushed motor
|
|
|
|
|||
|
Working noise
|
4000rpm<60dB
|
|
|
|
|||
|
Working speed
|
0-4500rpm
|
|
|
|
|||
|
Motor Parameters
|
|
|
|
Power
|
60W
|
|
|
Electric current
|
2.4A
|
|
|
Voltage
|
DC24V
|
|
|
RPM6
|
6000RPM
|
|
Product Features

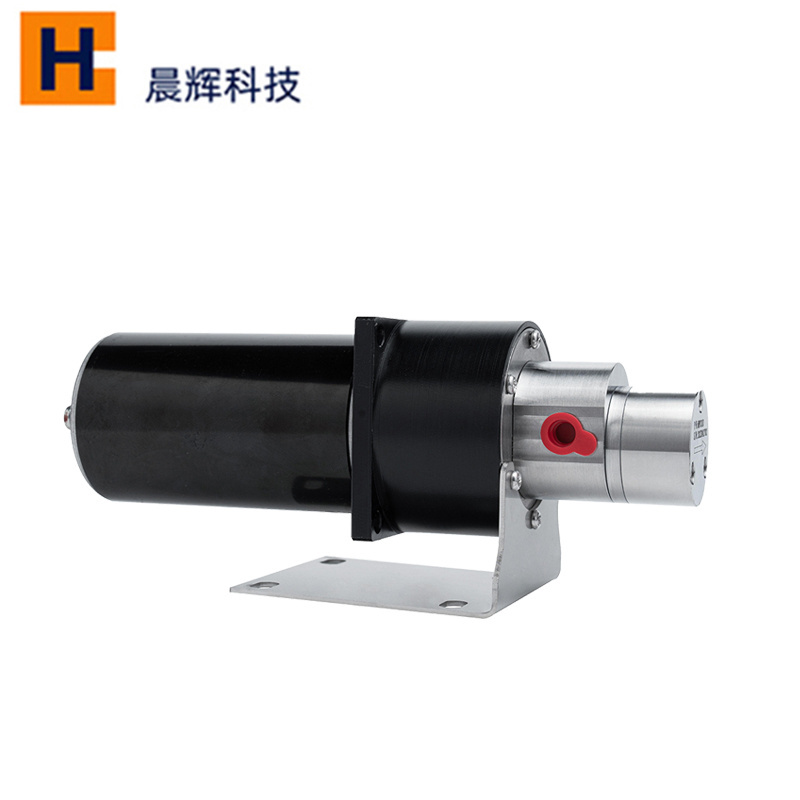

MPC010-60W
DC Brush Motor
Micro Magnetic Gear pump
is equipped with a DC brush motor, which is easy to control, achieves high-efficiency liquid transportation at high speed, and is extremely cost-effective.
1. No pulse accurate delivery
Through the gears to provide continuous accurate fluid transportation. with servo motor and stepper motor delivery accuracy of +/-0.5%.
2. Strong vacuum suction capacity
High conveying pressure and smooth Operation High pressure delivery in low viscosity liquids.
3. No leakage
Magnetic drive and static O-ring seal can ensure that the medium in the pump is isolated from the outside world to achieve no leakage.
4.Long Lifespan
Top-tier materials and precision technology, advanced techniques to prolong its operational lifespan.
Main Applications:
Widely used in Laser Cooling Instrument testing; Food processing; Fine chemistry; Packaging machinery; ink jet printer; Medical treatment and medicine; Agricultural spraying.
