Quick Details
-
Productivity:
-
96 m3/h
-
Max weighing:
-
3000 kg
-
Min weighing:
-
900 kg
-
Measurement:
-
Accumulative
-
Batching accuracy:
-
±2%
-
Feeding height:
-
2774/2774/2774/3160 mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Volume of scale hopper:
-
1600 L
-
Volume of storage hopper:
-
2 x 2,3 x 2,4 x 2,3 x 7 m3
-
Productivity:
-
96 m3/h
-
Max weighing:
-
3000 kg
-
Min weighing:
-
900 kg
-
Measurement:
-
Accumulative
-
Batching accuracy:
-
±2%
-
Feeding height:
-
2774/2774/2774/3160 mm

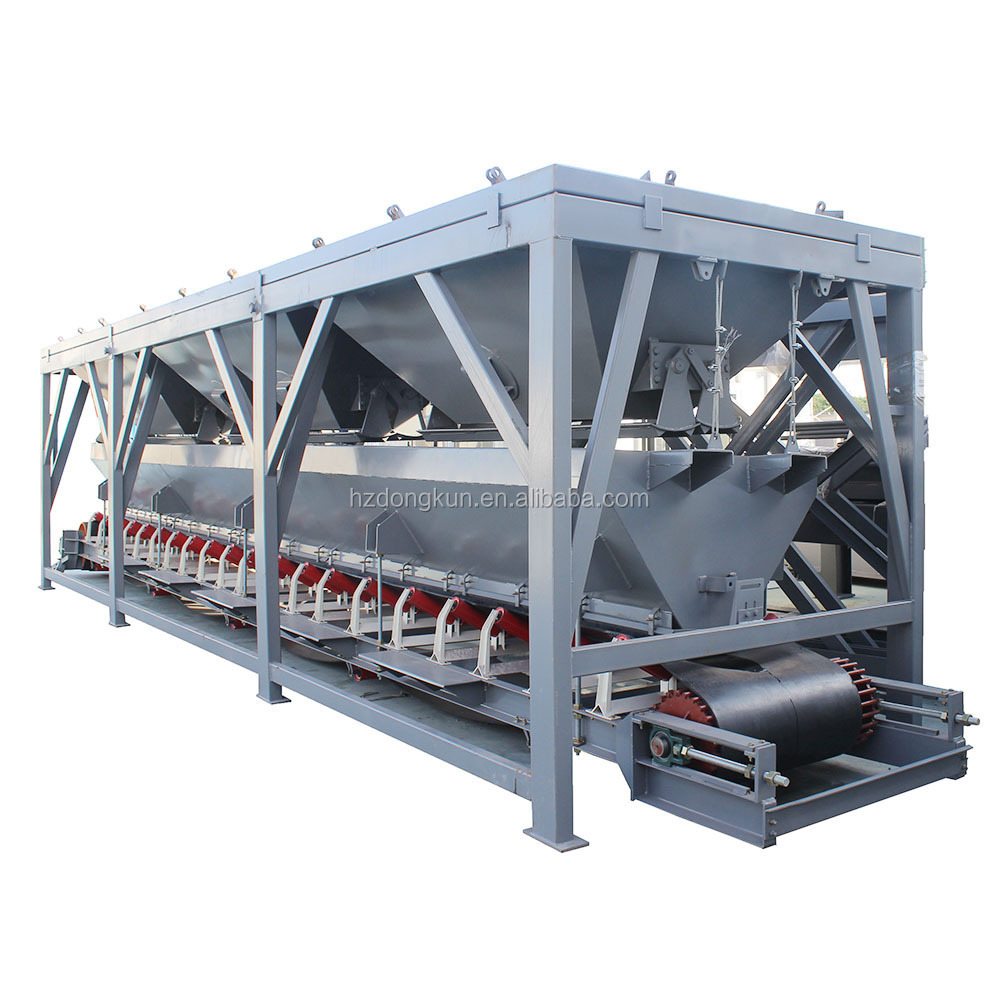

PLD 1600 Hopper Type Concrete Aggregate Batching Machine
♦
The
PLD1600 c
an automatically complete the batching process of sand, stone and other materials according to the concrete ratio set by the user.
♦
The product in accordance with GB / T27738-2011 "gravity automatic weighing instrument", GB / T10595-2009 "belt conveyor" and GB / T10171-2005 "concrete mixing plant (floor)" technical standards. The machine has the characteristics of accurate weighing, high precision of packing, fast speed and strong control function. The series of products using electronic weighing, can automatically be measured and corrected impulse; digital display, there are two main LED display panel, real-time display the weight of each ingredient and the cumulative weight of ingredients; can easily carry out 10 kinds of Recipe preservation and extraction, as well as automatic preservation of the current use of the formula; with perfect protection and fault diagnosis; wired remote control operation.
♦
The product can also be equipped with two-way belt machine for two mixer ingredients, to achieve excellent economic results.
Main Features
♦ The optimal hopper volume utilization,guarantees a minmum feeding height.
♦ Solid structure design,modular structure making transportion easily.
♦ Details show intimate design concept.
Concrete Batching System Spare Parts
Name: Air cylinder
Original
: China
Pneumatic cylinders are mechanical devices which use the power of compressed gas to produce a force in a reciprocating linear motion.Control the discharge gate switch according to the command of the control center.
Concrete Batching System Spare Parts
Name:
Air compressor
Original: China
An air compressor is a device for compressing gas, similar to a water pump. Used in conjunction with cylinders.
Concrete Batching System Spare Parts
Name:
Vibrator
Original:
China
Installed in the side of the dosing chamber, with the vibration of the way to facilitate faster flow of materials, and Play to prevent the accumulation of aggregate.
Concrete Batching System Spare Parts
Name:
Electric part
Original:
China
Contains pressure relief valves and filters. The pressure reducing valve regulates the air supply to keep the air supply in a constant state. The filter is used to clean the air supply and filter the moisture in the compressed air. Has the characteristics of efficient batching,rapid gas path in response,precise drop control.
Concrete Batching System Spare Parts
Name
: Load cell
Original
: China
Strong corrosion resistance of weighing and metering device.Accurate weighing unloading weight, the error is small。Weighing accuracy is achieved ±2%.
Concrete Batching System Spare Parts
Name
: Belt conveyor
Brand
: COMACO
Original:
China
We offer a belt conveyor that is compatible with aggregate batching system.Belt conveyor is made of stainless steel and high quality rubber belt with a strong wear resistance, corrosion-resistant features.Good stability.
