Quick Details
-
Model Number:
-
WR series
-
Product name:
-
Haichen M5 M6 M8 Bolt Thermocouple Sensor with SS Braided Wire
-
Mark:
-
K N E J T
-
Temperature range:
-
0~1000C
-
Chip size:
-
customized
-
Thread material:
-
aluminium or stainless steel or brass
-
Accuracy:
-
class I/II
-
Lead wire:
-
SS braided
-
Service:
-
retail and wholesale
-
Supply:
-
OEM
-
MOQ:
-
5 pcs
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Haichen
-
Model Number:
-
WR series
-
Product name:
-
Haichen M5 M6 M8 Bolt Thermocouple Sensor with SS Braided Wire
-
Mark:
-
K N E J T
-
Temperature range:
-
0~1000C
-
Chip size:
-
customized
-
Thread material:
-
aluminium or stainless steel or brass
-
Accuracy:
-
class I/II
-
Lead wire:
-
SS braided
-
Service:
-
retail and wholesale
-
Supply:
-
OEM
-
MOQ:
-
5 pcs
Haichen M5 M6 M8 Bolt Thermocouple Sensor with SS Braided Wire
1. Summary
K E Type Thermocouple is a common temperature sensor used in industrial temperature testing. It directly measures the temperature and converts the temperature signal into thermoelectric electromotive force signal, which is converted into the temperature of the measured medium by electrical instrument (secondary instrument).
2. Specification
|
Type |
Wire diameter (mm) |
Graduation mark |
Tolerance |
Long-term working temperature(°c) |
|
Ni-Cr-/Ni-Si |
0.3 to 3.2 |
K |
±2.5°c or ±0.75 l t l
|
-40 to 1200 |
|
Ni-Cr-Si/Ni-Si |
N |
-40 to 1200 |
||
|
Ni-Cr/Cu-Ni |
E |
-40 to 750 |
||
|
Fe/Cu-Ni |
J |
-40 to 600 |
||
|
Cu/Cu-Ni |
0.2 to 1.6 |
T |
±1°c or ±0.75 l t l |
-40 to 350 |
|
Pt-Rh10/pt |
0.5 |
S |
±1.5°c or ±0.25 l t l
|
0 to 1300 |
|
Pt-Rh13/pt |
R |
0 to 1300 |
||
|
Pt-Rh30/Pt-Rh6 |
B |
±4°c or ±0.5 l t l |
600 to 1700 |
3. Feature
Easy assembly and convenient for replacement;
Spring thermal element with good shock-proof performance;
Wide measuring range (0~1600 degree Celsius);
High mechanical strength and good pressure-resistant performance

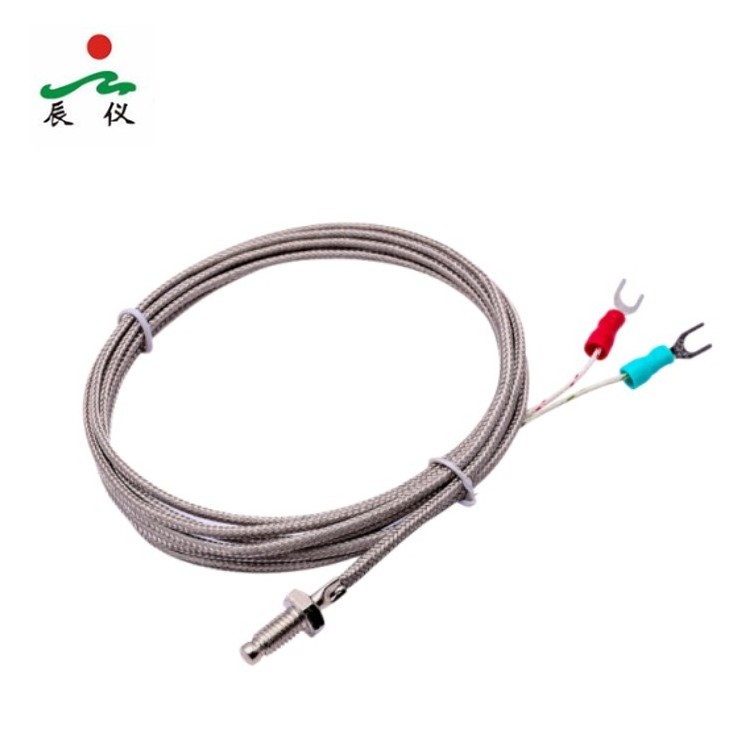

4. Products pictures
