Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4706*1570*2530mm
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.38m3, 0.38cbm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
small mini articulated wheel loader
-
Operating weight:
-
2700kg
-
Maximum dump height:
-
2100mm
-
Engine Model:
-
Changchai ZN390Q
-
Overall length:
-
4706mm
-
Overall width:
-
1570mm
-
Overall height:
-
2530mm
-
Lifting Height:
-
3463mm
-
Max. Breakout Force:
-
22kN
Quick Details
-
Engine Brand:
-
Changchai ZN390Q
-
Power:
-
25kw
-
Brand Name:
-
Everun
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4706*1570*2530mm
-
Machine Weight:
-
3100 kg
-
Bucket capacity:
-
0.38m3, 0.38cbm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
small mini articulated wheel loader
-
Operating weight:
-
2700kg
-
Maximum dump height:
-
2100mm
-
Engine Model:
-
Changchai ZN390Q
-
Overall length:
-
4706mm
-
Overall width:
-
1570mm
-
Overall height:
-
2530mm
-
Lifting Height:
-
3463mm
-
Max. Breakout Force:
-
22kN

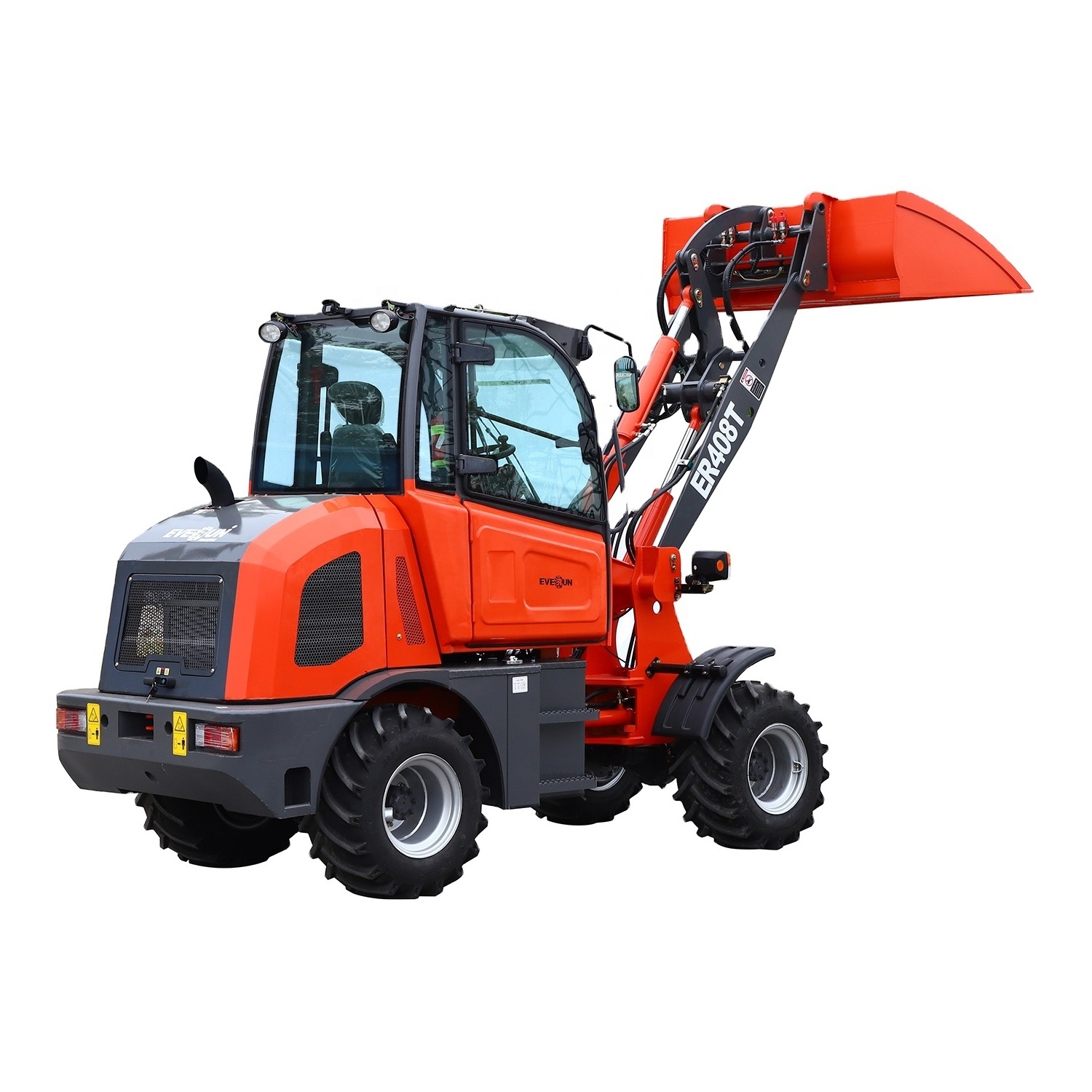

Everun ER408T 800KG mini wheel loader small size diesel articulated payloader price compact loader
Product Description
Specification
|
1.0 ENGING DETAILS
|
|
|
|
|||
|
(1) MODEL
|
|
Changchai ZN390Q
|
|
|||
|
(2) RATED POWER
|
|
25kW
|
|
|||
|
(3) RATED SPEED
|
|
2200R/MIN(RPM)
|
|
|||
|
(4) FUEL CONSUMPTION RATION IN STANDARD WORKING CONDITION
|
|
265G/KW.H
|
|
|||
|
2.0 OPERATING SECIFICATIONS
|
|
|
|
|||
|
(1) BUCKET CAPACITY
|
|
0.38m
3
|
|
|||
|
(2) LOADING CAPACITY
|
|
800kg
|
|
|||
|
(3) OPERATION WEIGHT
|
|
3100kg
|
|
|||
|
(4) LIFTING TIME
|
|
≤8.0s
|
|
|||
|
(5) DRIVING SPEED
|
|
0-20km/h
|
|
|||
|
(6) MIN.TURNING RADIUS
|
|
3905mm
|
|
|||
|
(7) MAX.TURNING ANGLE
|
|
±35°
|
|
|||
|
3.0 OVERALL DIMENSIONS
|
|
|
|
|||
|
(1) OVERALL LENGTH(bucket on grouond)
|
|
4706mm
|
|
|||
|
(2) OVERALL HEIGHT
|
|
2530mm
|
|
|||
|
(3) OVERALL WIDTH
|
|
1570mm
|
|
|||
|
(4) DUMPING HEIGHT
|
|
2100mm
|
|
|||
|
(5) DUMPING REACH
|
|
735mm
|
|
|||
|
(6) MIN.GROUND CLEARANCE
|
|
220mm
|
|
|||
|
(7) WHEEL BASE
|
|
1120mm
|
|
|||
|
4.0 BRAKE SYSTEM
|
|
|
|
|||
|
(1) SERVICE BRAKE
|
|
FOUR WHEEL HYDRAULIC SPREAD-SHOED BRAKE
|
|
|||
|
5.0 TYRE
|
|
31*15.5-15 Agricultural Tyre
|
|
|||
