Quick Details
-
Model Number:
-
SG61000-5
-
Output Voltage (Open):
-
1.2/50μs±20%
-
Output Current (Short):
-
8/20μs±20%
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
24 Months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LISUN
-
Model Number:
-
SG61000-5
-
Output Voltage (Open):
-
1.2/50μs±20%
-
Output Current (Short):
-
8/20μs±20%
-
Certification:
-
ISO

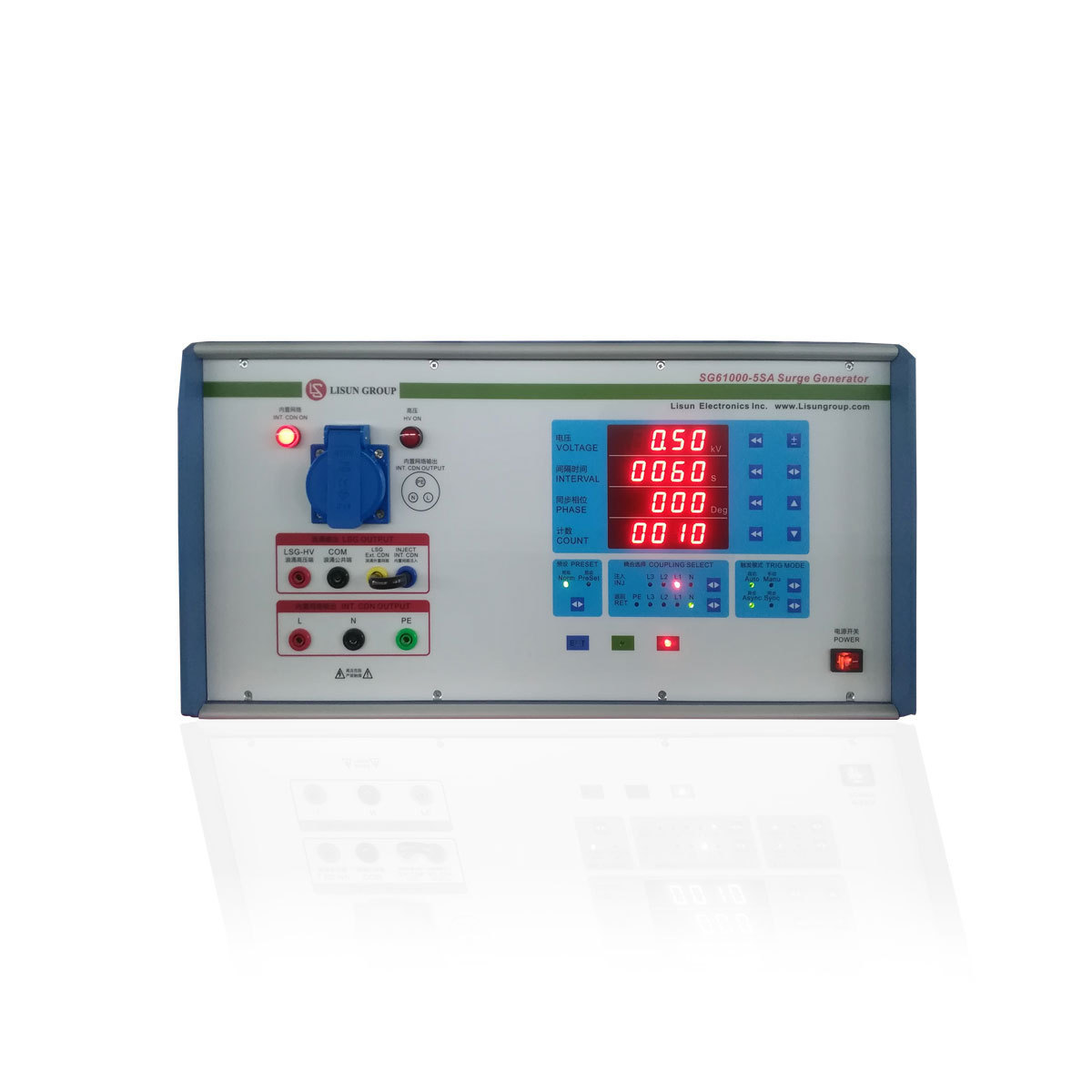

The SG61000-5 fully automatic surge generator (also called lightning surge immunity test, combination wave generator, surge current generator/surge voltage generator, combined surge voltage and current generator) .
How does a surge generator work?
The SG61000-5 surge generator provides a common basis for evaluating the resistance of power cords and internal connectors of different equipment to high energy transient interference caused by natural lightning surge induction and large capacity load switching. It fully meets the IEC 61000-4-5, EN61000-4-5 and GB/T17626.5 standards.
Specifications:
| Product Model | SG61000-5SA | SG61000-5SB | SG61000-5 | SG61000-5H-SP | SG61000-5T |
| Output Voltage (Open) | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% | 1.2/50μs±20% |
| Output Current (Short) | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% | 8/20μs±20% |
| Output Impedance | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω and 12Ω | 2Ω 12Ω and 500Ω | 2Ω and 12Ω |
| Output Voltage Range | 0~4.8KV±10% | 0~4.8KV±10% | 0~6KV±10% | 0~10KV±10% | 0~6KV±10% |
| Output Current Range | 0~2.4KA±10% | 0~2.4KA±10% | 0~3KA±10% | 0~5KA±10% | 0~3KA±10% |
| Surge Repetition | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times | 1~9999 times |
| Interval Time | 20~9999s | 20~9999s | 20~9999s | 30~9999s | 20~9999s |
| Polarity | Positive, Negative or Positive/Negative automatic | ||||
| Phase Shift | Asynchronous, Synchronization 0°~ 360° or Specific Angle | ||||
| Special Function | N/A | Built-in High voltage and current 2000:1 attenuator probe (Less than 10KV surge generator is 1000:1), connect with LISUN OSP1102 directly | |||
| Operation Way | Button Input | Touch screen with super big LCD and built-in Windows CE | |||
| Dimensions (WxDxH) | 44x45x35cm | 44x45x35cm | 44x45x35cm | 56x69x155cm | 44x45x55cm |
| Gross Weight | About 30kg | About 30kg | About 30kg | About 270kg | About 48kg |
|
Coupling/Decoupling
Network (CDN) |
Includes a 16A single phase CDN | Includes a 20A 3phases CDN | |||
|
Isolution Transformer
for EUT (Optional) |
LISUN ITEU-SP4K (220V Single phase) or ITUS-SP2K (110V) | LISUN ITEU-TP10K or ITUS-TP5K | |||
Remark: 10KV Surge Generator, 12KV Surge Generator, 15KV Surge Generator, 20KV Surge Generator and any
other higher voltage Surge Generator can be designed according to your requirement.
Due to the high voltage risk during the Surge Test, we suggest you to option choose the Protect Device for Surge Test
PD-E01 to together work with Surge Generator SG61000-5 (The PD-E01 inside size is 30*30*30cm for EUT, other size
need to special design)
We suggest you choose LISUN SG-DESK Surge Generator desk to work with SG61000-5 Surge Generator and
Isolation Transformer.
