（1）Manual/Auto.
（2）Dual pump alternating function.
（3）Dynamic display of liquid level.
（4）24-hour inspection (anti-rust) function.
（5）One-key setting function in manual mode.
（6）Automatic identification current setting function.
（7）Water shortage protection stop pump function when manual start (prevent air from entering the pump)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2 years
-
Brand Name:
-
aikon
-
Model Number:
-
PDX
-
Place of Origin:
-
China
-
Outlet Size:
-
1''*1''
-
Power:
-
standard
-
motor:
-
induction motor
-
Assembly:
-
Booster Pump
-
Type:
-
Domestic Peripheral Pump
-
Performance:
-
Surface Water Pump
-
Frequency:
-
50/60hz
-
Media:
-
Clean Water
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Drinking water treatment, Family Homes, HVAC OEM, Industrial Utilities, Irrigation and Agriculture, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution
-
Pressure:
-
Other
-
Voltage:
-
48v, 110V-220V single phase standard
-
Warranty:
-
2 years
-
Brand Name:
-
aikon
-
Model Number:
-
PDX
-
Place of Origin:
-
China
-
Outlet Size:
-
1''*1''
-
Power:
-
standard
-
motor:
-
induction motor
-
Assembly:
-
Booster Pump
-
Type:
-
Domestic Peripheral Pump
-
Performance:
-
Surface Water Pump
-
Frequency:
-
50/60hz
-
Media:
-
Clean Water
Products Description
Caution
◆ Before installing and using the product, please read the instruction manual and keep it properly.
◆ The controller must be installed by professionals who are familiar with low-voltage electrical technology.
◆ Power must be disconnected during installation, wiring, disassembly and maintenance.
◆ It is strictly forbidden to touch live components directly with your hands in the state of power.
◆ The controller must be reliably grounded before power on.
◆ If the generator is used as the power source of the controller, the power source of the generator is stable, and the controller can be energized!
◆ If you do not install and debug according to the instruction manual or punch holes in the shell without permission, the consequences shall be borne by yourself.
◆ Before installing and using the product, please read the instruction manual and keep it properly.
◆ The controller must be installed by professionals who are familiar with low-voltage electrical technology.
◆ Power must be disconnected during installation, wiring, disassembly and maintenance.
◆ It is strictly forbidden to touch live components directly with your hands in the state of power.
◆ The controller must be reliably grounded before power on.
◆ If the generator is used as the power source of the controller, the power source of the generator is stable, and the controller can be energized!
◆ If you do not install and debug according to the instruction manual or punch holes in the shell without permission, the consequences shall be borne by yourself.
Product Paramenters
|
Specifications of the Water Pump controller
|
|
|
|
Rated Power
|
2.2KW-7.5KW For single phase pump
4KW-15KW For triple phase pump |
|
|
Rated Input Voltage
|
220V/380V 50Hz or 60Hz
|
|
|
Qty.of Controlled Pump
|
Single/Double pump
|
|
|
Display
|
LCD display
|
|
|
Water Level Indication
|
High/Middle/Low
|
|
|
Liquid level transmission distance
|
≤1000m without strong electric and electromagnetic fields
|
|
|
Over/under-voltage Range
|
176V-264V(adjustable)
|
|
|
Net Weight
|
0.96KG
|
|
|
Underpressure operation time
|
<2s
|
|
|
Overpressure operation time
|
<2s
|
|
|
Overload operation time
|
<5s
|
|
|
Dry rotation time
|
<5s
|
|
|
Blocking rotation time
|
1S
|
|
|
Short-circuit operation time
|
0.1S
|
|
|
RS485 transmission distance
|
Within 1200 meters (using twisted-pair shielded cable STP-120Ω, 20 AWG) .「Percentage points (%) can be set for dry rotation
protection/overload protection/blocked rotation protection. |
|
|
Protection class
|
IP54
|
|

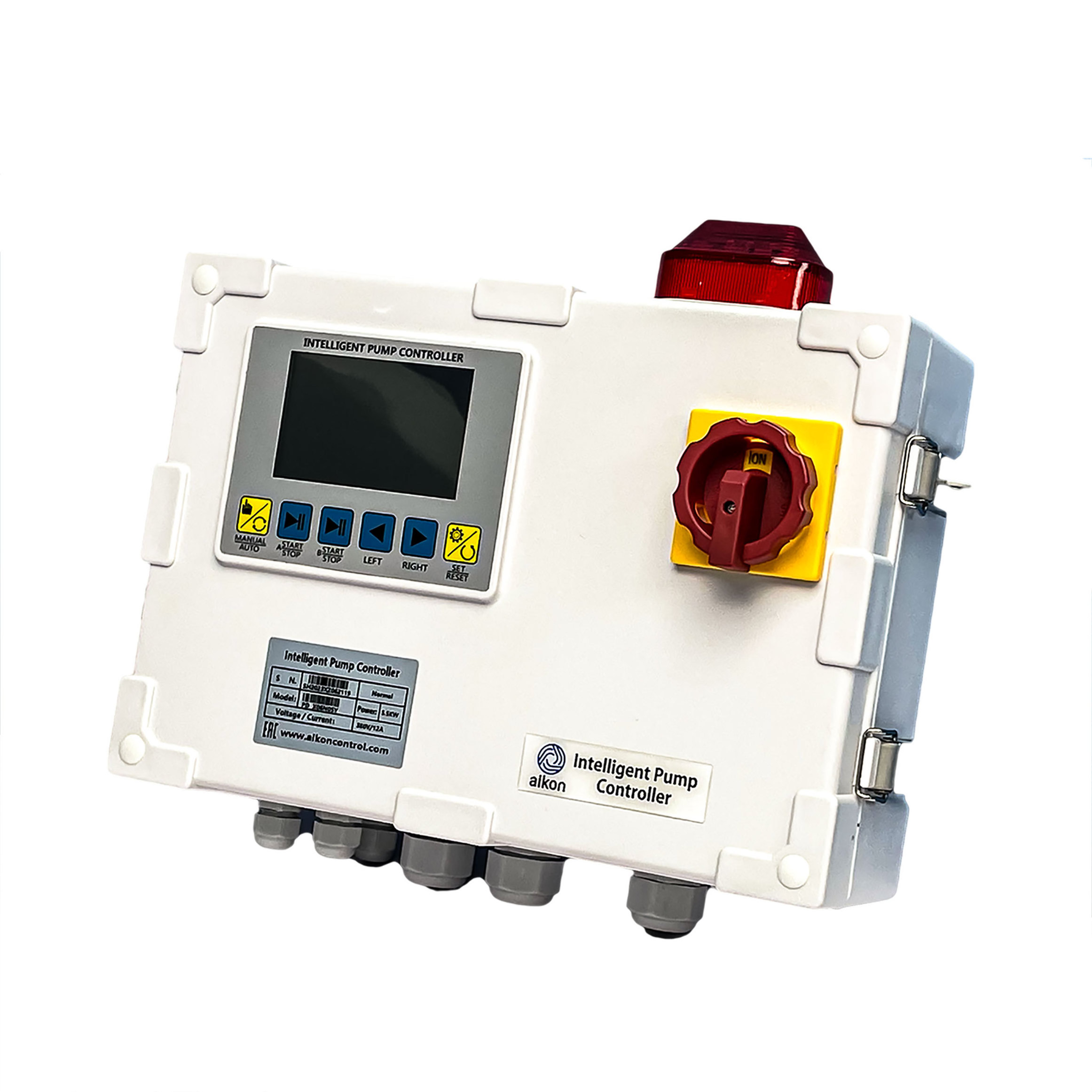

Automatic Intelligent Water Pump Controller
Scope of application: protection and control of deep well pump/sinking pump/sewage pump/pipelinebooster pump/muti-stage pump/centrifugal pump...and underground blowdown, the level of the water supply in buildings, pressure and the control of float ball.
Scope of application: protection and control of deep well pump/sinking pump/sewage pump/pipelinebooster pump/muti-stage pump/centrifugal pump...and underground blowdown, the level of the water supply in buildings, pressure and the control of float ball.
Main Functions
