NY-802 Hot Stamping Foil Coding Machine Batch Inkjet Code Printer Date Printing Machine HP-241

NY-802 Hot Stamping Foil Coding Machine Batch Inkjet Code Printer Date Printing Machine HP-241

FOB Reference Price: Get Latest Price

≥1 Sets

US $250

≥50 Sets

US $200

≥100 Sets

US $180

≥300 Sets

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: NanYun

Voltage:: 220V/50Hz

Dimension(L*W*H):: 400mm*210mm*250mm

Weight:: 8 KG

Product name:: Batch Date Coding Machine

Usage:: Print Expiry Date Batch Number

Model number in market:: HP-241, HP-241G, HP241, NY-802

Print speed:: 20-120 Pieces/min

Font size:: 1.2*3*15mm, 2*3*15mm, 2*4*15mm, etc.

Consumable:: Hot Stamping Ribbon

Ribbon colors:: Black Red White Blue Gold Silver Green

Ribbon width:: 20mm, 25mm, 30mm, 35mm

Printing area:: Max: 11*35mm

Certification:: ISO9001

Quick Details

Automatic Grade:: Automatic

Application:: Packaging Machine

Place of Origin:: Fujian, China

Brand Name:: NanYun

Voltage:: 220V/50Hz

Dimension(L*W*H):: 400mm*210mm*250mm

Weight:: 8 KG

Product name:: Batch Date Coding Machine

Usage:: Print Expiry Date Batch Number

Model number in market:: HP-241, HP-241G, HP241, NY-802

Print speed:: 20-120 Pieces/min

Font size:: 1.2*3*15mm, 2*3*15mm, 2*4*15mm, etc.

Consumable:: Hot Stamping Ribbon

Ribbon colors:: Black Red White Blue Gold Silver Green

Ribbon width:: 20mm, 25mm, 30mm, 35mm

Printing area:: Max: 11*35mm

Certification:: ISO9001

Product Description

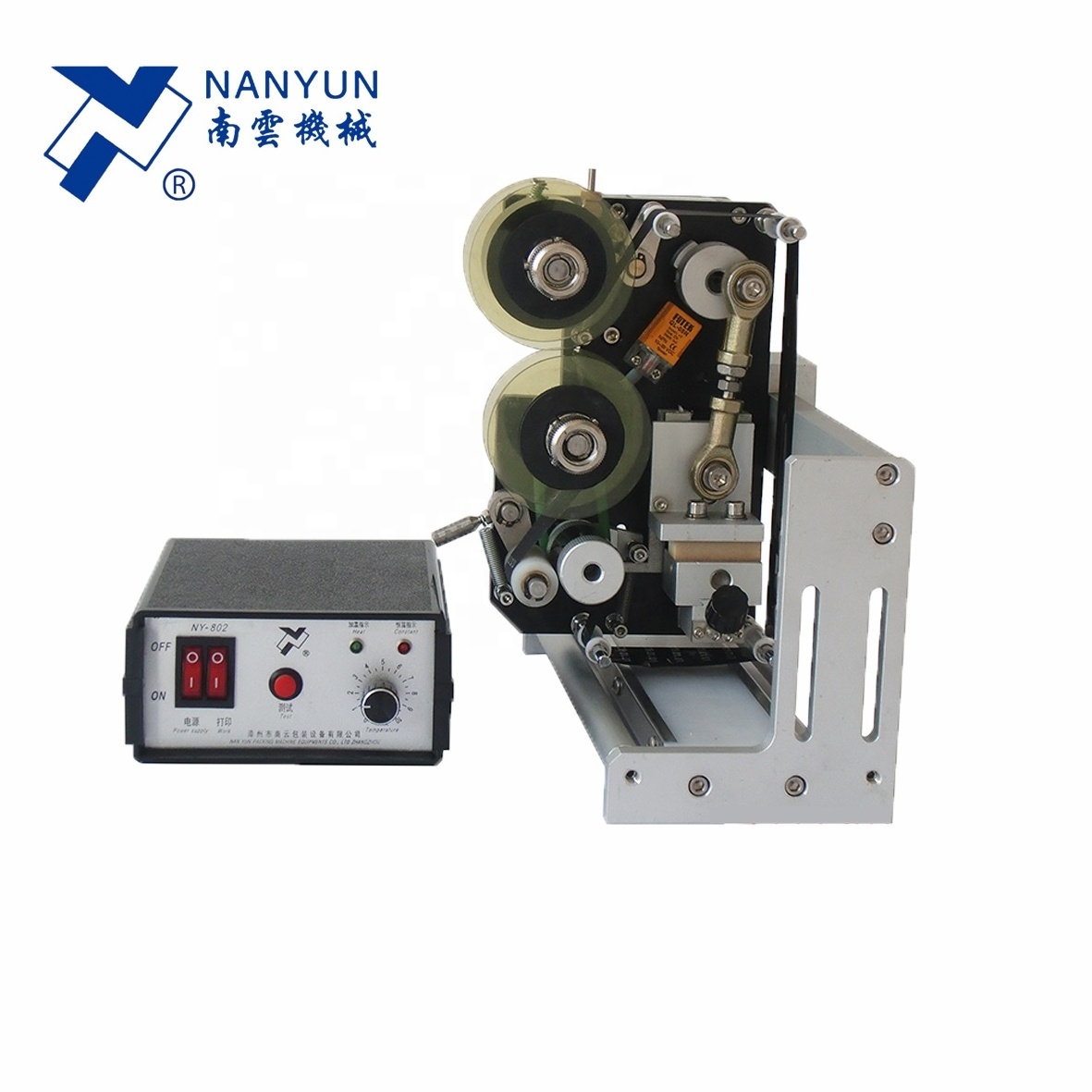

NY-802 Electric Hot Stamping Ribbon Date Coding Machine for VFFS, HFFS, Labeler

Ⅰ. Applications:
It is applicable to vertical intermittent and continuous packing machine and high speed labeling machine to print date code, lot number and weight on film (PT, PE, PVC, OPP, KT), paper and other various trademark labels. NY-802 is only machine head, it is motor type hot stamping machine, with different brackets, it can be used for different packing machines such as VFFS, horizontal Packing Machine, Labeling Machine, Bag Making Machine etc.

Ⅱ. Features:
1. Characterized by ingenious structure, compact size and convenient installation.
2. It can be used directly with high-speed labeler, and the coding speed is synchronous with the labeling machines.
3. Adopts SCM technology, temperature rising fast and stably, the temperature and print position easy to adjust.

Ⅲ. Technology Data:

Model	NY-802 / HP-241
Driver	Motor
Power Supply	220V/50Hz
Power	150W
Print Speed	0-200 times/min
Font Size	2315mm; 1.2315mm; 1.5315mm;2415mm;
Consumable	Hot stamping ribbon
Size (LXWXH)	210mm180mm230mm (Machine Head only)
Weight	5kgs

Installed for VFFS, HFFS Packing Machines and Labeling Machines

Print Result

Consumables Hot Stamping Foil/Ribbon:

Hot Stamping Ribbon for Date Coding Machine to Print MFG EXP LOT Date Number.

Introduction:

With the characteristics of good adhesion, no easy-to-wipe, boiling resistance, legible printing, non-pollution, NY series stamp ribbon are widely used on ribbon coder to print clear and instant dry production date, batch No., etc. on plastic film and labels such as PVC, PP/OPP, PE/PET and Aluminum etc. Can print date on packing bags of frozen food, dairy, beverage, chemical, etc.
Storage Requirement:
1) Do not put it directly into the highlight, protect from pressure, dampness, heat and sunshine.
2)Place in the ventilated, shaded and cool place.
3)Storage time: within two years.
