Quick Details
-
Product name:
-
1 core Single mode GJFJV indoor fiber optic cable
-
Application:
-
Telecommunication
-
Fiber Type:
-
G652D, G657A1
-
Material:
-
PVC, LSZH
-
Certification:
-
ISO9001:2015
-
Fiber count:
-
1/2/4/6/8/12 core
-
Operation Temp:
-
-20℃~+70℃
-
Outder diameter:
-
6.5-6.8mm
-
Usage:
-
pigtails or patchcords
Quick Details
-
Brand Name:
-
Wolon or OEM
-
Model Number:
-
Single mode 1 core
-
Place of Origin:
-
Hubei, China
-
Product name:
-
1 core Single mode GJFJV indoor fiber optic cable
-
Application:
-
Telecommunication
-
Fiber Type:
-
G652D, G657A1
-
Material:
-
PVC, LSZH
-
Certification:
-
ISO9001:2015
-
Fiber count:
-
1/2/4/6/8/12 core
-
Operation Temp:
-
-20℃~+70℃
-
Outder diameter:
-
6.5-6.8mm
-
Usage:
-
pigtails or patchcords

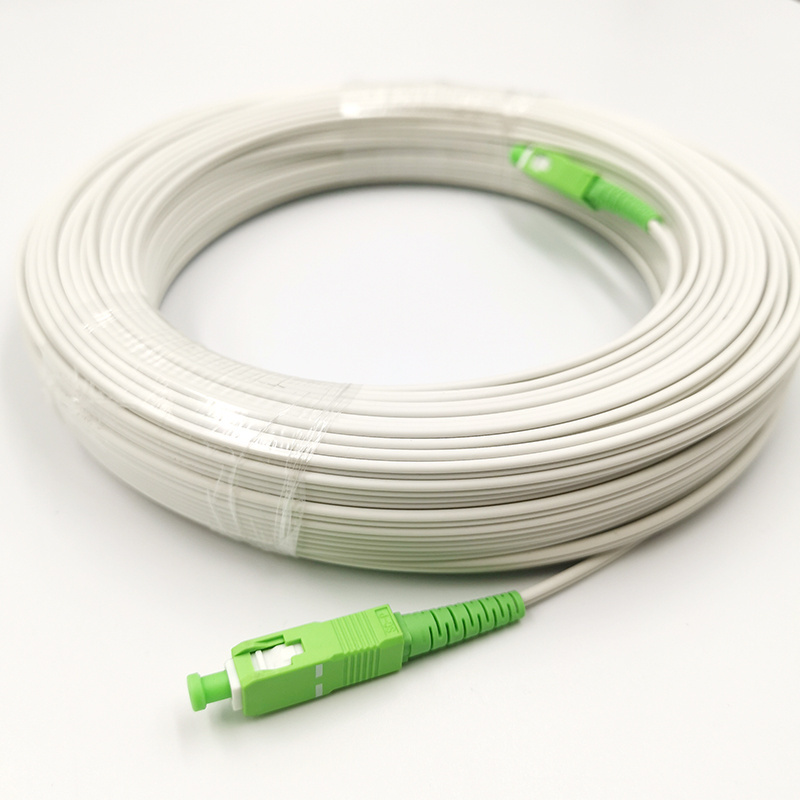

1 Fiber Butterfly Flat FRP Strength Member 3*2mm indoor Fiber Optic Drop Cable
patch cord
FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling, end users directly cabling, and access network.
It’s a kind of patch cable but assembly with drop cable. This is a last cable in FTTH project. Used widely in Fact plate, terminal box, ONU tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also, customers can specify your required connectors.
Feature:
Good waterproof performance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath
Parameters:
|
Cable |
Fibers |
Cable Size(mm) |
Cable Wt (kg/km) |
Tensile strength Long/short term(N) |
Crush Strength Long/short term(N/100m) |
Banding Radius Static/Dynamic (mm) |
|
GJXFH-1 |
1 |
(2.0±0.1)x(3.0±0.1) |
8 |
40/80 |
500/1000 |
15/30 |
|
GJXFH-2 |
2 |
(2.0±0.1)x(3.0±0.1) |
8.5 |
40/80 |
500/1000 |
15/30 |
Storage Temp: -40°C ~+85°C
Other fibers please contact our sales representative.
Optical performance.
|
Test Item |
Test Condition |
Value(dB) |
||
|
UPC |
APC |
|||
|
Optical Performance |
Insertion Loss |
1310nm LED light source |
<0.3 |
<0.3 |
|
Return Loss |
1310nm LED light source |
>50 |
>60 |
|
|
Environmental Performance (Max. Insertion Loss change) |
High temperature |
+85°C168 hours |
<0.2 |
|
|
Temperature Cycle |
-40-+75°C, 21 Cycles 168 hours |
<0.2 |
||
|
Humidity Aging |
+75°C, 95%R.H,168 hours |
<0.2 |
||
|
Humidity/Condensation Cycling |
-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours |
<0.2 |
||
|
Mechanical Performance ( Max. Insertion Loss change) |
Vibration |
10-55Hz, 1.5mm(p-p) |
<0.2 |
|
|
Flex |
0.9kg,-90o~+90o repeat for 100 cycles |
<0.2 |
||
|
Torsion |
1.35kg,90o~+90o ,10times |
<0.2 |
||
|
Withstand tensile |
90N,10min |
<0.2 |
||
|
Drop |
H=1.5M,Total of 8 drops |
<0.2 |
||
|
Exchangeability |
Randomly |
<0.2 |
||
|
Durability |
500 times |
<0.2 |
||
Application:
Access Networks
LAN (Local Area Network)
Fiber Optic Communication System
FTTH (Fiber to The Home) Indoor Building
Optical fiber connected and transmitted equipment
Ideal Using of Butterfly Flat Indoor FTTH Drop Cable
Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's very suitable for indoor cabling, end users directly cabling, and access network.
