Quick Details
-
Brand Name:
-
GOTERPOWER
-
Model Number:
-
GTZW-S50KVA
-
Efficiency:
-
≥98%
-
Input voltage stabilizing range:
-
±20% to ±60% ( Larger range can be customized
-
Power factor:
-
0.8
-
Response time:
-
≤0.03s
-
Operation method:
-
Intelligent SCR control
-
capacity:
-
from 5KVA to 2500KVA
-
Sphere of application:
-
CNC.Printer ,Laser cutting machine
-
color:
-
white can be change
-
certifications:
-
CE,ISO 9001
-
Output voltage accuracy:
-
±1~5%
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GOTERPOWER
-
Model Number:
-
GTZW-S50KVA
-
Efficiency:
-
≥98%
-
Input voltage stabilizing range:
-
±20% to ±60% ( Larger range can be customized
-
Power factor:
-
0.8
-
Response time:
-
≤0.03s
-
Operation method:
-
Intelligent SCR control
-
capacity:
-
from 5KVA to 2500KVA
-
Sphere of application:
-
CNC.Printer ,Laser cutting machine
-
color:
-
white can be change
-
certifications:
-
CE,ISO 9001
-
Output voltage accuracy:
-
±1~5%
GTZW-50KVA intelligent static automatic voltage stabilizer 50kva voltage stabilizer
1. Sphere of application of 50 KVA automatic voltage regulator :
1.CNC Machining Centers 2.SMT 3.Printer 4.EDM
5.High way/railway system 6.Medical facilities 7.Laser cutting machine 8.Circuit board drilling machine
9. Automatic insertion machine 10.CNC punch press 11. Net communication basic system
12.Petrochemical/Oil/Power system 13 Broadcast/Television/Bank system 14 Plastic Injection Molding Machines
15 Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed .
2. The comparison between GTZW-50 KVA automatic voltage regulator and Brush type voltage regulator :
1. Precision of voltage regulation is 1%, comparing 3% from carton brush type. More accureate & Stable.
2. It only take 30ms to regulate voltage, comparing 1000ms from carton brush type. Faster response & protection.
3. No Brush, no Abrasion, no Motor = No maintenance = Save money & energy.
With overload, shortload, short circuit, lack of phoses and automatically bypass protection. No hazard.
5.No Power on compension, no damdage to equipments.
3 .Technical Parameter of 50 KVA automatic voltage regulator :
|
Operation method |
Intelligent SCR control |
|
Input Voltage range |
380V/220V( can customize various voltage) |
|
Input frequency |
Plus or minus ± 15 %~ ± 60% (larger range can be customized) |
|
Output rated voltage |
380V/220V( can customize various voltage) |
|
Output Voltage accuracy |
± 1 % |
|
Filter distortion |
No additional waveform distortion ( static state) |
|
Efficiency |
≥ 98% |
|
Power factor |
0.8 |
|
Response time |
≤ 0.03 s |
|
Anti-interference |
Arrester, EMI filter, LC filter(optional) |
|
Over-voltage protection |
Output phase voltage 10%, cut-off input or transfer to bypass |
|
Overload protection |
Electronic detection, cut off input in three minutes |
|
Bypass protection |
Automatically transfer to bypass in case of failure |
|
Phase lack protection |
Cut-off automatically |
|
Overload ability |
5 time rated current 1 second |
|
Liquid crystal display |
Voltage, Current, Abnormal |
|
Alarm |
LED display and alarm |
|
Ambient temperature |
-15 ~45°C |
|
Altitude |
< 4000M |
|
Noise |
< 45dB(1 m distance) |
|
Cooling system |
Cooling fan |
4.Technology characteristics of 50 KVA automatic voltage regulator :
1. Userfriendly HMI, largescreen LCD display, enable to know all of system voltage, work current, status and other information;
2. Using a combined transformer compensation, SCR non contact switch optical coupling isolation industrial MCU control and other advanced technology;
3. Non-contact, Anti-interference, maintenance- free no mechanical error and no wear of carbon brush ;
4.Splitphase adjustment automatically, automatic balance of three phases, stable performance, reliable
5. Fastest stabilizer: adjust the voltage to the output voltage rating in the 40ms ;
6.State display, Error indication, Alarm reminders, Regulated power supply and bypass switching fun ction ;
7.With the function of protection against overload, overvoltage, under voltage, phase lack, short circuit, delay output and automatically bypass protection function;
8. RS-232 interface (Optional), Remote control, Remote and telemetry functions ;
9. Efficiency is as high as 98%;
10. lightning protection, filtering function(Optional)
11. capable of overload, suitable for resistive, capacitive, inductive and mixed loads

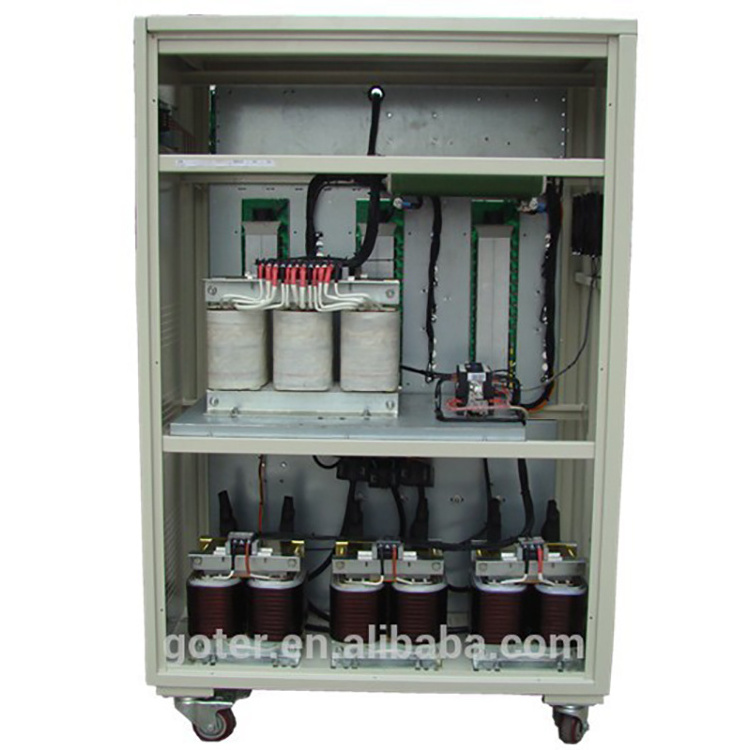

5 . Components of GTZW-50 KVA automatic voltage regulator :
1. voltage transformer modules;
2. non-contact SCR conditioning module;
3. AD sampling module, industrial MCU intelligent control module;
4. LCD display system, sound and light alarming system;
5. power supply system;
6 protection system and other components.
6. WHY CHOOSE US? Why Choose our GTZW-5 0KVA automatic voltage regulator?
1) Goter power have all the corresponding qualifications and Certifications for our Three phase automatic voltage regulator :
2) As a R&D factory of Intelligent voltage reuglator, by owned of top class research teams and manufacturing facilities, we have the strength to offer you full technical supports.
