Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2700*1100*1500mm
-
Machine Weight:
-
1400 kg
-
Machine Brand:
-
Tonlita
-
After-sales Service Provided:
-
1 Year
-
Model:
-
TS25
-
Rated Load:
-
400kgs
-
Operating weight:
-
1400kg
-
Certification:
-
CE
-
Width with bucket(mm):
-
1070mm
-
No. of cylinders:
-
3 cylinder
-
Operating height:
-
2695mm
Quick Details
-
Engine Brand:
-
Kubota D1105 engine diesel
-
Power:
-
18.2kw
-
Brand Name:
-
Tonlita
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2700*1100*1500mm
-
Machine Weight:
-
1400 kg
-
Machine Brand:
-
Tonlita
-
After-sales Service Provided:
-
1 Year
-
Model:
-
TS25
-
Rated Load:
-
400kgs
-
Operating weight:
-
1400kg
-
Certification:
-
CE
-
Width with bucket(mm):
-
1070mm
-
No. of cylinders:
-
3 cylinder
-
Operating height:
-
2695mm
Product Description
Comfortable Operation: Fully hydraulic system, hydraulic pilot joystick
Economic and Environmental Protection: EPA certified Kubota three-cylinder engine, low noise, good fuel economy.
Efficient Operation: Well-known brand hydraulic system parts, smooth operation without frustration.
Reliable and Durable: Frame finite element analysis, 20% increase in structural part life.
Main Hydraulic Pump:
PWG
Drive Motor:
White
Multi-way Hydraulic Valve:
Hydrocontrol
Product Paramenters
|

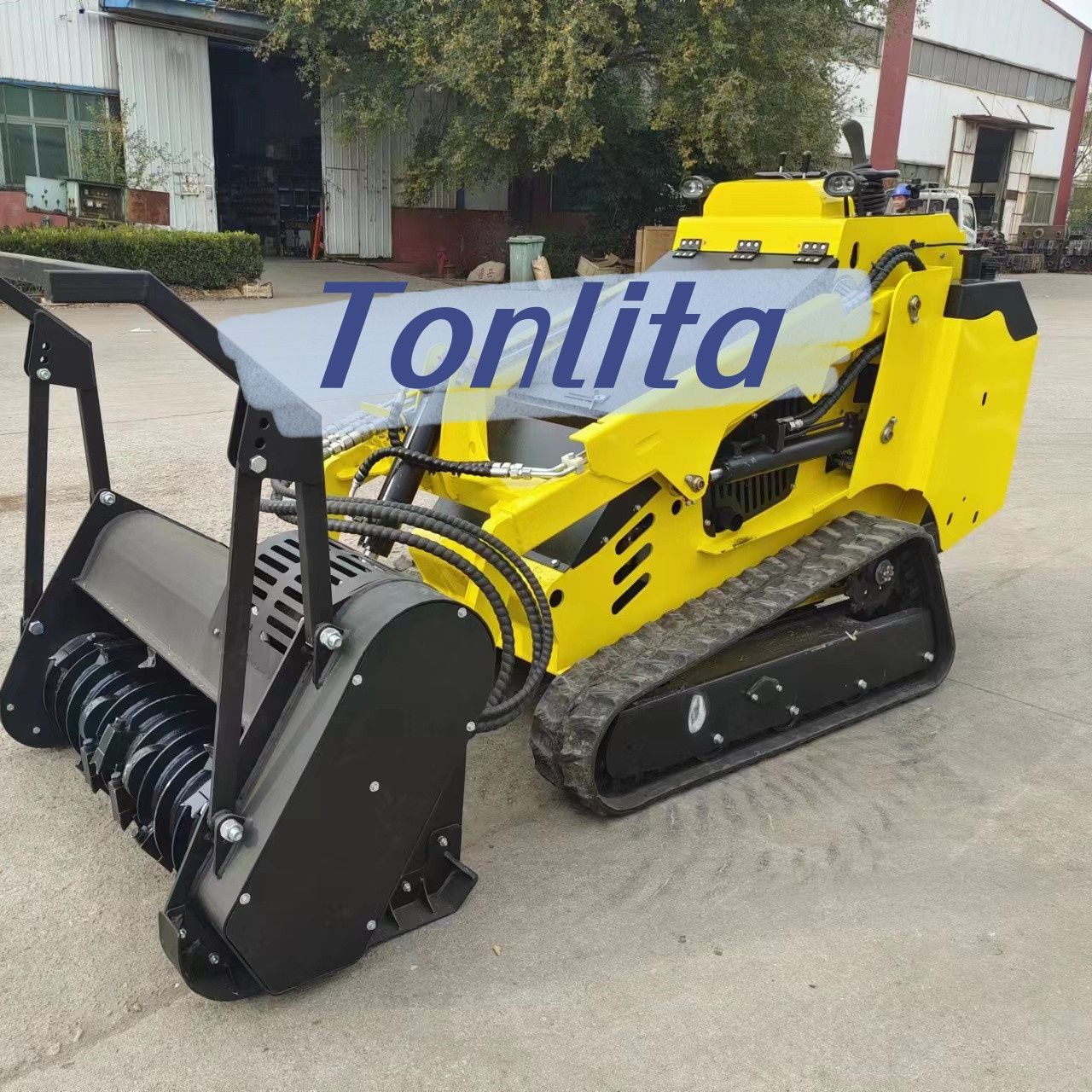

SPECIFICATIONS FOR TS25 diesel mini loader
|
|
|
||
|
Engine
|
Engine model
|
25hp Perkins diesel engine
|
||
|
|
No. of cylinders
|
3 cylinder
|
||
|
|
Net Power
|
18.2kw
|
||
|
Dimensions |
Operating height
|
2695mm
|
||
|
|
Height to bucket hinge pin
|
2000mm
|
||
|
|
Height to top
|
1496mm
|
||
|
|
Overall length with GP bucket
|
2694mm
|
||
|
|
Overall length without bucket
|
2067mm
|
||
|
|
Rated loading capacity
|
400kgs
|
||
|
|
Machine weight
|
1330kgs
|
||
|
Hydraulic system
|
Working system pressure
|
250 bar
|
||
|
|
Working system Flow rate
|
62.4 L/min
|
||
|
|
Driving System pressure
|
250 bar
|
||
|
|
Driving system Flow rate
|
62.4 L/min
|
||
|
TS25 Dimensions: 2700*1100*1500mm
|
|
|
||
|
Weight: 1400kg
|
|
|
||
