weihai titan zl10f front end mini wheel loader with snow plow

weihai titan zl10f front end mini wheel loader with snow plow

FOB Reference Price: Get Latest Price

≥1 Sets

US $6799

≥500 Sets

US $6599

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model:: Changchai 490

Engine type:: In-line arrangement, water-cooled, four-cycle diesel Engine

Rated Power:: 39KW

Rated Speed:: 2400 r/min (rpm)

Bucket Capacity:: 0.7m3

Bucket width:: 1700mm

Operating Weight:: 3500kg

Steering System:: Articulated Frame with hydraulic power steering

Min Turning Radius:: 4000mm

Driving System:: Hydraulic converter

Certification:: CE ISO

Quick Details

Engine Brand:: Quancai

Power:: 39KW

After-sales Service Provided:: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

Model:: Changchai 490

Engine type:: In-line arrangement, water-cooled, four-cycle diesel Engine

Rated Power:: 39KW

Rated Speed:: 2400 r/min (rpm)

Bucket Capacity:: 0.7m3

Bucket width:: 1700mm

Operating Weight:: 3500kg

Steering System:: Articulated Frame with hydraulic power steering

Min Turning Radius:: 4000mm

Driving System:: Hydraulic converter

Certification:: CE ISO

Item	Specifications
1.0 Engine Details
Model	Changchai 490
Engine type	In-line arrangement, water-cooled, four-cycle diesel Engine
Rated Power	39KW
Rated Speed	2400 r/min (rpm)
Fuel Consumption ratio in standard working condition	230g /kw. H
2.0 Transmission System
Type	Fixed-spindle Power shift
Shift gear control oil pressure	1.2~1.5MPa
Rated input speed	2500 (rpm)
3.0 Bucket
Bucket Capacity	0.7m3
Bucket width	1700mm
Bucket type	Heavy-duty bolt on teeth
Rated Load	1000kg
Operating Weight	3500kg
4.0 Overall Dimensions
Overall Length (Bucket on ground position)	4750mm
Overall Height	2500mm
Ground to Cab Top	2500mm
Dumping Height	2600mm
Min. Base to the Ground	230mm
Overall Width	1730mm
5.0 Operating Specifications
Steering System	Articulated Frame with hydraulic power steering
Min Turning Radius	4000mm
Driving System	Hydraulic converter
6.0 Brake System
Service Brake	Four Wheel Hydraulic spread-shoed brake
Parking Brake	Hand operated
7.0 Tyre	8.25-16
8.0 Wheel base	1580mm
9.0 Track base	1400mm

Product Description

Quality

We have experienced engineers with an average work experience of around 12 years.Each of our

loader undergoes a very strict test procedure to ensure that they are shipped without any problem.

Seivice

We are avaliable online 24 hours a day.We will provide you with product progress photos and video,If there are any product or technical problems,pls send me a video ,we support technical service for machine whole life

Warranty

Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.

Installation

TITAN can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

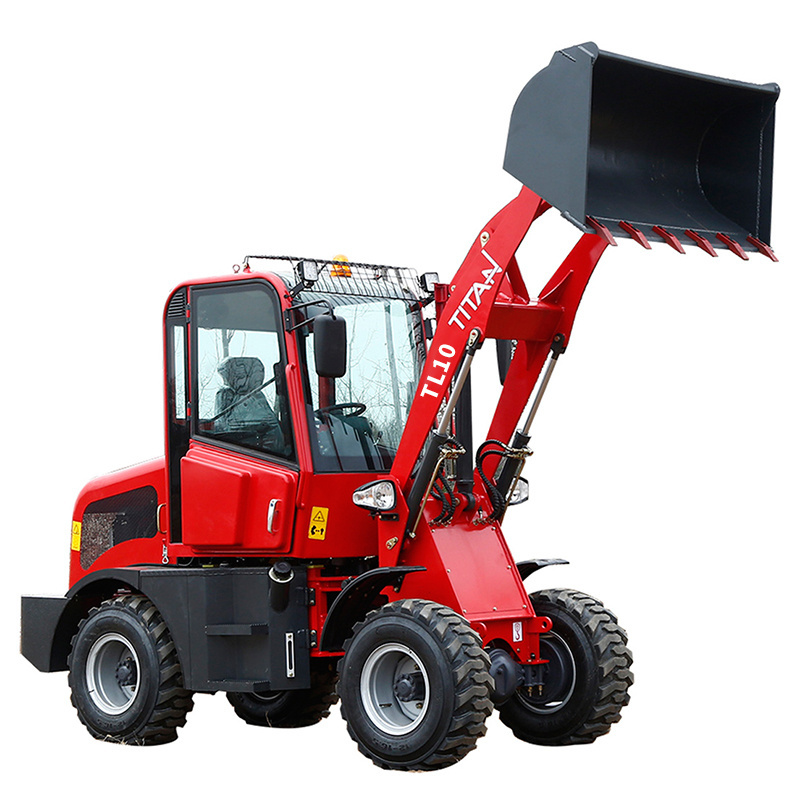

TL10 – 1000kg Rated Capacity Articulated Wheel Loader

Standard

Changchai 490 Engine. 4 Cylinder Engine. Automatic with Torque Converter. Standard Bucket. 220V Engine Pre-heater. Cabin Heater.
Air Pre-heater. Luxury Cabin. Adjustable Steering Wheel. Lock For Lfing And Steering Cylinder. Hydraulic Check System. Quick
hitch. Mechanical Joystick. Easy-damaged Spare Parts.

Optional Equipments
Video For Backward. Tipping Cabin. LED Lights. Euro III Engine. 3 Way or 4 Way Hydraulic Joystick. Varta Anti-free Battery.
Electric Joystick. 12- 16.5 Tire. 14- 17.5 Tire. 20.5/70-16 Tire. 31.5x15- 15 Tire. Floating Function. Other Attachment.

O ur large cabin

Our loader adopts a new cabwith a large space and a good viewand our glass is bulletproof and

thickened glass

Our powerful engine

Our engine is powerful engine respect to the standard of Euro III. The engine is equipped with a

preheating device, which is easy to start in winter

Adjustable stering wheel

The steering wheel is adjustable and can be moved back and forth according to the user's height habits

Air filters

Our air filters have been specially modified throghout the outside of the rear hood to prevent the engine frombeing affected when the working environmentis not good.

Accumulator

Our loader is equipped with an accumulator,which works very well. When we operate the big arm lift and landing it is very gentle. Without the installation,the whole car will shake very much

Quick hitch position indicator

We have installed the quick hitch position indicator,whenwe operate the quick hitch switch attachments in the cabin,the indicator is red, indicating that the attachment has been installed,

Accurate confirmation in the cabin,saving time ,more convenient and fast.

Pin shaft of composite steel

The interior of the pin shaft is made of composite steel ,not nylon,which is durable and long lasting.

Thick cushioning

Our cab floor is tightlyfitted to the frame and has thick cushioning to reduce shock to the loader.

soundproof cotton

We have soundproof cotton at tbe bottom of ,the cab and inside the hood for the effective insulation to prevent excessive temperature, It also deadens noise,reduces noise.

Multi-layer spray paint

Our loader has been subjected to electrophoretic treatment ,polished and sanding before painting.

we have painted three times to ensure the loader will not rust for many years

Certifications

Attachments

We have more than 40 kinds attachments,All kinds of attachments can be replaced,It can be customized to your requirements.

Packing & Delivery

We use container transportation,according to your requirements,for you to choose the appropriate collccation If container is too tighber,we will use pefilm for packing or pack it accordfng to customers special requset.

Our Company

Weihai Titan Heavy Machinery Co. Ltd

Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.

In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

We sincerely thank all the friend’s support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.

Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.

Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.

FAQ

Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 8 years .
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001 :2008 varified.

Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.

Q:What about Titan delivery term?
10-14 days after down payment received.

Q:What about the payment term?
30% advance payment, 70% balance by T/T.
