Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Woodworking
-
Weight (KG):
-
1100 KG
-
Power (kW):
-
6.6
-
Max.Cutting Height at 90°(mm):
-
120mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
ZD400T CE ISO factory wholesale panel saw
-
Keyword:
-
panel saw
-
Dimension of sliding table:
-
3200*415mm
-
Gross cut capacity:
-
3200 Mm
-
Max cutting height (90°):
-
125 mm
-
Tilting saw group:
-
0-45°
-
Main saw motor power:
-
5.5 kw
-
Weight:
-
1100 KGS
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongding
-
Usage:
-
wood working
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3250*3150*900mm
-
Application:
-
Woodworking
-
Weight (KG):
-
1100 KG
-
Power (kW):
-
6.6
-
Max.Cutting Height at 90°(mm):
-
120mm
-
Max.Cutting Height at 45°(mm):
-
55mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Product name:
-
ZD400T CE ISO factory wholesale panel saw
-
Keyword:
-
panel saw
-
Dimension of sliding table:
-
3200*415mm
-
Gross cut capacity:
-
3200 Mm
-
Max cutting height (90°):
-
125 mm
-
Tilting saw group:
-
0-45°
-
Main saw motor power:
-
5.5 kw
-
Weight:
-
1100 KGS

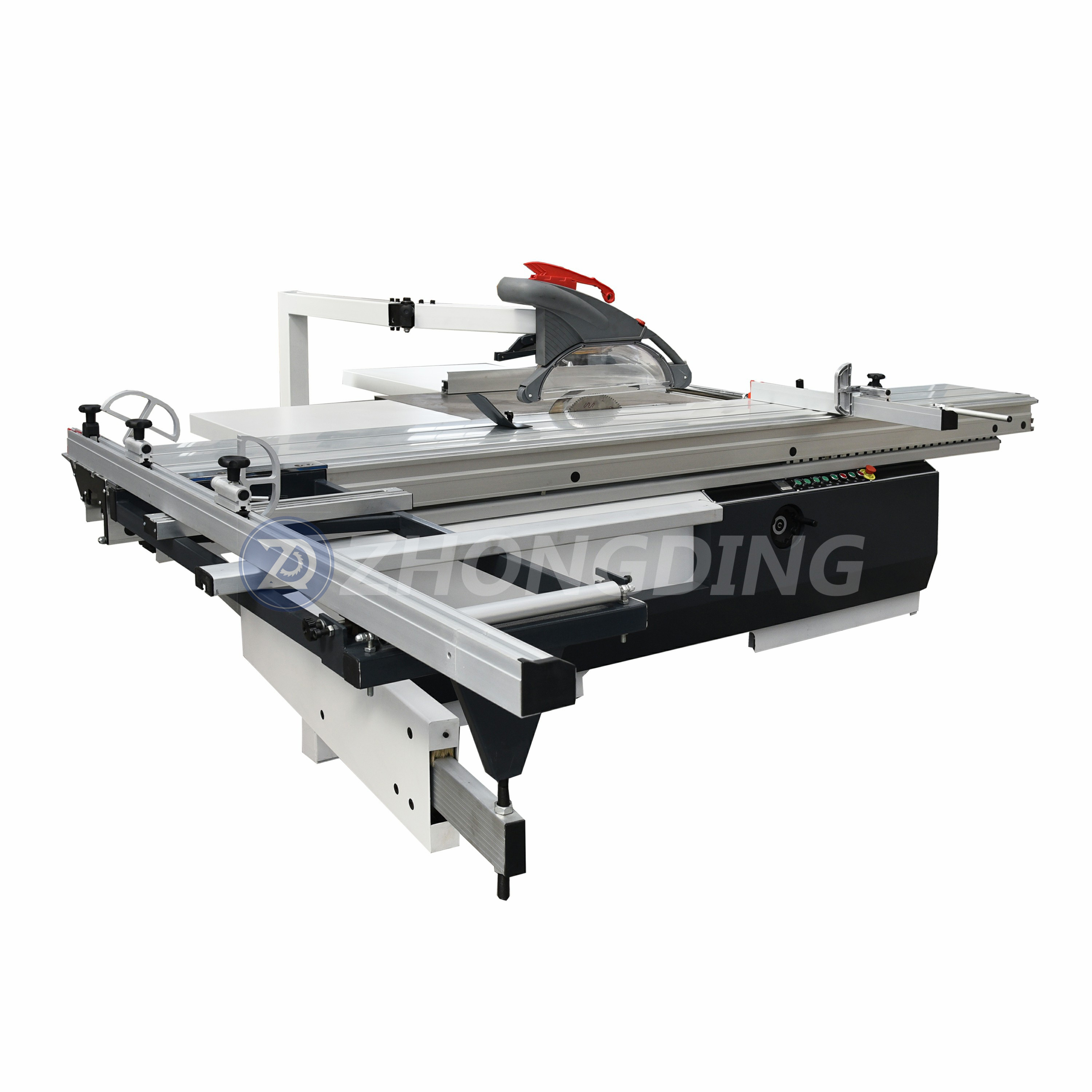

ZD400T Precise Wood Saw Machines Wood Cutting Machine Sliding Table Saw
ALTENDORF Structure
Designed from Germany. The Altendorf structure is currently one of the best designs for sliding table saws.Sliding is more stable and laborsaving.
European Dust hood
It is convincing to use the big dust hood with fluid mechanics optimization structure . Dust hood apply to Max.Cutting height 125mm and can swing to the side totally. 80% larger than ordinary dust hood
Electric Box
The independent electric box is dustproof and has a low power failure rate. High-quality electrical components, more sensitive and
has longer life .
has longer life .
Sawing combination structure
U
se high-standard motors, strong and powerful. Three speeds can be adjusted manually. The sawing assembly of this sliding table saw is designed to ensure precise sawing. The sawing structure adopts hydraulic lever to lift/tilt to ensure stability and service life, and high positioning accuracy.
Control panel
Use high-quality buttons, easy to control and not easy to break down, accurate control of lift/tilt changes. One-key start-stop
button. Protect workers' safety Digital display of inclination degree.
button. Protect workers' safety Digital display of inclination degree.
Angle ruler
Heavier and more precise. It is 50% larger than the ordinary angle ruler. Some other brand saws even do not contain
an
an
Pressing device
Assist the worker to press the wooden board on the sliding table. Keep the board stable. Some other brand saws
even do not contain an press device.
even do not contain an press device.
Magnetic scale/ Rangefinder (Optional)
The magnetic scale can control the accuracy to 0.01mm. Suitable for use in pursuit of higher precision.
Dust Collector（Optional）
3
Kw motor
Double bags
Perfectly adapted to ZD400T
|
Technical Data of Sliding Table Panel Saw:
|
|
|
|
Dimension of sliding table
|
3200x415 mm
|
|
|
Gross cut capacity
|
3200 mm
|
|
|
Width of cut between saw blade and rip fence
|
1250 mm
|
|
|
Tilting saw group
|
0-45°
|
|
|
Diameter of main saw blade
|
400 mm
|
|
|
Max cutting height (90°)
|
125 mm
|
|
|
Speed of main saw spindle
|
3000/4000/5000 r.p.m
|
|
|
Main saw motor power
|
5.5 kw
|
|
|
Main spindle diameter
|
30 mm
|
|
|
Diameter of scoring saw blade
|
120 mm
|
|
|
Speed of scoring saw spindle
|
8000 r.p.m
|
|
|
Scoring saw motor power
|
1.1 kw
|
|
|
Scoring saw spindle diameter
|
22 mm
|
|
|
Lifting of saw blade
|
Electrical lifting
|
|
|
Cutting degree readout
|
Digital readout
|
|
|
Weight
|
1100 KGS
|
|
|
Overall dimension
|
3250x3150x900 mm
|
|
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
