Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
XIANGYUXIANG
-
Product name:
-
RFID Patrol Token Tag
-
material:
-
ABS , plastic
-
Chip:
-
s50 s70 / n213/ f08
-
Protocol:
-
ISO 14443A / ISO 15693, ISO 14443A
-
User Data space:
-
512B, 888B 1K 4K 8K
-
ECP space:
-
90-480B
-
Reading Distance:
-
4-10cm(depend on reader)
-
Working temperature:
-
-20℃ to +120℃
-
Application:
-
Asset Management
-
Customized support:
-
chip
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Communication Interface:
-
RFID, NFC
-
Frequency:
-
13.56Mhz
-
Place of Origin:
-
China
-
Brand Name:
-
XIANGYUXIANG
-
Product name:
-
RFID Patrol Token Tag
-
material:
-
ABS , plastic
-
Chip:
-
s50 s70 / n213/ f08
-
Protocol:
-
ISO 14443A / ISO 15693, ISO 14443A
-
User Data space:
-
512B, 888B 1K 4K 8K
-
ECP space:
-
90-480B
-
Reading Distance:
-
4-10cm(depend on reader)
-
Working temperature:
-
-20℃ to +120℃
-
Application:
-
Asset Management
-
Customized support:
-
chip

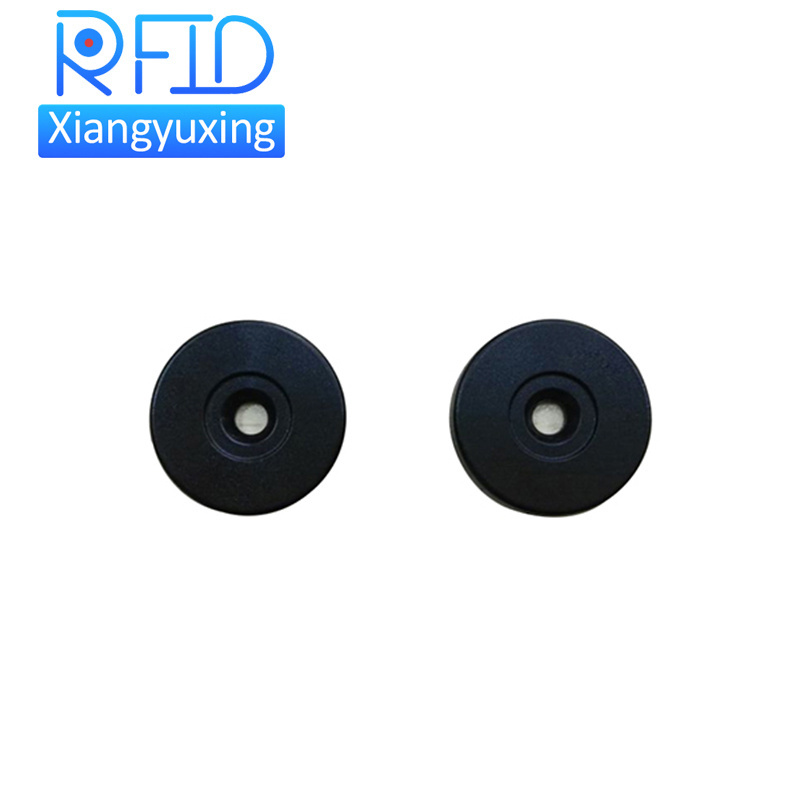

RFID Patrol Token Tag Coin Tag with Screw Hole Nfc Abs Passive HF 13.56mhz for Industry / Construction
RFID Partol Tag is laminated with PVC or ABS, water-proof tag. The tag could be with adhesive back, this RFID tag could be mounted on nonmetallic surface. And because of our Direct Bonding technology the surface would more flatter that could have great printing performance. Silk screen and Offset printings are available upon request.The material could be transparent PVC and white PVC ,or ABS.
Features:
1).Durable and can work in harsh environment.
2).Waterproof.
3).Moisture proof.
4).Anti shock.
5).High temperature resistance.
6).Anti metal optional.
Technical Specification:
| Product name | Rfid patrol tag, NFC token tag/Coin tag |
| Product Description |
Standard ABS waterproof tags Can customize with pptional features: *complete water/ oil proof *anti-metal layer * 3 m back adhesive |
| Material | ABS |
| Installation |
Adhesive paste with strong 3 M glue, or screw Can be used on warehouse managerment, property tracking, can be installed on pallet, the cartons, machine etc. |
| Size |
Round shape, normal diameter in 25/30/34/40/52mm Customize size available |
| Chip |
LF: TK4100, EM4100, EM4200, EM4305, T5577 HF: FM11RF08, 1K S50, S70, Ult, sli, N213/215/216, etc UHF: UC G2XL , H3, M4 ,M5, etc |
| Reading distance | 0-6m, according to reader and chip |
| Operating temperature | -25℃~60℃ |
| Customize |
Size and logo |
| Application | Warehouse managerment, property tracking, can be installed on pallet, the cartons, machine etc. |
