Quick Details
-
Brand Name:
-
Secukey
-
Model Number:
-
CF3-WiFi
-
Keyword:
-
Touch keypad access control
-
Card Type:
-
125Khz EM Card
-
Wiegand:
-
Wiegand 26-44,56,58 bits output (default: 26 bits)
-
Working Mode:
-
Standalone,Controller,Reader
-
Material:
-
Metal case
-
Working Temperature:
-
-40oC-60oC
-
Operating Voltage:
-
12-18V DC
-
Read range:
-
3-8 cm
-
Dimension:
-
L14.8*W43.5*H2.2cm
-
Warranty:
-
3 Years
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Secukey
-
Model Number:
-
CF3-WiFi
-
Keyword:
-
Touch keypad access control
-
Card Type:
-
125Khz EM Card
-
Wiegand:
-
Wiegand 26-44,56,58 bits output (default: 26 bits)
-
Working Mode:
-
Standalone,Controller,Reader
-
Material:
-
Metal case
-
Working Temperature:
-
-40oC-60oC
-
Operating Voltage:
-
12-18V DC
-
Read range:
-
3-8 cm
-
Dimension:
-
L14.8*W43.5*H2.2cm
-
Warranty:
-
3 Years

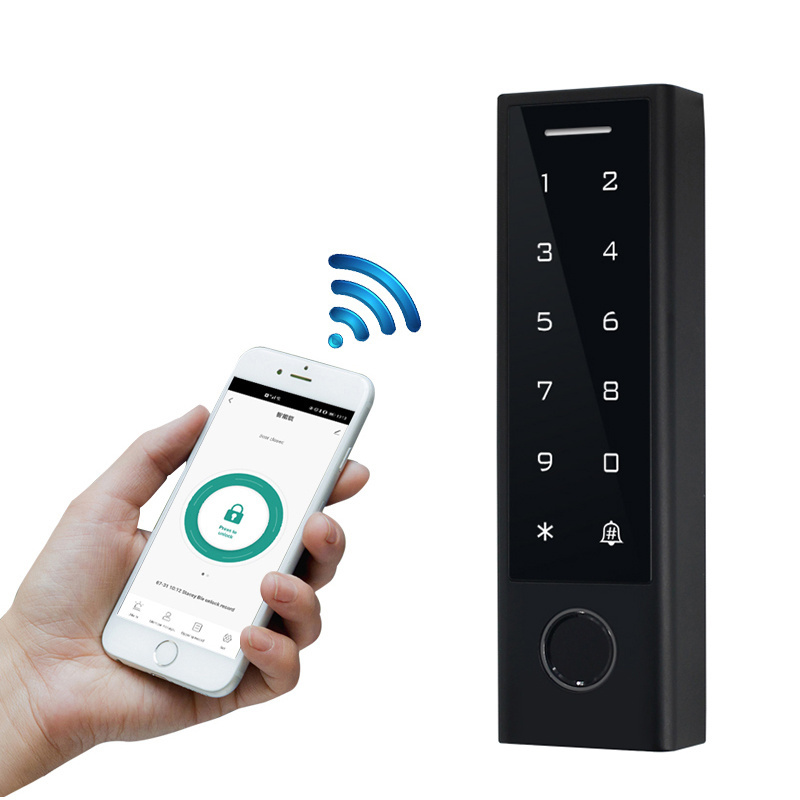

Waterproof Touch Fingerkey & Reader
>Capacitive Fingerprint Sensor,touch keypad
>One relay,1000 users (988 common users + 2 panic users +10 visitor users)
>Card Type:125KHz EM Card/13.56Mhz Mifare Card
>Wiegand 26~44bits,56bits,58 bits input & output
>Can be used as Wiegand reader with LED & buzzer output
>User data can be transferred (except fingerprint users)
>Integrated alarm & Buzzer output
>Built-in light dependent resistor(LDR) for anti tamper
>Backlit keypad,can set automatic OFF after 20 seconds
>2 devices can be interlocked for 2 doors
>Bluetooth function or Big user capacitive for optional
|
User Capacity
Common User
Visitor User Panic User |
1000
988 (100 Fingerprint Users + 888 PIN/Card Users)
10
2 |
| PIN Length | 4~6 digits |
|
Operating Voltage
Idle Current
Active Current |
12~18V DC
≤ 60mA
≤ 150mA |
|
Proximity Card Reader
Radio Technlogy Read Range |
EM
125KHz 2~6cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
|
|
Wiegand Interface
PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-30°C ~ 60
°
C (-22
°
F ~ 140
°
F)
0%RH ~ 98%RH
|
|
Physical
Color
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy
Sliver & Black, Black color optional
L148 x W43.5 x H22 (mm)
330g
405g
|
