Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
GUA
-
Brand Name:
-
Sembsun
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Product name:
-

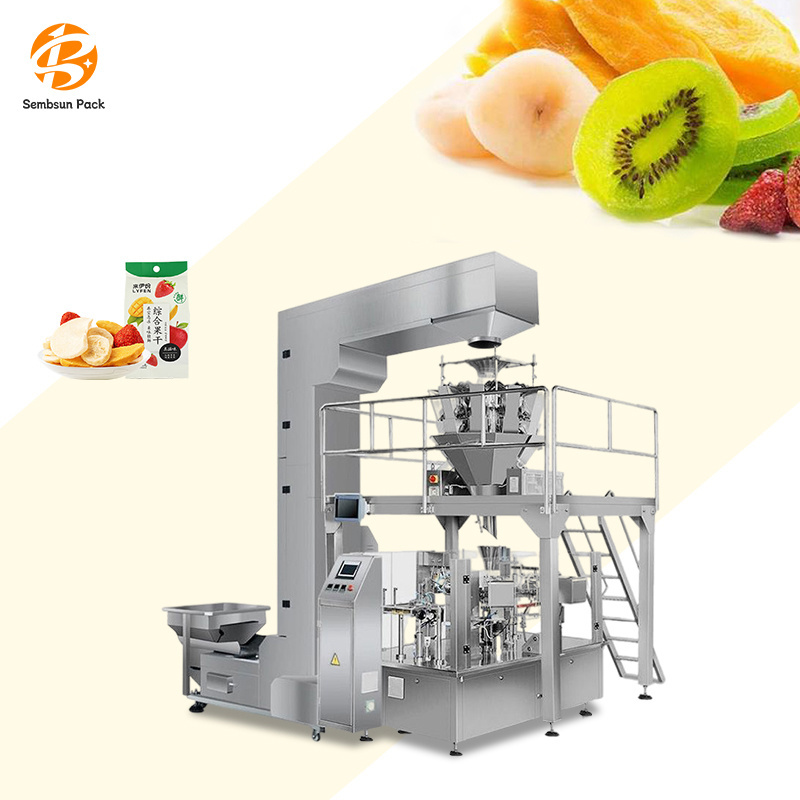

rotary doyapck packing machine
-
Material:
-
Stianless Steel
-
Bag type:
-
premade bag, doy bag, 3 sides sealing bag, irregular
-
Bag length:
-
160-500 mm
-
Bag width:
-
65-450 mm
-
Packing speed:
-
30-60bags/min
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Usage:
-
Food Snack
-
Sealing type:
-
Hot Sealing
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING, counting
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Weight (KG):
-
400
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
GUA
-
Brand Name:
-
Sembsun
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Product name:
-
rotary doyapck packing machine
-
Material:
-
Stianless Steel
-
Bag type:
-
premade bag, doy bag, 3 sides sealing bag, irregular
-
Bag length:
-
160-500 mm
-
Bag width:
-
65-450 mm
-
Packing speed:
-
30-60bags/min
-
Main Function:
-
Weighing Forming Filling Sealing
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Usage:
-
Food Snack
-
Sealing type:
-
Hot Sealing
Main Features：
1. Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to makesure the machine operates easily and does accurately.
2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3. Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4. The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
2. The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..
3. Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4. The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
|
Machine model
|
D-200W
|
D-260W
|
D-300W
|
D-450W
|
|||
|
Working position
|
8 procesing stations
|
|
|
|
|||
|
Bag width
|
W：65~200mm
|
W：65~260mm
|
W：320mm
|
W：450mm
|
|||
|
Bag length
|
L：160-380mm
|
L：160~450mm
|
L：460mm
|
L：500mm
|
|||
|
Speed
|
25~55 B/M
|
25~55B/M
|
20~45B/M
|
15~40B/M
|
|||
|
Power supply
|
110/220/380 50/60Hz
|
|
|
|
|||
|
Machine size
|
1900*1300*1500mm
|
2000*1570*1700mm
|
2100*1600*1700mm
|
2200*1700*1700mm
|
|||
|
Machine weight
|
1000kg
|
1100kg
|
1200kg
|
1500kg
|
|||
|
Material
|
304SUS
|
304SUS
|
304SUS
|
304 SUS
|
|||
|
Power
|
2.5kw
|
2.5kw
|
2.7kw
|
3kw
|
|||
|
Bag types
|
Stanup pouch，ziplock bag，3/4 sides sealing bag，hand-hold pouch，Spout bag，paper pouch，ect
|
|
|
|
|||
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: How does your factory do regarding quality control?
A: We pay much attention on quality controlling and strictly follow the Professional standard forms from getting order, parts
procession,assembly for whole set of machine and debug to the shipment.
Q: Where is your factory located? How can I visit there?
A: Our factory located at Guangdong province ,China.You can fly to Guangzhou Baiyun air port.We will arrange to pick you up from
the airport ;it is Around 30 mins from the airport to our factory by car.Or you can take fast Train to Guangzhou from other
countries in China.We will pick you up from the station.
Q: What’s the service and guarantee can you offer?
A: One year guarantee for main parts of machine like PLC,touch screen,ect;Machine installation and worker training service;Free
technical support for lifelong;Material support.
A: We are a factory and manufacturer.
Q: How does your factory do regarding quality control?
A: We pay much attention on quality controlling and strictly follow the Professional standard forms from getting order, parts
procession,assembly for whole set of machine and debug to the shipment.
Q: Where is your factory located? How can I visit there?
A: Our factory located at Guangdong province ,China.You can fly to Guangzhou Baiyun air port.We will arrange to pick you up from
the airport ;it is Around 30 mins from the airport to our factory by car.Or you can take fast Train to Guangzhou from other
countries in China.We will pick you up from the station.
Q: What’s the service and guarantee can you offer?
A: One year guarantee for main parts of machine like PLC,touch screen,ect;Machine installation and worker training service;Free
technical support for lifelong;Material support.
