Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE209
-
Name:
-
Quartz glass plate/disc/window/sheet
-
Other name:
-
Quartz glass plate/disc/window/sheet
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Electric light,Laser
-
Thickness:
-
0.25-20
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE209
-
Name:
-
Quartz glass plate/disc/window/sheet
-
Other name:
-
Quartz glass plate/disc/window/sheet
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Quartz glass plate/disc/window/sheet
We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: A ccept customize according to different diameter ,thickness,length or sending your drawing .
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity : SiO2> 99.99% .
2) Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4) Health care and environmental protection .
5)No air bubble and no air line.
6) Excellent electrical insulator.
Typical Application:
- Electric light
- Laser
- Lenses
- Military
- Metallurgical
- optical instrument
- high temperature window
- environmental protection and other fields
Parameter of Quartz glass plate/disc/window/sheet:
| Model | Quartz glass plate/disc/window/sheet |
| Brand | Resucerial |
| Outer Diameter | 1.50-450mm |
| Material | high purity >99.95%(SiO2) |
| Wall Thickness | 0.30-20mm |
| Length | 10-4500mm |
| Shape | Straight, C, U,Round,Pear,spiral,domed, closed |
| Softening Point | 1680℃ |
| Annealing Point | 1210℃ |
| Strain Point | 1120℃ |
| Density | 2.2g/cm3 |
| Hardness | 5.5-6.50Mohs' |
| Design Tensile Strength | 4.80x 10 7 N/m^2 |
| Design Compressive Strength | 1.10x 10 9 N/m^2 |
|
Cofficient Of Thermal
Expansion(20-320℃) |
5.70x 10 -7 cm/cm.℃ |
| Thermal Conductivity(20℃) | 1.40W/m.℃ |
| Specific Heat(20℃) | 670J/Kg.℃ |
| Electrical Resistivity(350℃) | 7x 10 7 ohm.cm |
| Dielectric Constant | 3.75 |
| Dielectric Strength | 5x 10 7 V/m |
Clear Fused Quartz Glass Tube
|
Chemical Composition |
||||||||||
|
AL |
K |
Na |
Li |
Ca |
Mg |
Cu |
Mn |
Pb |
B |
Ti |
|
20 |
3.5 |
3.5 |
1.0 |
2.0 |
0.5 |
0.3 |
0.5 |
<0.01 |
<0.2 |
2.0 |

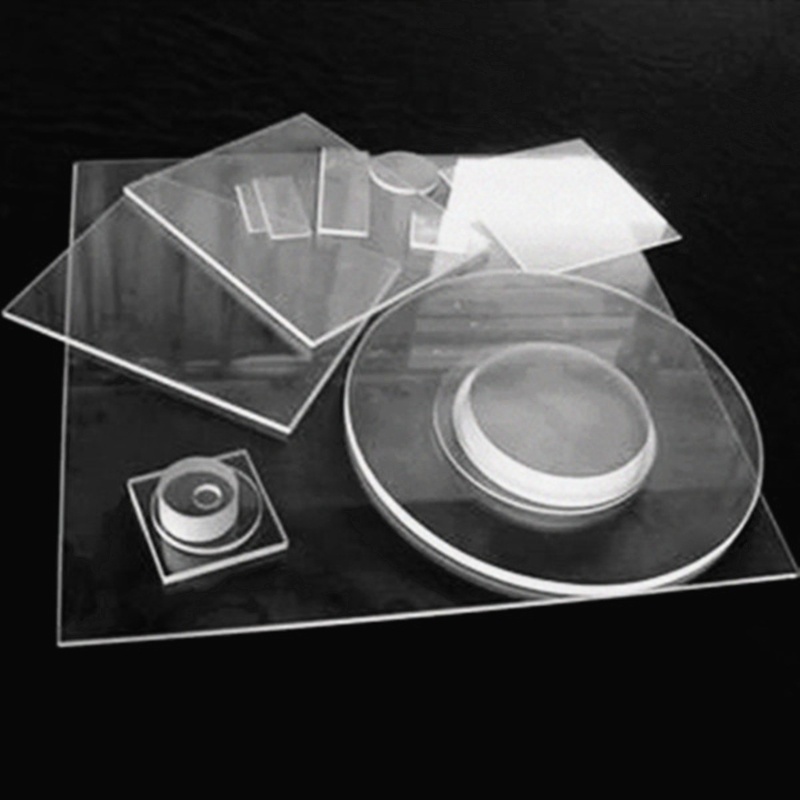

Photos of Quartz glass plate/disc/window/sheet :
