Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Different Colors:
-
Red,Blue,Green,Black,Yellow,Orange,White
-
2 stroke Engine:
-
49cc 50cc
-
How to start:
-
Pull start or electric start
-
Brake system:
-
All disc brake
-
Suspension:
-
Spring shock and swing arm
-
Tire size with butterfly figure:
-
4inch or 6inch
-
Product size:
-
990*650*610mm
-
User age:
-
Less than 17years old
-
MAX SPEED:
-
45km/h
-
Fuel tank capacity:
-
1.5L
Quick Details
-
Displacement:
-
50CC
-
Brand Name:
-
Zhenglong
-
Model Number:
-
ZLATV-007
-
Place of Origin:
-
Zhejiang, China
-
Different Colors:
-
Red,Blue,Green,Black,Yellow,Orange,White
-
2 stroke Engine:
-
49cc 50cc
-
How to start:
-
Pull start or electric start
-
Brake system:
-
All disc brake
-
Suspension:
-
Spring shock and swing arm
-
Tire size with butterfly figure:
-
4inch or 6inch
-
Product size:
-
990*650*610mm
-
User age:
-
Less than 17years old
-
MAX SPEED:
-
45km/h
-
Fuel tank capacity:
-
1.5L
Mini ATV Specs
| Dimension (L*W*H) | 990*650*610mm |
| Max Speed | 40km/h |
| Seat height | 520mm |
| Wheelbase | 700mm |
| Rated Loading Capacity | 80kgs |
| Mini Ground Clearance | 440mm |
| Front Tire | 4.10-6" |
| Rear Tire | 4.10-6" |
| Braking Method | |
| Rear disc brake | |
| Suspension | Front and rear spring suspension |
| Drive Train | Chain Drive |
| Engine: | 49cc, single cylinder, air-cooled, 2 strokes |
| Tank Capacity | 1.5L |
| Bore*Stroke | 44*34mm |
| Max. Power | 1.6kw/7000 r/min |
| Max Torque | 2.2 N.m /6000r/min |
| Start Mode | Alloy pull start |
| G.W/N.W | 29kgs |
| Packing Size(L*W*H) | 980mmX580mmX520mm |
| Container Loading Capacity | 96pcs/20 GP |
| 192pcs /40GP | |
| 240pcs/40'HQ |

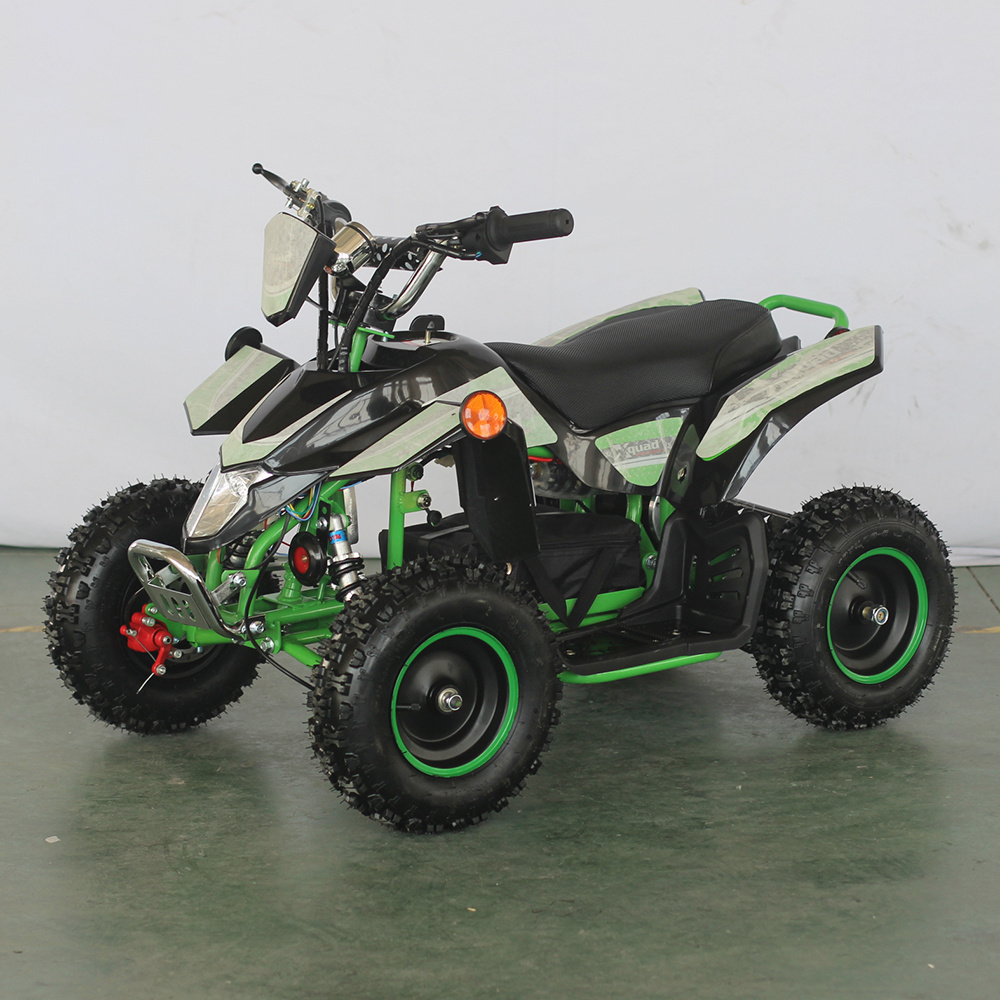

Mini quad details
More details,please contact me on Wechat:JW15069700487
COLOR:
Packing Picture
Rear axle is fixed by screw so that it can't move casually during the driving way.
QC system&OEM
Our factory has first-class equipment and experienced engineers, so don't worry about the quality of the goods.
Besides, we welcome your OEM's ideas.
