Product Details

{{item.text}}

Quick Details

Brand Name:: DOD

Model Number:: DCP

Work Time (h):: 24

Max PV Power:: 480W

Max PV Voltage:: 50V

Certificate:: CE ROHS

Warranty:: 1 YEAR

Control Mode:: PWM

Functions:: Light Time romote Control

Voltage:: 12/24v auto

Full Protection:: YES

Approval:: CE / ROHS

Suitable Battery:: lead storage batteries; AGM, GEL

ODM:: Available

OEM:: Available

Rated Current:: 10A 20A

Quick Details

Type:: PWM

Application:: Charger Controller, Lighting Controller, Solar System Controller, Solar Working Station

Place of Origin:: Sichuan, China

Brand Name:: DOD

Model Number:: DCP

Work Time (h):: 24

Max PV Power:: 480W

Max PV Voltage:: 50V

Certificate:: CE ROHS

Warranty:: 1 YEAR

Control Mode:: PWM

Functions:: Light Time romote Control

Voltage:: 12/24v auto

Full Protection:: YES

Approval:: CE / ROHS

Suitable Battery:: lead storage batteries; AGM, GEL

ODM:: Available

OEM:: Available

Rated Current:: 10A 20A

best marine solar charge controller pwm ip67 solar street light 10a 12v 24vdc charge controller garden solar energy regulator

Why Choose US ?

1. Factory Directly : Over 20 different kinds of controller for choose ,Price is good ,Quality can be controlled.

2. Certificate : Our charge controller got SGS testing certificate ,CE ,ROHS as well

3. OEM and cooperating with an famous brand in Europe. We have pass strict factory inspection Audit by third party institution and client auditor. During the cooperation with famous brand client, we know what customer want and we know how to make 100% quality control.
4. We can customize specification like current ,voltage ,max input voltage etc as client request ,to supply some certain function and place.

5. sample is available .
6. Fast Delivery , Below 5000 pieces controller delivery in 2 weeks.
7. Trade assurance supplier , quality and on time shipment guaranteed.

Details Images

Product Presentation

Hilight Functions :

* Waterproof : IP68 . Aluminum hull suitable

for most kind of extreme environment.

* 4-stage charging management : Bulk- ABS-

Float + Equalize when low voltage reconnect * 5 load working mode settable : Light control

Light+time control (1-11hours); 3 stage time

and power control ;Manually ; Load always

on ; Test mode

* Infrared remote control , convenient for

operation.

3 stage Time and Power Control

* set the load working time is 3 period during a

night , each period could be from 0-23 hours

* set different output power in these 3 period

working time , output power could be from

0-100% .

Full Protection:

* Over temperature protection

* Over voltage protection

* Low voltage protection

* Over load protection

* Short circuit protection

* Reverse polarity connection protection

High Quality Material :

* using superior Aluminum material hull , with impact resistance, high flash point, Anti-Aging characters, which improved the controller using life and security .

* Imported IC components , which makes the controller with very steady performance , no need any maintaince.

Large Terminal :

* using upgraded thick bottom plate , and perfect design of the mosfet , which makes the radiating improved 30% efficiency , ensure the controller working with its best performace

* Large connection terminal ,to ensure stand enough current . very easy for cable connection .also can low down the voltage drop , decrease the wastage .

LED Indicator

Showing charging , battery and load status

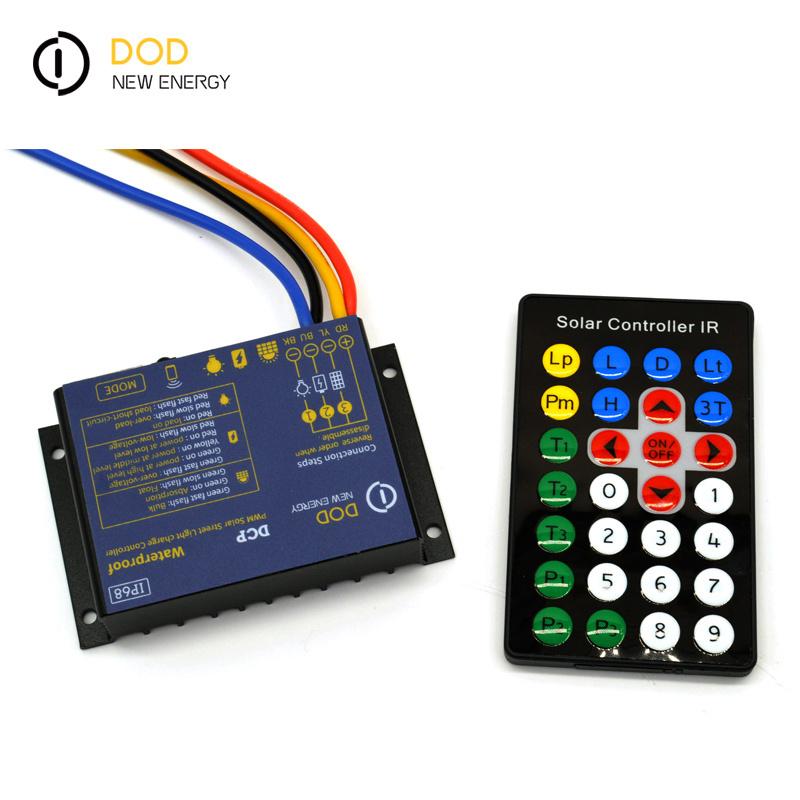

Reomote Controller

Product Paramenters

Model	DCP1205	DCP1210	DCP1220
Battery Voltage	12V/24V Auto Select
Charge & Load Current	5A	10A	20A
Charge mode	PWM, Time and Lighting Control
Waterproof Degree	IP68
Maximum solar voltage	40V
Maximum output power	60W/120W	120W/240W	240W/480W
Protections	Reverse polarity connection of the solar panels; Reverse polarity connection of the battery; Over-charge ; Over-discharge; Over-load ; Over-temperature; Short-circuit
Overload Protection	shut down after 60s in case of 110%-130% load , shut down after 5s in case of 130%-160% load , Short circuit: immediate shut
Self-consumption	<5mA
Temperature compensation	Yes
Operating temperature	-20°C to +50°C (full load)
Humidity range	≤95% (N.C.)
Dimension	825220mm	825220mm	1047828mm
Weight	180g	180g	300g

Battery Charging Parameters
Battery Voltage	12V	24V
Over-Charge	17V	34V
Bulk-Recharge	13.2V	26.4V
Equalize	14.8V	29.6V
Bulk	13.6V	27.2V
Absorption	14.2V	28.4V
Float	13.8V	27.6V
Low-voltage Disconnect	11.2V	22.4V
Low-voltage Reconnect	12.6V	25.2V

Certificate

Related Products

Company Introduction

DOD New energy is high technology company which specialized in solar power system,wind power system and related products. Main products contains solar charge controller,wind generator,solar panel,power inverter ,battery etc and most export to Europe and America. Till now we have got ISO, TUV, CE, ROHS,IEC,SGS,UL Approval.
To supply the suitable and high efficient power system is DOD New Energy ‘s Goal. We will use our supply chain, professional knowledge and experience to help our customer to save Souring time and costs.

Packing&Shipping

FAQ

1.How to buy a sample ?
Customer need to choose the controller model ,tell us your battery voltage and Ampere you need , then we will suggest you a suitable controller. Delivery time will be 5-10 days below 10 pieces sample. Samples will delivery be International express like FedEx ,UPS,DHL . Pls let us know your shipping address to confirm the shippingcosts.

2. What is the payment terms ?
For below 1000 USD, we accept Paypal ,Bank T/T .
For Above 1000 USD, We Accept Bank T/T, Irrevocable L/C.
We welcome client to place order through Alibaba Trade Assurance . Trade Assurance can give customer 100% on-time shipment protection ,100% Product quality protection,100% Payment protection . Our Company Trade Assurance amount limit is over 50000 USD. Customer can place order without worried.

3. What is controller warranty ?
All our controller are warranty is 12 months . Within 1 year if found defective, we offer free new controller for replacement.
