Quick Details
-
Power (kW):
-
75
-
Weight (KG):
-
7500
-
Other name:
-
copper cable recycling machine
-
Certification:
-
ISO CE
-
Model:
-
copper cable recycling machine
-
Color:
-
Optional
-
Port:
-
Shanghai
-
Shaft Design:
-
single
-
Power Supply:
-
380-440V
-
Application:
-
copper cable
-
Local Service Location:
-
Canada,United States,Saudi Arabia,Australia,South Africa
-
After Warranty Service:
-
Field maintenance and repair service,Online support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
Hot Product
-
Brand Name:
-
Enerpat
-
Power (kW):
-
75
-
Weight (KG):
-
7500
-
Other name:
-
copper cable recycling machine
-
Certification:
-
ISO CE
-
Model:
-
copper cable recycling machine
-
Color:
-
Optional
-
Port:
-
Shanghai
-
Shaft Design:
-
single
-
Power Supply:
-
380-440V
-
Application:
-
copper cable
-
Local Service Location:
-
Canada,United States,Saudi Arabia,Australia,South Africa
-
After Warranty Service:
-
Field maintenance and repair service,Online support
Product Description

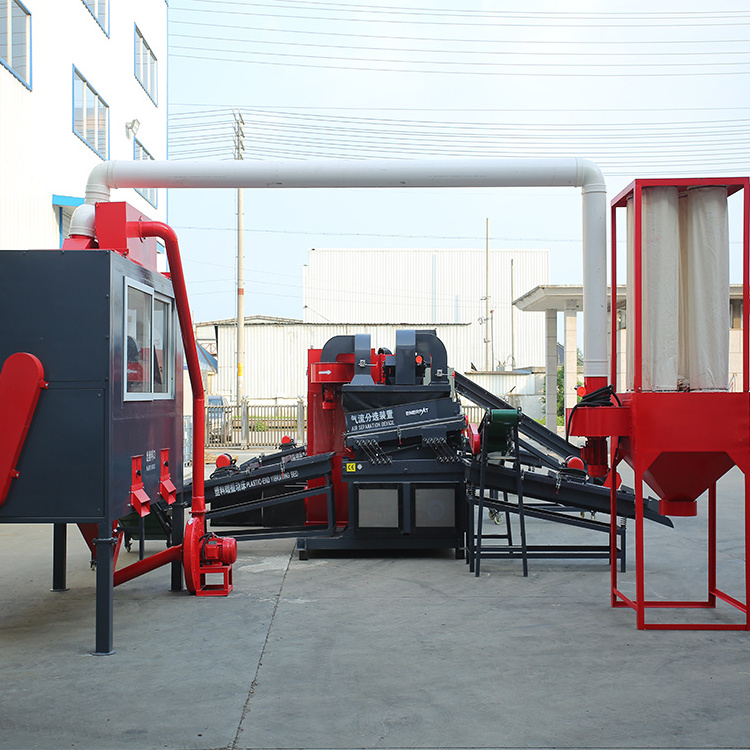

Cable Recycling Line
ENERPAT
Waste Cable Recycling Line
designed for crushing cables which diameter below 20 mm,separating copper and plastic,capacity from 100 kgs/h up to 2000 kgs/h. The separating rates up to 99%. Adopting UK technology,100% high quality with competitive price.
Details
Single Shaft Shredder
* Shredding cables into smaller size,can improve the Granulator throughput capacity efficiently.
* International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc
* German material blades,rotor blade material DC 53,fixed blade material D 2.
* International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc
* German material blades,rotor blade material DC 53,fixed blade material D 2.
Feeding Conveyor
* Conveying the shredded cables from single shaft shredder to granulator.
* Thick rubber belts,with steps on it
* Inverter motor drive the conveyor shaft directly,speed adjustable.
* Thick rubber belts,with steps on it
* Inverter motor drive the conveyor shaft directly,speed adjustable.
Granulator
* Crushing cables into small size below 3 mm
* International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc.
* German material blades,rotor blade and fixed blade material D 2.
* The machine structure is integrally processed and bored by a high-precision CNC machining center to ensure that the equipment can run smoothly under high load for a long time and prolong the service life of the transmission parts.
* International Top Brand machine parts like SIEMENS motor,BONENG gearbox,SCHNEIDER electric system,SKF bearing,etc.
* German material blades,rotor blade and fixed blade material D 2.
* The machine structure is integrally processed and bored by a high-precision CNC machining center to ensure that the equipment can run smoothly under high load for a long time and prolong the service life of the transmission parts.
Air Separator
* Separating the copper and plastic by this air separator
Dust Collection System
* Automatic pulse dust removal,can collection dust efficiently from the whole production line.
Applications
Technical Data Sheet
|
Model
|
WG-400S
|
WG-600S
|
WG-800S
|
|
Motor Power
|
27 KW
|
41 KW
|
90 KW
|
|
Cables Range
|
< 20 mm diameter cables
|
Diameter 0.2-20 mm
|
Diameter 0.2-30 mm
|
|
Capacity
|
1-2 tons per day
|
3-4 tons per day
|
7-12 tons per day
|
|
Machine Size
|
4400×2700×2450 mm
|
5000x3000x2500 mm
|
11500x9500x2300 mm
|
|
Machine Weight
|
2500 kgs
|
4000 kgs
|
7000 kgs
|
