Quick Details
-
Voltage:
-
220v
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2430*1200*2300
-
Weight (KG):
-
1220
-
Name:
-
dryer drying machine
-
Usage:
-
Industrial Usage
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Advantage:
-
Low Consumption High Efficiency
-
Heating source:
-
Steam+electricity
-
Dryig process:
-
Continuous Automatic Drying
-
Package:
-
Standard Package
-
MOQ:
-
1set dryer drying machine
-
Temperature range:
-
RT+10-250
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Voltage:
-
220v
-
Power:
-
50KW
-
Dimension(L*W*H):
-
2430*1200*2300
-
Weight (KG):
-
1220
-
Name:
-
dryer drying machine
-
Usage:
-
Industrial Usage
-
Function:
-
Food Vegetable Fruit Dehydrator
-
Advantage:
-
Low Consumption High Efficiency
-
Heating source:
-
Steam+electricity
-
Dryig process:
-
Continuous Automatic Drying
-
Package:
-
Standard Package
-
MOQ:
-
1set dryer drying machine
-
Temperature range:
-
RT+10-250

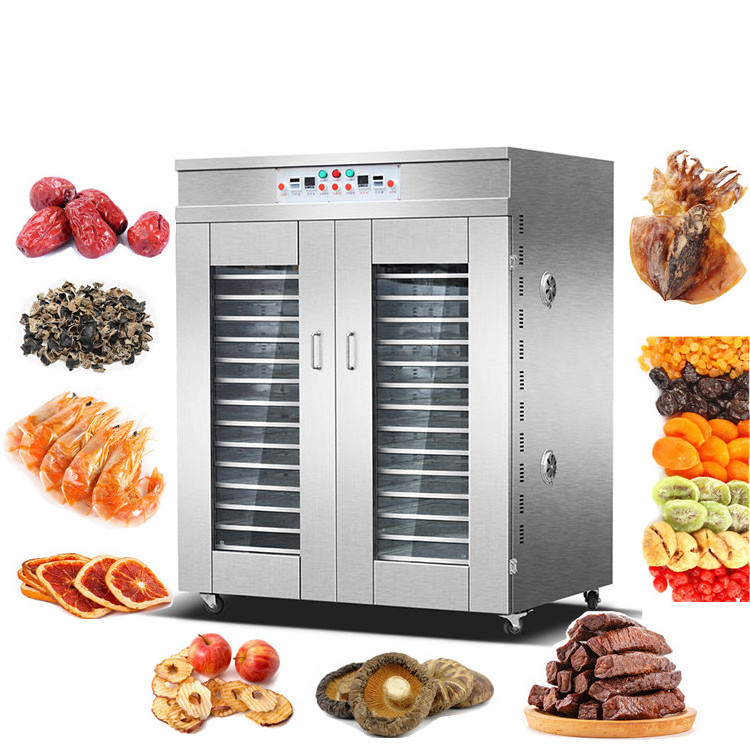

Commercial Automatic Dry Noodle Grape Fruit Wool Taro Ball Pasta Make Tomato Process Dryer Machine
Product Description
Description
1.The Heat Source Includes Steam, Heat Transfer Oil, Electric Heating Tube, Far Infrared Tube, Etc., For Customers To Choose.
2.Temperature Range: Steam Heating 50-140℃, Electric Heating Normal Temperature -140℃ (over 140℃ Is Non-standard High Temperature Oven Needs To Be Customized), Far Infrared Heating 50-350℃.
3.Automatic Control System And Computer Control System Are Available For Users To Choose.
4.The Usual Steam Pressure Is 0.02-0.8mpa.
5. Equipped With Electric Heating, 18kw Calculated According To Type I, Practical 5-8kw Per Hour.
6. Please Contact Customer Service Before Placing An Order. Special Requirements Must Be Stated When Ordering.
7.The Price Of Non-standard Oven Is Negotiable.
8.The Operating Temperature Is Greater Than 140°c Or Less Than 60°c, Please Specify When Ordering.
9.The Size Of The Baking Trays Of The Factory's Ovens Is Uniform, Interchangeable, And Supports Non-standard Customization.
10.Baking Tray Size: 460*640*45mm, There Are Many Styles To Choose From.
Specification
HNOC-C hot air circulation oven is specially designed for industrial mass production. It is widely used in the drying of dehydrated vegetables, feed, monosodium glutamate condiments, chemical pigments, rubber, fibers, electronic components, new materials, clothing, food and other industries.
|
Model
|
Dimension
|
Door
|
Baking car
|
Baking plate
|
Batch yield
|
Fan
|
Power
|
Net weight
|
|
HNOC-C-1
|
1600*1200*2350
|
1
|
1
|
14
|
74
|
2
|
12
|
470
|
|
HNOC-C-2
|
2500*1200*2350
|
2
|
2
|
48
|
144
|
2
|
18
|
760
|
|
HNOC-C-3
|
2500*2200*2350
|
2
|
4
|
96
|
288
|
3
|
30
|
1000
|
|
HNOC-C-4
|
3500*2200*2350
|
3
|
6
|
144
|
432
|
4
|
48
|
1650
|
|
HNOC-C-5
|
4800*2200*2350
|
4
|
8
|
192
|
576
|
6
|
60
|
2000
|
Product details
Fully-enclosed Sealingstrip, Isolates The Temperature From Leaking, And Keeps Heat Lasting Longer
Dense Exhaust Vents, Adjustable In Size
Exhaust Moisture From The Machine
Rugged Stainless Steel Handle Convenient Without Hurting Your Hands,can Be Folded, And More Durable
Stainless Steel Heavy-duty Hinge, Never
Cracking, Never Sagging
