Quick Details
-
Cross Reference:
-
Standard
-
Actuation force:
-
Flat: 57 to 284g,Tactile: 170 to 397g
-
Switch height:
-
Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm
-
Feature:
-
Water-proof.durable.Eco-friendly
-
Service life:
-
Over 1 million times
-
Material:
-
PET / PC / Acrylic / Tempered glass
-
Back adhesive:
-
3M467, 3M468, 3M9448 etc
-
Color:
-
Pantone and real color matching system
-
Operating temperature:
-
-40 to 80°C
-
Storage temperature:
-
-40 to 80°C
-
Contact bounce:
-
5 to 30ms
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart
-
Model Number:
-
Capacitive Touch Membrane Switch
-
Cross Reference:
-
Standard
-
Actuation force:
-
Flat: 57 to 284g,Tactile: 170 to 397g
-
Switch height:
-
Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm
-
Feature:
-
Water-proof.durable.Eco-friendly
-
Service life:
-
Over 1 million times
-
Material:
-
PET / PC / Acrylic / Tempered glass
-
Back adhesive:
-
3M467, 3M468, 3M9448 etc
-
Color:
-
Pantone and real color matching system
-
Operating temperature:
-
-40 to 80°C
-
Storage temperature:
-
-40 to 80°C
-
Contact bounce:
-
5 to 30ms
Wide range of applications
Capacitive control switch are wildly used in kitchen appliances including refrigerators, sterilizers, kitchen ventilator, range
hoods, gas stoves, ovens, water heater, intelligent door monitor, intelligent entrance guard, and microwave ovens. Capacitive touch switch also wildly used In Industrial Control, Military Products etc.

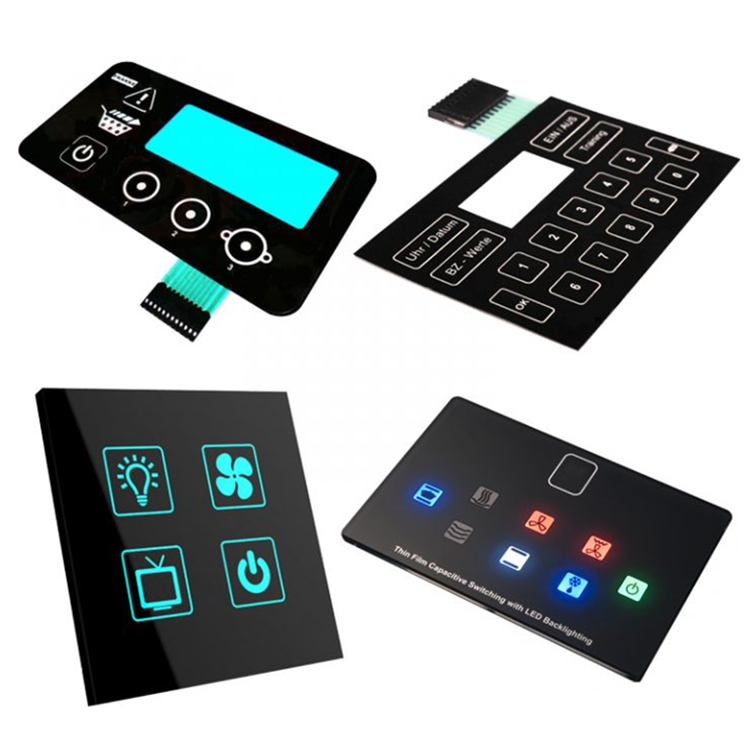

Specification
|
Product Type
|
Capacitive touch panel with backlights
|
|
Place of Origin
|
China
|
|
Model
|
Illuminated Led Membrane Switch Keypad
|
|
Material
|
PET (polyester), PC (polycarbonate), Acrylic, Tempered glass
|
|
Dimension
|
According to customer's demand, OEM service
|
|
Colour
|
Pantone colours, RAL colors and real color matching system.
|
|
Back Adhesive
|
3M55236/3M9448A/3M467/3M468/3M300LSE
|
|
Application
|
Home appliance, washing machine, treadmill, electronic equipment, access control system, medical equipment, measuring instrument, industrial control, fitness equipment, self-service vending machine
|
|
Feature
|
Waterproof and durable
|
|
Surface Treatment
|
Sand surface / glossy surface
|
|
Service life
|
Over 1 million times
|
|
Actuation Force:
|
Flat: 57 to 284g (2 to 10oz),
Tactile: 170 to 397g (6 to 14oz)
|
|
Switch Height:
|
Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm
|
|
Environment:
|
Operating temperature: -40 to 80°C,
Storage temperature: -40 to 80°C
|
|
Tactile ratio
|
FC > 40%
|
|
Open circuit resistance
|
≥ 10MΩ at 100V
|
|
Switch stroke
|
0.1 to 0.6mm
|
|
Contact bounce
|
5 to 30ms
|
