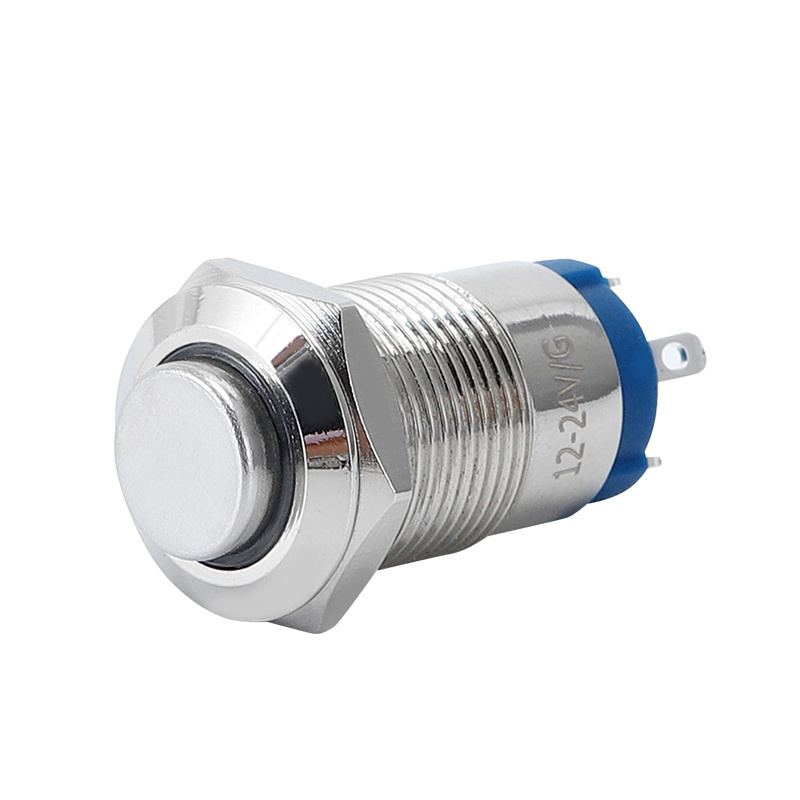

12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch
12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch

12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $0.5
≥1000 Pieces
US $0.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Rui Feng
Model Number:
RF
Operation type:
Reset Latching
Material:
Brass Nickel Plated
Function:
OFF-ON
Operating temperature:
-20°C ~+55°C
Terminal type:
Pin Teminal
Voltage:
6v/12v/24/110v/220v/250v/380v
Mechanical life:
500000times
Customized:
Acceptable
Mounting Hole Size:
12mm Diameter
Shipping By:
Air or sea
Certification:
CE

Quick Details

Protection Level:
IP65 IP67
Max. Current:
3A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Brand Name:
Rui Feng
Model Number:
RF
Operation type:
Reset Latching
Material:
Brass Nickel Plated
Function:
OFF-ON
Operating temperature:
-20°C ~+55°C
Terminal type:
Pin Teminal
Voltage:
6v/12v/24/110v/220v/250v/380v
Mechanical life:
500000times
Customized:
Acceptable
Mounting Hole Size:
12mm Diameter
Shipping By:
Air or sea
Certification:
CE

12mm High Custom On And Off Momentary/Latching Type Miniature Waterproof Push Button Switch

Product Description

Item Name: Waterproof Latching Momentary Push Button Switch

Contact Type: NO
C means common
NO normally open
NC normally closed
Switch Rating:
AC 250V 3A
Mounting Hole Diameter:
12mm 16mm
Head Shape:
Dome head

Wide Application :can be used in wet or dusty environment.

Function : waterproof, explosion-proof, shockproof, shockproof , fast installation

Product Name Push Button Switch
Mounting Hole Diameter 12mm,16mm
Head shape High round head/ Flat head
Illuminated or not NO
Terminal type Screw terminals or Pin terminal
Shell material/press key Material Stainless steel/ Brass plating nickel/aluminum oxide   color,According to the request
Nut Brass Plated Nickel
Base/Bottom/Insert High flame retardant PA66
Solder pin Silver plated/gold
Switch Combination 1NO-Normally open
Operation mode Instantaneous
Operation types Momentary or Latching
Protection Level IP65, IK08
Ambient temperature -20 ~+55
Contact resistance 50mΩ
Insulation resistance ≥1000mΩ
Dielectric strength 1500VAC
Nut torque 5~14Nm
Panel thickness 10mm
Accessories O-ring, Nut
Customized requirement Acceptable
