Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wonyo embroidery machine
-
Overall Dimensions:
-
840*840*930mm
-
Worktable Size:
-
380*560mm
-
Weight (KG):
-
178 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
flat / cap / T-shirt / finished garments
-
Trimming system:
-
Outside-trimming system
-
High speed:
-
1200SPM
-
Motor:
-
Stepper motor
-
Computer:
-
10"touch screen
-
Hook:
-
Japan Koban Hook
-
Working noise:
-
the lowest level
-
Needle:
-
Germany Groz-beckert Needles
-
Belt:
-
Italy importing belt
Quick Details
-
Maximum Speed:
-
1000 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wonyo embroidery machine
-
Overall Dimensions:
-
840*840*930mm
-
Worktable Size:
-
380*560mm
-
Weight (KG):
-
178 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
flat / cap / T-shirt / finished garments
-
Trimming system:
-
Outside-trimming system
-
High speed:
-
1200SPM
-
Motor:
-
Stepper motor
-
Computer:
-
10"touch screen
-
Hook:
-
Japan Koban Hook
-
Working noise:
-
the lowest level
-
Needle:
-
Germany Groz-beckert Needles
-
Belt:
-
Italy importing belt
Second Hand Wonyo Embroidery Machine
If you say that you can't afford for a brand new embroidery machine,
you want to find a cheaper one or second hand embroidery machine or
used embroidery machine. Dont' worry, We can also help you
with it. Feel free to contact us and we will provide what you need ^_^
But before that, you need know the process of embroidery .
How to DIY a embroidery design on the material you want?
First, you need buy a embroidery machine. This machine can be either big or small.

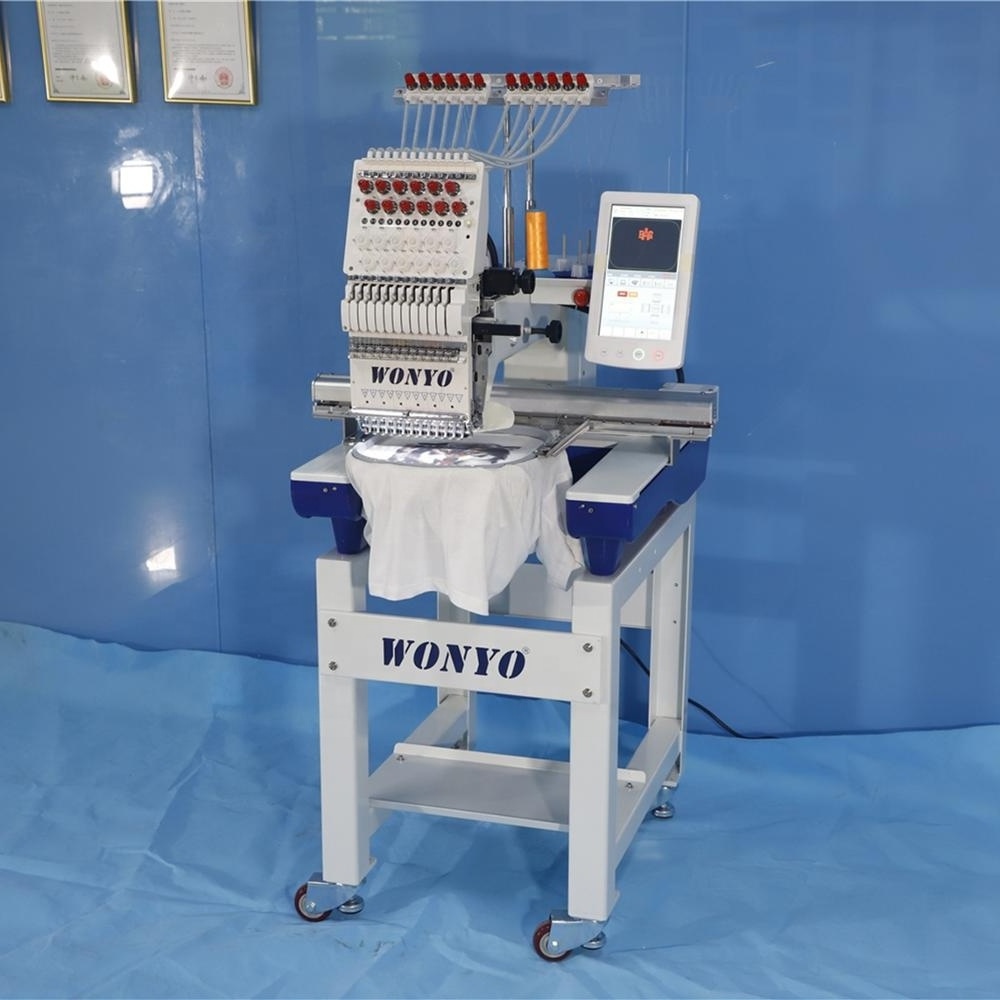

For example, a single head embroidery machine with 12 needles shown in the image below.
Oversize is 840*840*930mm
net weight: 135kg
It can embroider on cap, tshirt, flat and other material like fabric, pinafore and etc...
Second, Thread is a must for the embroidery with machine just like crossstitch.
You can choose Ployester threads, 75D, 80D, 120D... It depends on the material
you want to embroider.
Third, A digitizing software is needing to make a design by yourself if you want to do
all the work alone. You can also ask a design shop to help with the design. A very
economical software is recommended to you as shown below.
After all the basic instruments are ready, you will find a delicate design work waiting for you.
| Main parameters | |
| Function | cap embroidery, t shirt embroidery, flat embroidery... |
| Model# | WY1201CS,WY1501CS |
| Speed | 1200 stitches per minute |
| Main Motor | Servo Motor |
| XY Motor | Stepper motor |
| Digitizing software | ISEW |
| Embroidery Design format | DST, DSB |
| Control Board | Topwisdom, 7" LCD touch screen, Optional 8-10" |
| Language | English, French, Spanish, Portuguese, Arabic... total 12 languages |
| Voltage | AC110-220V, adaptable for any volatge |
| Power | 50-60HZ |
| Delivery Time | 15-20 days |
| Payment term |
EXW, FOB, CFR, CIF 30% before production and 70% before shipping |
| Loading port |
Shenzhen, Ningbo, Guangzhou or other ports customer demands |
| Control System | |
| Automatic trimming | yes |
| Automatic cutting | yes |
| Automatic color change | yes |
| Thread broken detecting | yes |
| Memory size | 20,000,000 stitches/200 embroidery design patterns |
| Font/letter software | available |
| Error code | yes |
| Real-time stitching | yes |
| Different languages setting | yes |
| USB port, network transferring design | yes |
| Laser position with red light | yes |
| Led light | yes |
| Accessories included | |
| Frames:( free sent) |
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head 2 sets of front hoops of 19cm (7.50") for each head 2 sets of front hoops of 15cm (5.90") for each head 2 sets of front hoops of 12cm (4.70") for each head 2 sets of front hoops of 9cm (3.50") for each head |
| Cap attachment | (2 cap ring, 1 cap drive, 1 cap frame)for each head |
| Flat frame | 1 Sash Frame: 56cm x 38cm (32" x 19") for 2 heads |
| Foot wheels | included for easy movement of the machine |
| Operation manual | English and French version, other languages can be added |
| Bobbin Winder | Included |
| Tool box | yes, with needles, reciprocators, sensor, bobbin... |
Groz-beckert Needles and Japan Koban Rotary Hook
1.Bobbin case
2.Reciprocator
3.Potentionmeter
4.Sensor
5.Germany Groz-beckert needles
6.board
7.Foot wheels
8.Bobbin winder
9.Bobbin thread
10.Embroidery thread
11.Opertion manual in English
12.Tshirt hoops
13.Flat frame and table
14.Plug with according standard to meet customer's demands
15.8G USB with at least 500 DST design sent for free
| Optional Devices: |
| Sequin embroidery |
| Taping embroidery |
| Boring embroidery |
| Cording/Coiling embroidery |
|
Bead embroidery |
| Packing details | |
| Packing material | Fumigation-free wooden box |
| Packing size | 840*840*930mm |
| Gross-weight | 170kg |
| Other request | As customer required |
| Other models as choice to meet your demands for embroidery business | |||||
| Model# | Head# | Needle# | Embroidery Area | Speed | Package Size |
| WY1201C, WY1501C | 1 | 12/15 | 360*510mm | 1200SPM | 840*840*930mm |
| WY1201CL, WY1501CL | 1 | 12/15 | 360*510mm | 1200SPM | 1580*1040*1100mm |
| WY11201CL, WY1501CL(customized) | 1 | 12/15 | 500*1200mm | 1200SPM | 1500*1100*1200 |
| WY902C, WY1202C | 2 | 9/12 | 400*450mm | 850SPM | 1710*1060*1480mm |
| WY904C, WY1204C | 4 | 9/12 | 400*450mm | 850SPM | 2700*1140*1660mm |
| WY906C, WY1206C | 6 | 9/12 | 400*450mm | 850SPM | 3760*1140*1690mm |
| WY908C, WY1208C | 8 | 9/12 | 400*450mm | 850SPM | 4510*1130*1670mm |
| WY910C | 10 | 9 | 400*450mm | 850SPM | 4910*1130*1690mm |
| WY912C | 12 | 9 | 400*450mm | 850SPM | 5838*1490* 1600mm |
Welcome to visit our factory in Shenzhen, China
Good quality machine with good after-sale service
Look for agent/distributor all over the world!
Price can be negotiated!
