Quick Details
-
Name:
-

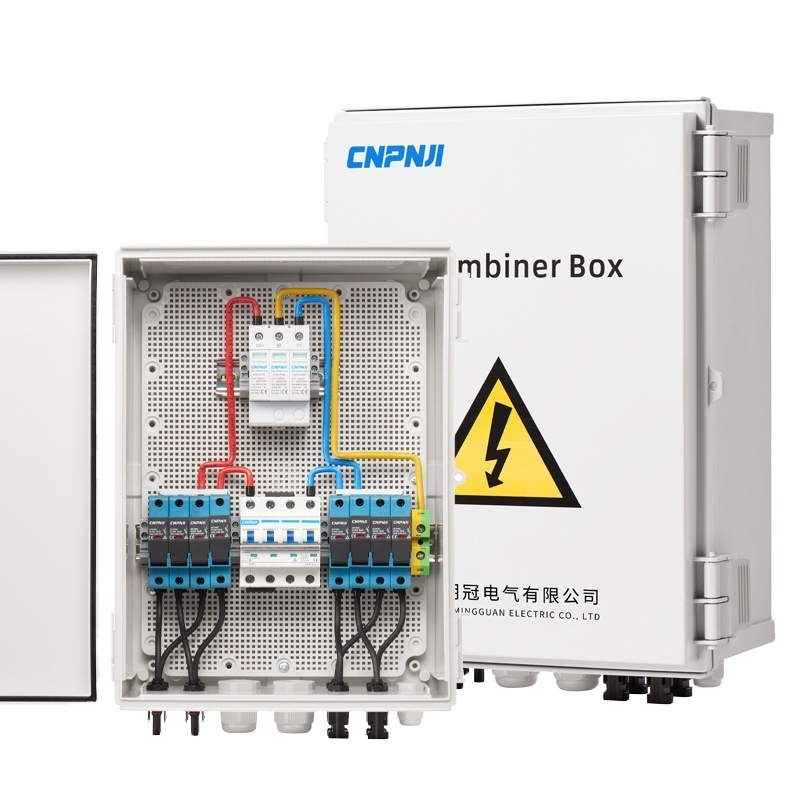

PV combiner box
-
Voltage:
-
1000V
-
Box material:
-
Plastic
-
Strings:
-
4
-
Certification:
-
TUV,CE
-
Waterproof grade:
-
IP65
-
number of poles:
-
3P
-
Nominal discharge current:
-
20kA
Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China
-
Brand Name:
-
Mingguan
-
Model Number:
-
MGV-PV4 1000V
-
Name:
-
PV combiner box
-
Voltage:
-
1000V
-
Box material:
-
Plastic
-
Strings:
-
4
-
Certification:
-
TUV,CE
-
Waterproof grade:
-
IP65
-
number of poles:
-
3P
-
Nominal discharge current:
-
20kA
Products Description
Customized products
|
Model
|
MGV-PV4
|
|
|
System DC voltage（V）
|
1000
|
|
|
Each input current
|
20A
|
|
|
Number of input channels
|
4-way
|
|
|
Maximum output switching current
|
80A
|
|
|
Output modes
|
1
|
|
|
Lightning Protection
|
|
|
|
Test category
|
II pole protection
|
|
|
Nominal discharge current
|
20kA
|
|
|
maximum discharge current
|
40kA
|
|
|
voltage protection level
|
3.8kV
|
|
|
Maximum Continuous Operating Voltage
|
1000V
|
|
|
number of poles
|
3P
|
|
|
Structural characteristics
|
Pluggable module
|
|
|
protection grade
|
IP65
|
|
|
Output Switch
|
DC circuit breaker (standard)/DC rotary isolation switch (optional)
|
|
|
MC4/waterproof joint
|
apolegamy
|
|
|
Photovoltaic DC fuse
|
apolegamy
|
|
|
Photovoltaic DC surge protection
|
apolegamy
|
|
|
monitor module
|
not have
|
|
|
Monitoring anti diode
|
have
|
|
|
Heat dissipation plate
|
not have
|
|
|
Box material
|
ABS
|
|
|
Installation method
|
Wall Mount
|
|
|
operation temperature
|
-25°C '■+55°C
|
|
|
altitude
|
2000 m
|
|
|
Permissible relative humidity
|
0-95%, no condensation
|
|
