Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS filter
-
Dimension(L*W*H):
-
Standard Size
-
Weight:
-
2 KG
-
Warranty:
-
1 Year
-
Inner Core::
-
Polypropylene(PP)
-
Length:
-
2.5", 5"
-
Certificate::
-
2002/72/EC
-

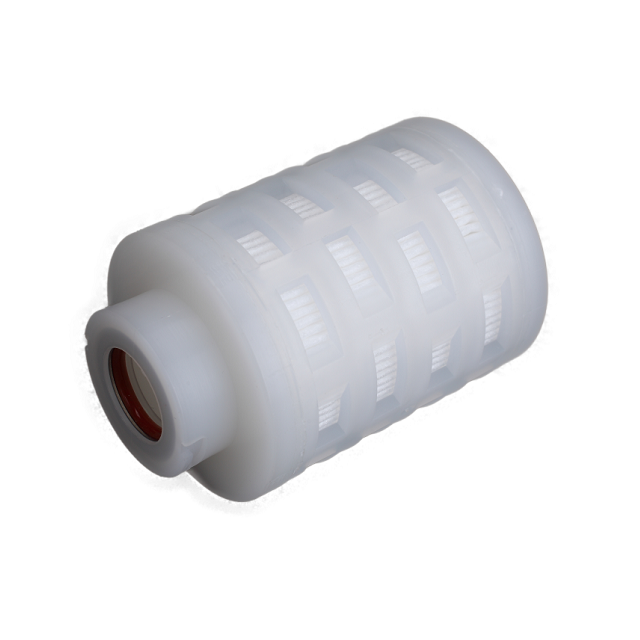

Product name:
-
0.2 um Air Filter
-
Filtration Area::
-
0.23 m2(5'')
-
Cage:
-
Polypropylene(PP)
-
Application::
-
Carbon Dioxide, Nitrogen, Air/Gas
-
Material:
-
PTFE / PVDF membrane
-
Filter Diameter::
-
56 mm(OD)
-
Certification:
-
CE, ISO9001, etc
Quick Details
-
Core Components:
-
PTFE/PVDF filter cartridge
-
Efficiency:
-
99.99%
-
Porosity:
-
0.1um
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS filter
-
Dimension(L*W*H):
-
Standard Size
-
Weight:
-
2 KG
-
Warranty:
-
1 Year
-
Inner Core::
-
Polypropylene(PP)
-
Length:
-
2.5", 5"
-
Certificate::
-
2002/72/EC
-
Product name:
-
0.2 um Air Filter
-
Filtration Area::
-
0.23 m2(5'')
-
Cage:
-
Polypropylene(PP)
-
Application::
-
Carbon Dioxide, Nitrogen, Air/Gas
-
Material:
-
PTFE / PVDF membrane
-
Filter Diameter::
-
56 mm(OD)
-
Certification:
-
CE, ISO9001, etc
PRODUCT CATEGORIES
PARAMETER INFORMATION
|
Materials Of Construction
|
Filter Media
|
PES/PP/PTFE/NYLON66/PVDF
|
|
|
|
|||
|
|
Support Layers
|
Polypropylene
|
|
|
|
|||
|
|
Inner Core
|
Polypropylene/SUS
|
|
|
|
|||
|
|
Outer Cage, End Cap
|
Polypropylene
|
|
|
|
|||
|
|
Seal Method
|
Thermal Bonded, No Adhesives
|
|
|
|
|||
|
|
O-Rings/Gaskets:
|
Silicone, Nitrile, EPDM, Viton
|
|
|
|
|||
|
Cartridge Dimensions
|
Outer Diameter
|
56mm
|
|
|
|
|||
|
|
Length
|
70mm (except end cap) 125mm(except end cap)
|
|
|
|
|||
|
|
Filtration Area(m2)
|
0.12 m2(70mm length)
0.23 m2(125mm length) |
|
|
|
|||
|
Operating Conditions
|
Normal Operating Temperature
|
Up to 60℃ (140 ℉ )
|
|
|
|
|||
|
|
Max.operating Temperature.
|
80℃ (176 ℉ ) at △ P1.0 bar (14.5psi)
|
|
|
|
|||
|
|
Normal Flow Direction
|
4.2 bar (60.9 psi) at 25℃ (77 ℉ )
|
|
|
|
|||
|
|
Reverse Flow direction
|
2.1 bar (30.5psi) at 25℃ (77 ℉ )
|
|
|
|
|||
|
|
Sterilization
|
Steam Sterilization for 30 minutes at 135℃ (275 ℉ )
|
|
|
|
|||
|
Cartridge Safety
|
Endotoxin
|
＜ 0.25 EU/ml
|
|
|
|
|||
|
|
Extractables
|
0.015g / 10"
|
|
|
|
|||
APPLICATION
RELATED PRODUCTS
COMPANY PROFILE
EXHBITION
WHY CHOOSE US
PACKING AND SHIPPING
1. How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:ggh(at)tsjmlc.com
Best wishes!
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:ggh(at)tsjmlc.com
Best wishes!
