Top Hung Pine Roof Window with Flashing Kit for Loft Window and Rooflight

Top Hung Pine Roof Window with Flashing Kit for Loft Window and Rooflight

FOB Reference Price: Get Latest Price

≥2 Square meters

US $350

≥10 Square meters

US $290

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Design Style:: Modern

Place of Origin:: Shanghai, China

Brand Name:: Greamlight

Model Number:: GZ-PL

Product name:: Electric Aluminum Top Hung Window

Glass:: Double Tempered Glass

Size:: Customized

Color:: Customized Colors

Surface treatment:: Electrostatic powder treatment of the whole window

Hardware:: DOOYA/German

Packing:: Wooden Crate

Advantage:: Daylighting / Ventilation / Soundproof / Impact Resistance

Quick Details

Frame Material:: Aluminum Alloy+Wooden

Function:: Soundproof

Application:: Apartment

Design Style:: Modern

Place of Origin:: Shanghai, China

Brand Name:: Greamlight

Model Number:: GZ-PL

Product name:: Electric Aluminum Top Hung Window

Glass:: Double Tempered Glass

Size:: Customized

Color:: Customized Colors

Surface treatment:: Electrostatic powder treatment of the whole window

Hardware:: DOOYA/German

Packing:: Wooden Crate

Advantage:: Daylighting / Ventilation / Soundproof / Impact Resistance

Product Description

The reason for choosing an Aluminum Top Hung window Pine Finish

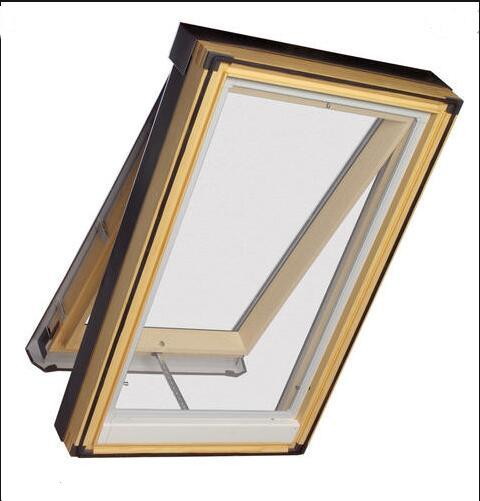

Top-Hung Roof Window is manufactured in a high quality natural pine finish. It is suitable for installation into roof pitches between 15° and 55°.

For installations between 55° and 75° special springs will be required. Not advised for high level (out of reach) installation.

The bottom edge of the window should be placed approx. 0.90 – 1.20m above the floor for ease of opertion.

Due to the unrestricted opening area, a larger selection of roof windows are suitable for fire escape purposes.

Materials: High quality natural pinewood coated with impregnation and layers of water-based acrylic clear lacquer Insulating glazing unit

Product features: High quality natural pinewood coated with impregnation and layers of water-based acrylic clear lacquer. Bottom handle for convenient operation. Can be installed in roof pitches between 15° and 55°.

The sash can remain open in any position up to an angle of 45°. Installation in roof pitches from 55° up to 75° is possible, but specially manufactured springs must be ordered. Top Hung Roof Window Maintenance: The pane should be cleaned with a soft, clean, lint-free or non-abrasive sponge. The rest of the window can be cleaned with with ordinary household cleaners.

Product details

Specification

item	Top Hung Window
Warranty	5 years
After-sale Service	Online technical support, Other
Project Solution Capability	graphic design, 3D model design, total solution for projects
Application	Apartment,office,mall
Design Style	Modern
Place of Origin	Shanghai,China
Brand Name	Dreamlight
Model Number	TCM-S
Material	A6063-T5 Aluminum alloyand pine or oak combination.
Process technology	precision double-head saw cutting, laser seamless welding and wood group angle and drainage board assembly.
Paint process	powder coating, any colour to order, wood colour for the original colour or spraying.
Standard color	Black,white,dark gray,red coffee,black coffee,Customized Colors
Glass configuration	Laminated glass,double hollow glass,LOw-E,etc.
Open range	opening angle is 15°-70° (different opening angle for different styles).
Motor	DOOYA motor or French Somfy
Opening mode	manual / electric (standard: GZGY waterproof motor, touch screen control, LCD remote control)
Regular size of skylight	780980 mm 7801180 mm 7801400 mm 11401180 mm 1140*1400 mm
Process shape	square,rectangle
Drainage board	Aluminium and lead plate combination
Smart life options	Mobile WIFF control, solar power, rain sensor, LED ambient light, electric screen,electric sunshade, voice control, manual and electric function, fire exhaust control.
Application scope	This product is mainly used for sloping roof and basement light well .

The introduction about our glass

Glass Option Clear glass, Laminated glass, Tinted glass, Low-E glass, Frosted glass, all tempered glass and etc

Single glass: 4mm,5mm, 6mm, 8mm, 10mm, 12mm and etc

Double glass: 5+9A+5mm, 5+12A+5mm, 6+12A+6mm and etc Triple glass: 6+9A+6+9A+6mm and etc

Packing & Delivery

1. Accessories will be packed in zippered bag or small paper box; 2. Profile surface will have plastic film cover; 3. Aluminum skylight would be wrapped by bubble film; 4. Goods will be packed into wooden case; 5. Wooden box will fastened by packing belt.
