Quick Details
-
Rolling thinckness:
-
0.8-1.5MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HRF
-
Voltage:
-
380V Or As Customize
-
Dimension(L*W*H):
-
11.6m*2.4m*2.3m
-
Weight:
-
5000 kg
-
Feeding width:
-
914MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material Thickness:
-
0.8-1.5MM
-
Control system:
-
automatic
-
Main Power:
-
15kw
-
forming station:
-
18
-
work speed:
-
15-20m/min
-
way of drive:
-
chain ,1 inch
-
plc:
-
mitsubishi/delixi/
-
Raw material:
-
PPGI
-
name:
-
High speed roll forming machine k-span machinery k span machine
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Glazed
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.8-1.5MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HRF
-
Voltage:
-
380V Or As Customize
-
Dimension(L*W*H):
-
11.6m*2.4m*2.3m
-
Weight:
-
5000 kg
-
Feeding width:
-
914MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material Thickness:
-
0.8-1.5MM
-
Control system:
-
automatic
-
Main Power:
-
15kw
-
forming station:
-
18
-
work speed:
-
15-20m/min
-
way of drive:
-
chain ,1 inch
-
plc:
-
mitsubishi/delixi/
-
Raw material:
-
PPGI
-
name:
-
High speed roll forming machine k-span machinery k span machine
Video display

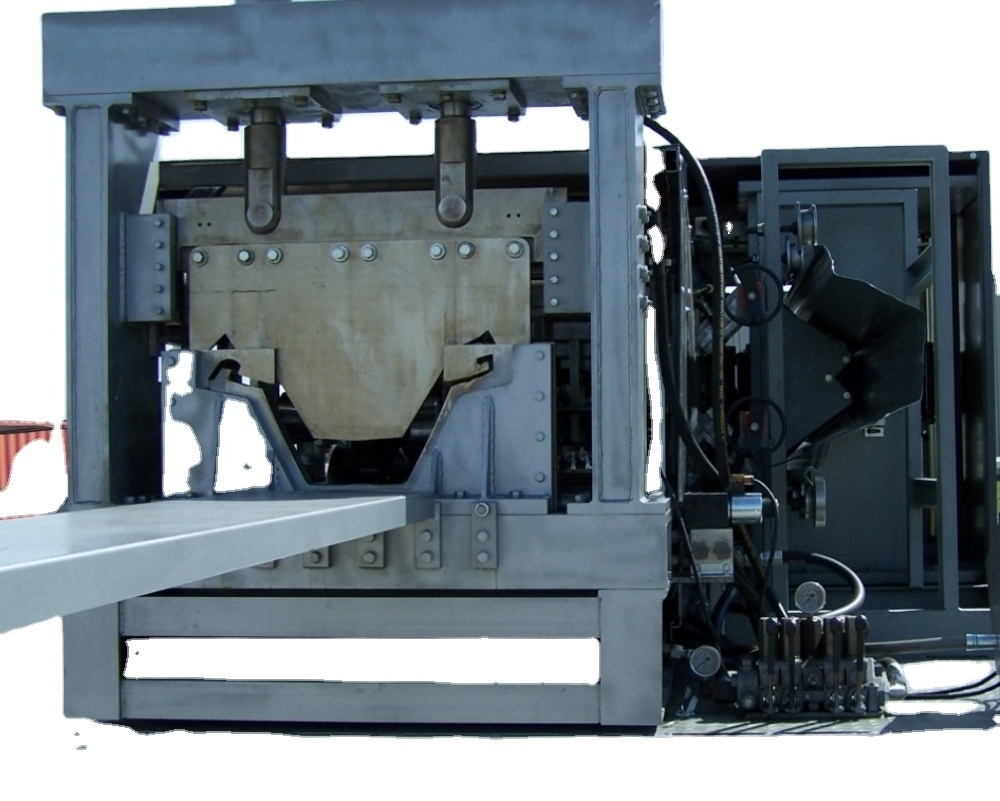

High speed k-span roll forming machine
Product parameter
|
No
|
ITEM
|
|
PARAMETER
|
Remark
|
|
|
1
|
Suitable material
|
Type
|
Cold rolled steel coil
Galvanized steel coil |
|
|
|
|
|
Thickness(mm)x coil width
|
0.6mm--1.2mmx1220mm
|
|
|
|
|
|
Yield stress( Mpa)
|
G350Mpa
|
|
|
|
2
|
Forming speed(m/min)
|
|
18-20
|
Without cutting time
|
|
|
3
|
Forming station
|
|
24
|
|
|
|
4
|
Main machine power(kw)
|
|
22 KW
|
Motor made in china
|
|
|
5
|
Hydraulic station power(kw)
|
|
5.5kw
|
made in china
|
|
|
6
|
Power for 5T hydraulic decoiler(5.5kw)+hydraulic station 3kw
|
|
8.5KW
|
Motor made in china
|
|
|
7
|
Total power(kw)
|
|
About 36 kw
|
|
|
|
8
|
Power supply requirement
|
|
440V,60Hz,3Ph
|
|
|
|
9
|
Machine dimension(LxWxH)
|
|
About 13mmx1.7mmx1.4mm
|
|
|
|
10
|
Machine color
|
|
Green with Yellow color combination
|
|
|
Process flow
5T Coil car-5T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→Outables
