Quick Details
-
Brand Name:
-
Jevol
-
Model Number:
-
TSR-4500
-
Application:
-
Vehicle Inspection Equipment
-
Model:
-
TSR-4500
-
MOQ:
-
1
-
Control:
-
COMPUTER
-
Brand:
-
JEVOL
-
Max load:
-
3T
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jevol
-
Model Number:
-
TSR-4500
-
Application:
-
Vehicle Inspection Equipment
-
Model:
-
TSR-4500
-
MOQ:
-
1
-
Control:
-
COMPUTER
-
Brand:
-
JEVOL
-
Max load:
-
3T

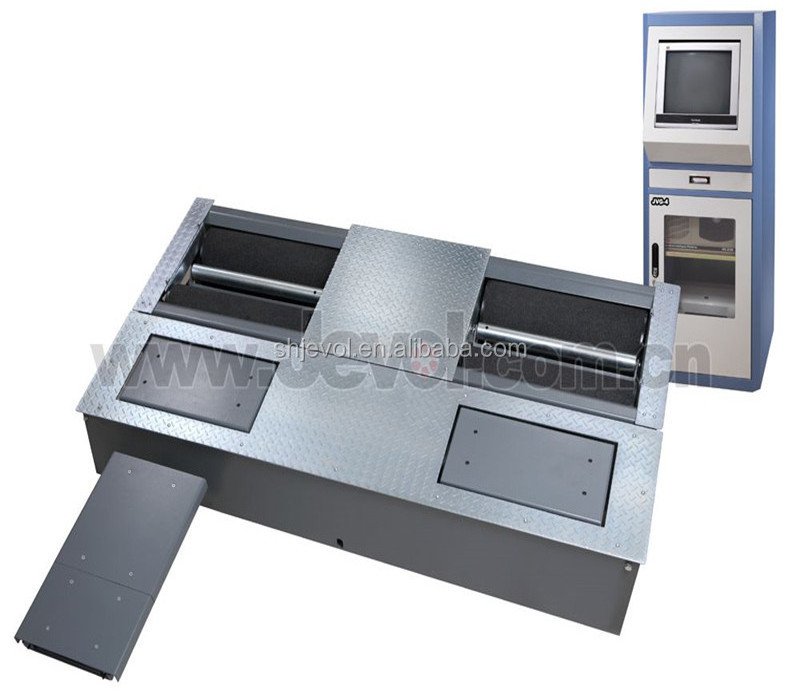

Brake tester + Suspension tester + Sideslip tester for testing vehicle performance
Technical Parameters:
|
Items |
Brake Tester |
Suspension Tester |
Sideslip Tester |
|
Max axle load |
3T |
3T |
3T |
|
Testing Speed |
2.5km/h |
/ |
3 ~ 5 km/h |
|
Power supply |
380V 50HZ |
380V / 50HZ |
220V / 50HZ |
|
Motor |
3kw × 2 |
1.5 KW X 2 |
/ |
|
Roller diameter |
245mm |
/ |
/ |
|
Roller length |
750mm |
/ |
/ |
|
Testing range |
0-9000N |
/ |
±15mm |
|
Adhesion coefficient |
0.8 |
/ |
/ |
|
Frequency |
/ |
23HZ |
/ |
|
Amplitude |
/ |
6mm |
/ |
|
Dimensions (L × W × H) |
2500X750X350mm |
2500X550X356mm |
800X460X60mm |
Features
1. Corundum-coated roller surface, more enduring and long life time. The roller friction coefficient is more than 0.8 which is near the actual road condition.
2. With self-lock function which is convenient for car drive out after finishing test.
3. The driving roller is higher than the second roller avoiding the vehicle drive out of the bench during the testing.
4. The third roller can response and stop the motor automatically to avoid the wear of the tyre when the tyre locked during the testing.
5. The compact bench is compounded with brake tester and axle tester, space-saving, high repetition of the testing data.
