1. Mature and reliable transmission system to ensure reliable operation and long service life of the whole machine
2. Solid and reliable structural parts bring stronger load resistance and longer service life
3. Panoramic cab, spacious and bright, large operating space, good front and rear vision, safe and comfortable
4,High torque and high efficiency drive chain features reasonable matching.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
7310*2870*3220mm
-
Machine Weight:
-
16300 kg
-
Bucket capacity:
-
2.0m3, 2 m3
-
Name:
-
6ton front end wheel loader
-
Overall size:
-
7460*2970*3410 mm
-
Operating weight:
-
10.3
-
Item:
-
construction machine
-
Rated Power:
-
92KW
-
Engine:
-
Weichai
-
Tire type:
-
23.5-25
-
Attachments:
-
Snow Bucket,quick hitch
Quick Details
-
Engine Brand:
-
Weichai
-
Power:
-
92 KW
-
Brand Name:
-
TDER
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
7310*2870*3220mm
-
Machine Weight:
-
16300 kg
-
Bucket capacity:
-
2.0m3, 2 m3
-
Name:
-
6ton front end wheel loader
-
Overall size:
-
7460*2970*3410 mm
-
Operating weight:
-
10.3
-
Item:
-
construction machine
-
Rated Power:
-
92KW
-
Engine:
-
Weichai
-
Tire type:
-
23.5-25
-
Attachments:
-
Snow Bucket,quick hitch

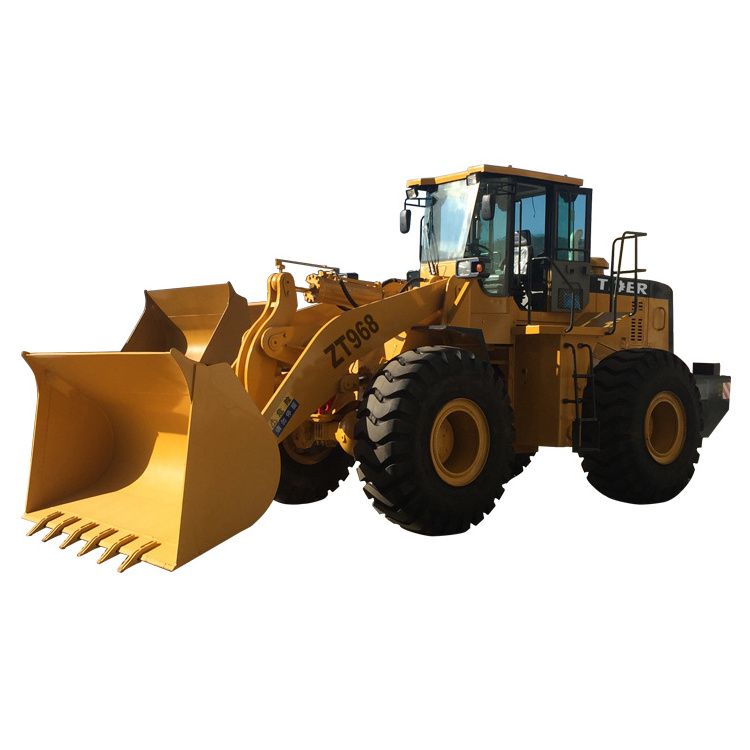

TDER Chinese Construction Machine 6 ton front end wheel loader for sale
Product Description
Title goes here.
1.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as the dust-proof layer make the axle more durable.
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as the dust-proof layer make the axle more durable.
2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more
powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.
powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.
3.Novel appearance andhumanized design:
Cabin with broad view.Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic
systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
systems, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
Technical Sheet
|
Main technical performances and parameters
|
|
|
Model
|
ZT968
|
|
Rated power
|
178KW/2200r/min
|
|
Overall dimensions
|
8700mmX3100mmX3670mm
|
|
Operating weight
|
19500KGS
|
|
Rated loading capacity
|
6000KGS
|
|
Bucket capacity
|
4m³
|
|
Bucket width
|
3160mm
|
|
Wheelbase
|
3100mm
|
|
Dumping height
|
3600mm
|
|
Dumping reach
|
1300mm
|
|
Turning angle
|
35°±1°
|
|
Max. Climbing Gradient
|
28°
|
|
Turning radius
|
7134mm
|
|
Max. breakout force
|
175kN
|
|
Max. torque
|
1000N.m
|
|
Lifting time
|
≤6.5s
|
|
Hydraulic cylinder time
|
≤10.5s
|
|
Specification of tire
|
26.5-25
|
|
Travel speed
|
|
|
Forward gear Ⅰ
|
11.5km/h
|
|
Forward gearⅡ
|
38km/h
|
|
Reverse gear Ⅰ
|
16km/h
|
After-services:
TDER industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products purchased from TDER enjoy one year or 2000 hours (which occurs first) warranty.
During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
FAQ
1. Why choose us?
As a manufacturer, Tder industrial is committed to offer not only products with
high quality
and performance and
competitive price
, but also in-time delivery and
comprehensive 7/24 after-sale services
.
2. What is the product range of our factory ?
Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the
ISO9001 Quality System
and have acquired
CE certificate. EPA approval
will be available if needed.
5. How about our delivery time?
Usually it will take
15 to 30 days
after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tder industrial can provide customized products according to customers' requirements, both
OEM and ODM
are acceptable.
