Quick Details
-
Application:
-
Special for Yachts/Boats Mooring, Lake, sea, river, Deep water
-
Frame Material:
-
Aluminum Alloy/Galv. Steel
-
Pontoon Floats Material:
-
LLDPE/HDPE +EPS foam
-
Decking Material:
-
WPC Decking
-
Fasteners Material:
-
SUS316 Grade
-
Feature:
-
UV-protection,Easy installation, Eco-friendly, Maintenance Free
-
Size:
-
Customized Size
-
Accessories:
-
Pile guide, Cleat, Pile cap, AISI 316 bolts, screws, bearings, etc
-
Anchoring system:
-
Pile /steel anchor/concrete anchor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HS
-
Product Name:
-

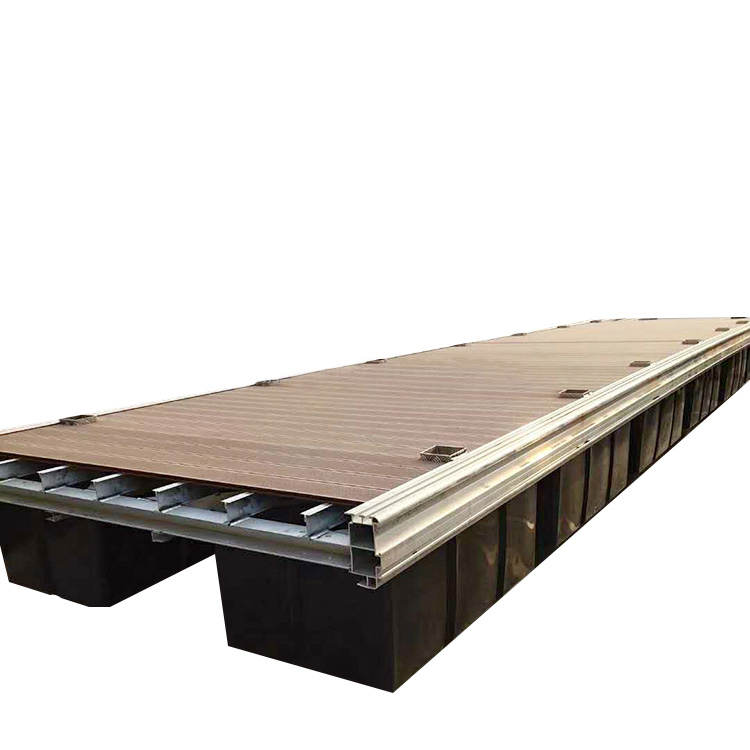

Aluminum Dock
-
Application:
-
Special for Yachts/Boats Mooring, Lake, sea, river, Deep water
-
Frame Material:
-
Aluminum Alloy/Galv. Steel
-
Pontoon Floats Material:
-
LLDPE/HDPE +EPS foam
-
Decking Material:
-
WPC Decking
-
Fasteners Material:
-
SUS316 Grade
-
Feature:
-
UV-protection,Easy installation, Eco-friendly, Maintenance Free
-
Size:
-
Customized Size
-
Accessories:
-
Pile guide, Cleat, Pile cap, AISI 316 bolts, screws, bearings, etc
-
Anchoring system:
-
Pile /steel anchor/concrete anchor
Products Description
|
Items
|
Details
|
Remarks
|
|
Gangway
|
Aluminum Alloy Frame/Structure & Handrail,Dock Decking/Panels.
|
The gangway structure is similar to Floating Dock.The size(handrail) can be designed to meet needs,and it can load 100-200kg/m² weight.
|
|
Power
Pedestal
|
Providing Electricity & Water & LED Light
|
Sockets & Taps & LED ligh.
|
|
Pile
|
Pile Cap
|
Black and White Reinforced Plastics (PE),Durable.
|
|
Mooring
Cleat
|
|
Our typical cleats are designed to pull and hold 2.5-10T,these cleat are all with solid core for both safe and durable consideration.
|
|
Bumper Fender
|
Rubber Bumper/Fender.
|
Anti-aging,Stretchy,Cold-resistant,Hot-resistant,Anti-UV,Durable.
|
|
Other accessories
|
Screws & Bolts,Rivet & Rivet Gun,Rubber Pad,etc.
|
All connection or fixing fittings for each part are well designed and durable,especially for the marina environment.
|
The main products constitute
|
Metal Frame Material
|
Marine Grade Aluminium 6061-T6/Hot Dip Galvanized Steel(Optional)
|
|
Dock Floats Material
|
LLDPE/HDPE with EPS Foam Filled
|
|
Decking Boards
|
WPC/Solid Wood/FRP/Poly/Aluminium
|
|
Structure Connection
|
Flexible Connection Solution
|
|
Anchorage Solutions
|
Piling/Sinker/Elastic/H-Beam/Stiff Arm
|
|
Main Accessories
|
Fender/Cleat/Pedestal/Gangway
|
Application Cases
Shanghai Dripping Lake Marina
Shanghai Qinghuangdao Road Dock
Shaoxing Caoejiang Marina
Guangdong Floating Box Termina
Zhejiang Upscale Marina
Hangzhou Yacht Terminal
Marine Ship Docking Terminal
Floating Boat Marina
Guangdong Sea Marina
Floating dock fixing method
Four Major Fixing Methods For Floating Docks
1.H-Steel Sliding Device
2.Support Rod and Steel Wire Rope Fixation
3.Anchor Block Fixation Method
4.Ordinary Pile Driving and Fixing Method
