Quick Details
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2000 KG
-
Applicable Industries:
-
Wood Pallet Process Factory
-
Keywords:
-
Wood Pallet Nailing Machine
-
Pallet type:
-
USA Style Pallet
-
Control System:
-
PLC
-
Nail gun speed:
-
7 Times/Second
-
Pallet size:
-
800-1250mm
-
Air Pressure:
-
0.8MPA
-
Nail capacity:
-
3000 nails
-
Feeding Type:
-
Manual feeding
-
Nailing Type:
-
Automatic nailing
-
Stacking Type:
-
Automatic Stacking
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill World
-
Machine Type:
-
wood pallet nailing machine
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2000 KG
-
Applicable Industries:
-
Wood Pallet Process Factory
-
Keywords:
-
Wood Pallet Nailing Machine
-
Pallet type:
-
USA Style Pallet
-
Control System:
-
PLC
-
Nail gun speed:
-
7 Times/Second
-
Pallet size:
-
800-1250mm
-
Air Pressure:
-
0.8MPA
-
Nail capacity:
-
3000 nails
-
Feeding Type:
-
Manual feeding
-
Nailing Type:
-
Automatic nailing
-
Stacking Type:
-
Automatic Stacking
Product Description

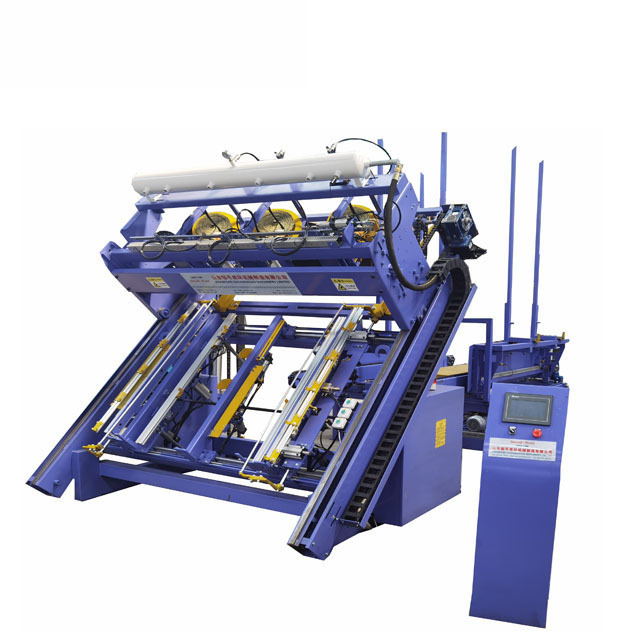

Automatic USA Style Wood Pallet Nailing Machine
1.PLC & touch screen control,pneumatic operation
2.Manual feeding,automatic nailing and automatic stacking
3.automatic pallet lifting device,automatic counting function on the display interface of the pallet nailing machine.can store 15-20 pallets.
4.after the nailing process,The pallets are turned over to the stacking platform automatically.
5.convenient for forklift transport. Save time and space.
|
USA Style Automatic Pallet Nailing Machine
|
|
|
||
|
Type
|
3 Stringer Pallet 3 Nail Guns
|
4 Stringer Pallet 4 Nail Guns
|
||
|
Nail Guns Size
|
70 Nail Gun *3
|
70 Nail Gun *4
|
||
|
Operation ,Automatic
|
PLC touching screen
|
PLC touching screen
|
||
|
Air pressure
|
0.8MPA
|
0.8MPA
|
||
|
Nail capacity
|
3000 nails/large coil nails
|
3000 nails/large coil nails
|
||
|
Stacking
|
Automatic Stacking
(pneumatic)
|
Automatic Stacking
(pneumatic)
|
||
|
Voltage
|
380V 50HZ 3 Phase or customized
|
380V 50HZ 3 Phase or customized
|
||
|
Production prodedure
|
Manual Feeding,Automatic Nailing and Automatic Stacking
|
|
||
|
Nailing Range
|
800—1250mm
|
800—1250mm
|
||
3 Stringer Pallet 3 Nail Guns Type
4 Stringer Pallet 4 Nail Guns Type
