High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway
High Quality Custom Rubber Pad for Railway

High Quality Custom Rubber Pad for Railway

FOB Reference Price: Get Latest Price
≥1000 Pieces
US $1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
QL-CRPR
Size:
Customized
Marterial:
NR, SBR, Neoprene etc
Hardness:
DURO 80 Shore A
Color:
Black
Technology:
Moulding

Quick Details

Processing Service:
Moulding
Place of Origin:
Zhejiang, China
Brand Name:
Qianlang rubber pad
Model Number:
QL-CRPR
Size:
Customized
Marterial:
NR, SBR, Neoprene etc
Hardness:
DURO 80 Shore A
Color:
Black
Technology:
Moulding
Product Description

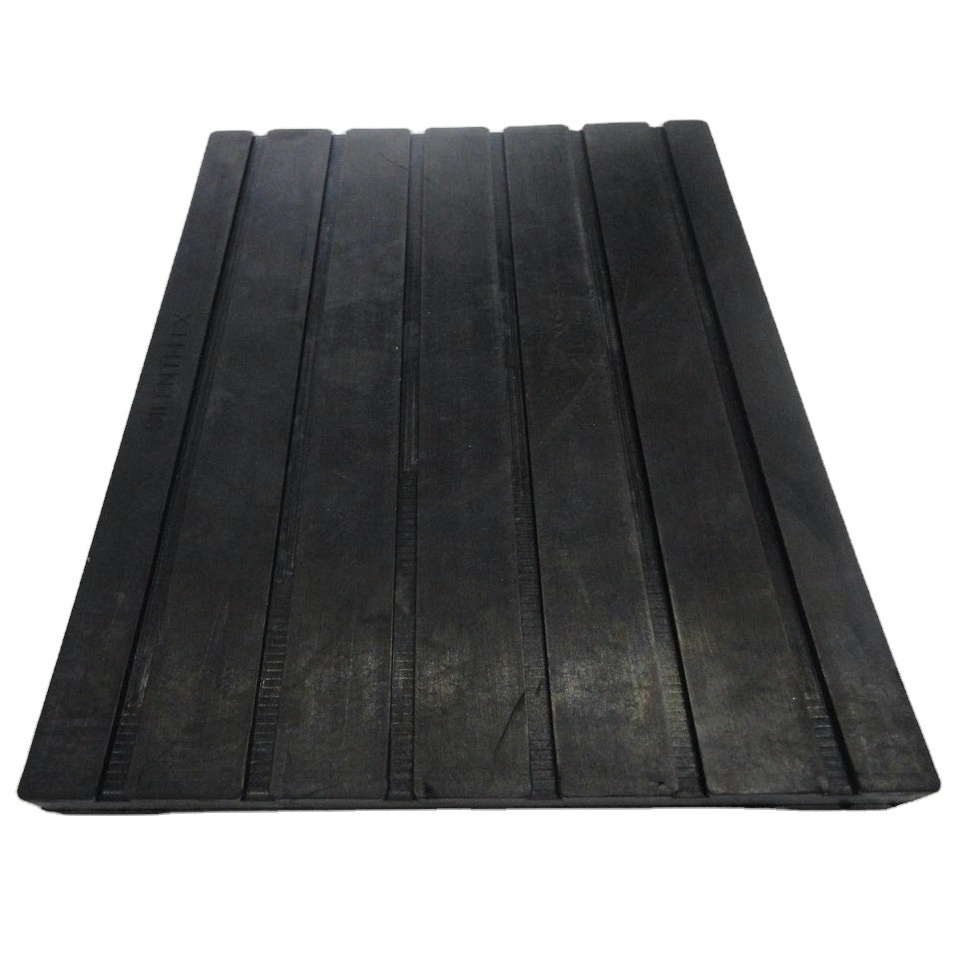

Railway rubber pad is an important part of the track structure. It is installed between the rail and the concrete sleeper. Its main function is to buffer the high-speed vibration and impact generated when the vehicle passes through the rail, protect the road bed and sleeper, and carry out the electrical insulation of signal systems. And long-term exposure in the atmosphere, railway rubber pad is required to have good resistance to natural aging, cold and heat. The rubber pad for subway has a good performance of low noise absorption.

  • Railway rubber pads have good vibration damping, anti-aging, abrasion resistance, stability, and strong resistance to high and low temperature. The material is composed of natural rubber, SBR, neoprene, HDPE, EVA, high-density polyethylene and other combinations, so the railway rubber pads have good flexibility, and it's not deformed or broken easily at various temperatures.
  • Railway rubber pads have the advantages of long life cycle, low costs for maintenance and replacement.

Materil requirements of one project

Item Value
Shore Hardness A 75~85
Tensile Strength ≥10 Mpa
Elongation at Rupture ≥250%
Akron Abration ≤ 0.6 cm 3
Compression Set ≤30%
200% Stressatdefiniteelongation ≥9.5 Mpa
Operating Resistance ≥1×10 6 Ω
Stiffness Coefficient 60~80 KN/mm
Hot Air Ageing Test(100°C×72h) Elongation at Rupture ≥150 %
Tensile Strength ≥10 Mpa
Note:(Temperatura:-20~70°C)
Packaging & Shipping

Packaging

1) Pack railway rubber pads into woven bags

2) Put the bags onto the Pallets

Shipping

We can send the small order via air and large quantity via ocean.

And we have a good discount price from FedEx, UPS, DHL and other logistics company.
