Quick Details
-
Model Number:
-
all kinds
-
Specification:
-
20mm-1400mm
-
Length:
-
100m
-
Thickness:
-
2.5mm
-
Standard:
-
ISO9001, SAE 100R14
-
Product name:
-
Wire Braided Flexible Metal PTFE Hose
-
Cover:
-
Braided with stainless steel
-
Temperature Range:
-
-60 ℃ to +260℃
-
Application:
-
steam, weak alkali, acid, hot oil, gas
-
Specifcation:
-
1/2'' to 4''
-
Samples:
-
free
-
Business type:
-
own factory
-
MOQ:
-
5 meters
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HOYITE
-
Model Number:
-
all kinds
-
Specification:
-
20mm-1400mm
-
Length:
-
100m
-
Thickness:
-
2.5mm
-
Standard:
-
ISO9001, SAE 100R14
-
Product name:
-
Wire Braided Flexible Metal PTFE Hose
-
Cover:
-
Braided with stainless steel
-
Temperature Range:
-
-60 ℃ to +260℃
-
Application:
-
steam, weak alkali, acid, hot oil, gas
-
Specifcation:
-
1/2'' to 4''
-
Samples:
-
free
-
Business type:
-
own factory
-
MOQ:
-
5 meters

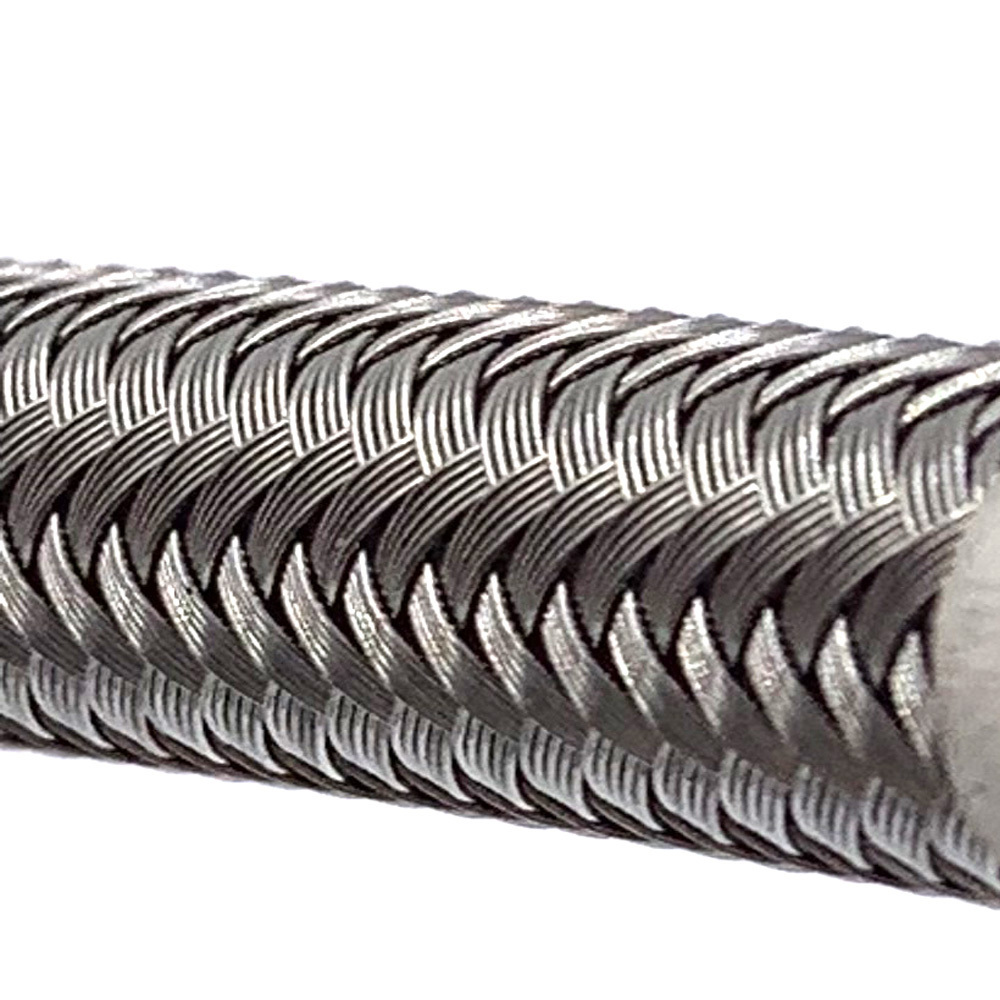

Wire Braided Poly Te-tra Tluoroethylene Hose Flexible Metal Hose PTFE
Tube: PTFE(Poly Te-tra Tluoroethylene)
Reinforcement: one stainless steel braid
Application range: average pressure application with hydraulic fluids within a high temperature as well as aggressive media teflon hose wrapped stainless steel wire and connection methods
Operating Instructions
Users shall select types of quick couplings appropriately according to operating requirements and features of joints (including work pressure, medium properties, and flow, temperature, corrosiveness and ambient temperature, quantities and connecting types of pipes etc.)
Sprcification of PTFE Hose Pipe Teflon Tube
| Spec. | Inner Tube I.D. | Inner Tube O.D. | Braided O.D. | W.P. | Min. Bendius |
| (mm) | (mm) | (mm) | (kg) | /mm ±3mm | |
| 1/8 . | 3.2 | 5.5 | 6.5 | 314 | 45 |
| 3/16 . | 4.8 | 6.7 | 8 | 256 | 76 |
| 1/4 . | 6.4 | 7.8 | 8.8 | 230 | 81 |
| 5/16 . | 7.9 | 10 | 11.5 | 194 | 131 |
| 3/8 . | 9.8 | 11.6 | 12.8 | 162 | 182 |
| 1/2 . | 12.7 | 15 | 16.5 | 90 | 211 |
| 5/8 . | 15.9 | 18 | 20 | 80 | 252 |
| 3/4 . | 19 | 21.4 | 23 | 70 | 312 |
| 7/8 . | 22.25 | 24.65 | 26.4 | 60 | 421 |
| 1 | 25 | 28 | 30 | 50 | 489 |
Wire Braided Poly te-tra fluoroethylene Flexible Metal PTFE Hose
Package and Shipping
| 1.Length | 20meters/roll,40M/Roll, 50Meters/roll, 100meters/roll etc |
| 2.Quality test | 100% pressure test and leakage test before packing. |
| 3.Packing | standard export packing or according to customer's special requirements. |
| 4.Delivery | The specific delivery time depends on the items and the quantity. |
Our Advantages
A. More than 12 years export experiences
B. Advanced equipments
C. High skilled workers
D. Strict scientific management
Certificate
Our Services
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers
3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production
Welcome to visit your company
Before-sale:
1, All enquires will be replied within 8hours. 7D/24H service.
Please feel free to contact us with skype ,email or TM etc.
2, Strong technical team and Professional sales.
After-sale:
1, All the goods will be tested and adjusted before shipping. You can driving it directly.
2, 12months warranty
3, After the guarantee of quality period, the parts required to repair or change shall be paid
Our other hydraulic rubber hose series
FAQ
Q1. Do you produce smooth or cloth wrapped cover?
We can produce both, which depends on customer’s request.
Q2. Do you produce embossed marking?
Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
Yes, we have been offering OEM services for 20 years.
Q4. Does your product have different color hose?
Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
