Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Operation:
-
Non-maintain
-
Lamp type:
-
6 pcs SMD 5730 LED
-
Lumen:
-
200 lm
-
Battery:
-
Ni-Cd battery 3.6V1.8Ah
-
Duration Time:
-
3 hours
-
product Size:
-
238mm*80mm*40mm/0.38kg
-
Installation way:
-
Ceiling recessed
-
Warranty:
-
3 Years
-
Charge time:
-
24 Hours
Quick Details
-
Battery Type:
-
Ni-CD
-
Material:
-
Plastic
-
Use:
-
Building Emergency Use
-
Place of Origin:
-
Zhejiang, China
-
Operation:
-
Non-maintain
-
Lamp type:
-
6 pcs SMD 5730 LED
-
Lumen:
-
200 lm
-
Battery:
-
Ni-Cd battery 3.6V1.8Ah
-
Duration Time:
-
3 hours
-
product Size:
-
238mm*80mm*40mm/0.38kg
-
Installation way:
-
Ceiling recessed
-
Warranty:
-
3 Years
-
Charge time:
-
24 Hours

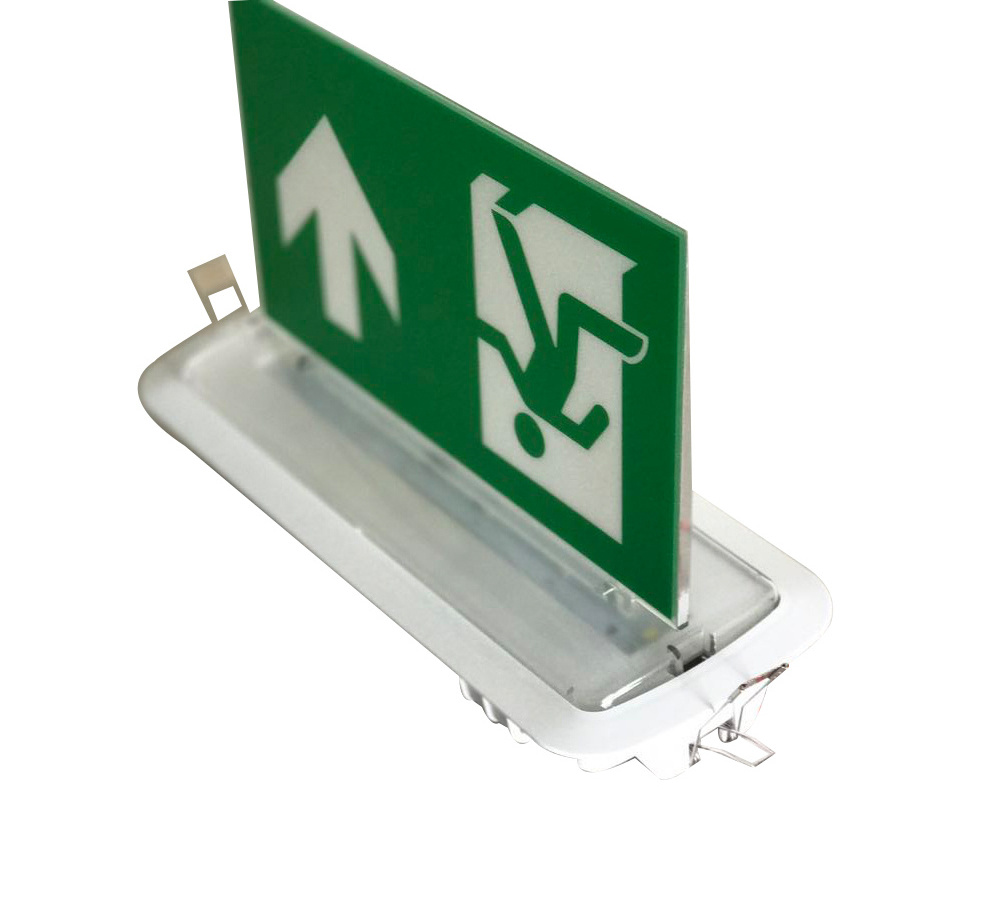

Small Size Double sides LED Emergency Ceiling Recessed Exit Sign Light
L116N-E
Product feature:
This product meets the CE standard, use high quality electronic components especially for Ni-Cad battery. Lamp type is highlighting SMD LED,our emergency light has high lumens,long lifetime, and low energy dissipation feature.
Specification:
|
Non-maintained |
|
|
Input Voltage |
220V-240V 50/60Hz |
|
Lamp type |
6 pcs SMD 5730 LED |
|
Battery |
Nickel-Cadmium Battery 3.6V 1.8 Ah |
|
Indicator |
Green LED--AC power on, Red LED--charging |
|
Duration Time |
More than 3 hours |
|
Construction |
Fire Retardant ABS Casing and Plate; PS Diffuser |
|
IP Rate |
IP20 |
|
Installation |
Ceiling Recessed Mounted |
|
Weight |
0.38 KG |
|
Size |
238mm*80mm*40mm Tolerance ±0.03mm |
Product Pictures:
Package:
|
Package |
1 Set in 1 Inner Box 50 Sets in 1 Outer Carton |
|
Inner Box Size |
270*105*45mm |
|
Outer Carton Size |
4 9 * 27.5 *56.5 mm |
|
Gross Weight |
23 KG |
Installation step:
1. Open the product ( Pls. use tiny slot type screwdriver or flats tools to tilted
product’s surface gap, make the diffuser separate from the bottom case, and take out the middle plate.
2. Use setscrew to fasten the bottom case on the wall.
3. Put AC wire through the bottom case hole, connect the main circuit board on L,N
connect terminal
4. Install the middle plate.(Make the indicator lamp through middle plate hold.)
5. Close the diffuser ( Fasten with the bottom case )
6. Connect with the AC power
Application:
This product is used in all kind of building, when power off, emergency light can
lighting automatically. Mainly used in Mall, hotel, office.
