Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SURFON
-
Dimension(L*W*H):
-
5000x1850x1850mm
-
Weight:
-
1600 KG
-
Certification:
-
CE ISO
-
Name:
-
aluminum window thermal packing machine
-
Usage:
-
PE film
-
Product name:
-
aluminum window thermal packing machine
-
Packing material:
-
PE film
-
Item:
-
aluminum window thermal packing machine
-
Packing speed:
-
15m/min
-
Model:
-
GH-6030AF+SF-15040E
-
Keyword:
-
aluminum window thermal packing machine
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SURFON
-
Dimension(L*W*H):
-
5000x1850x1850mm
-
Weight:
-
1600 KG
-
Certification:
-
CE ISO
-
Name:
-
aluminum window thermal packing machine
-
Usage:
-
PE film
-
Product name:
-
aluminum window thermal packing machine
-
Packing material:
-
PE film
-
Item:
-
aluminum window thermal packing machine
-
Packing speed:
-
15m/min
-
Model:
-
GH-6030AF+SF-15040E
-
Keyword:
-
aluminum window thermal packing machine
|
Model |
GH-6030AF |
SF-15040E |
|
Power |
6 kw |
30kw |
|
Power supply |
AC 380/220V 3PH 50/60Hz |
|
|
Max. Packing Size L×W×H |
300mm≤W+H<≤1250mm, L(unlimited ); H≤250mm |
2500×1000×250mm |
|
Tunnel Size L×W×H |
/ |
4000×1500×400mm |
|
Horizontal Blade Length |
1300mm |
/ |
|
Air Temperature |
300 ℃ |
300 ℃ |
|
Table Height |
825±25 mm |
825±25 mm |
|
Packing Speed |
15m/min. |
0~18m/min. |
|
Extra Air Source |
6-8 kg/cm2 |
/ |
|
Shrink Film |
PE |
PE |
|
Machine Size L×W×H |
2455×1950×1960 mm |
5000×1850×1850 mm |
|
Packing Size L×W×H |
2505×2000×2110 mm |
5050×1900×2000 mm |
|
G./N. Weight |
1600/1500kgs |
2500/2400kgs |

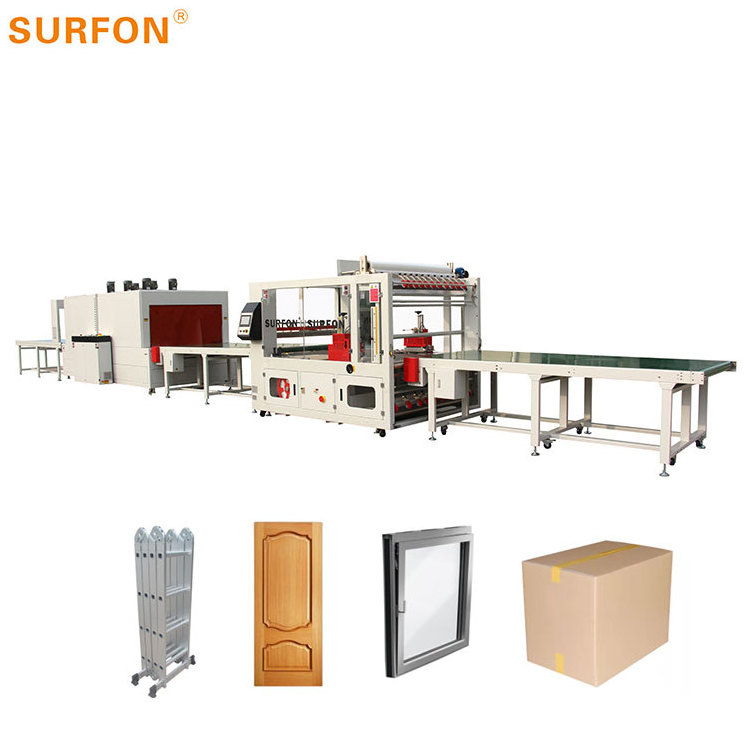

- GH-6030AF Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced high speeddouble-side sealing technology. It has up & down single film rollers. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing;
- Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and heavy products’fully-closed packaging with PE film, such as doors, ladders, furniture, mattresses and other heavy and oversized objects;
- The waste film can be winded automatically for easily clean-up;
- Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing strength results;
- For 0.04 ~ 0.18mm thickness PE shrink film;
- Input & output conveyors and colored film positioning function can be addedas per customer demend;
- Humanized touch smart operation interface is convenient for the operator to use;
- Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;
- Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;
- Assorted shrink tunnel SF-15040E uses imported double air circulation motors, so that the hot air in the oven canspread more evenly to get a good shrink effect;
- PE high strength film is suitable for long distance transportation and frequent handling that can avoid damage and keep away from moisture.
|
Sealer Parts |
Brand |
Country |
|
Sensor |
Banner |
USA |
|
Solid Relay |
Fotek |
Taiwan |
|
Side Blade Cylinder |
Festo |
Germany |
|
Solenoid Valve |
AirTAC |
Taiwan |
|
Gear Motor |
Dung Lee |
Taiwan |
|
PLC |
Siemens |
Germany |
|
HMI |
Siemens |
Germany |
|
Servo Drive |
Schneider |
France |
|
Servo Motor |
Schneider |
France |
|
Lifting Motor |
GPG |
Taiwan |
|
All Switches |
Siemens |
Germany |
|
Film Motor |
Haitec |
Italy |
|
Intermediate Relay |
Siemens |
Germany |
|
Temperature Controller |
Ormans |
Janpan |
|
Frequency Inverter |
Schneider | France |
|
Electrical Breaker |
Schneider |
France |
|
Tunnel Parts |
Brand |
Country |
|
Solid Relay |
Fotek |
Taiwan |
|
Gear Motor |
GPG |
Taiwan |
|
Intermediate Relay |
Siemens |
Germany |
|
Temperature Controller |
Autonics |
Korea |
|
Electrical Breaker |
Schneider |
France |
|
Frequency Inverter |
Schneider |
France |
|
All Switches |
Siemens |
Germany |
|
AC Contactor |
Schneider |
France |
|
Power Supply |
Mean Well |
Taiwan |
|
Video Link |
Product |
|
https://youtu.be/DDDyY0oxSek |
Textile Roll |
|
https://youtu.be/J8ctqrAJ7Rs |
Carton Boxes |
|
https://youtu.be/phhhTm64s6I |
Wooden panel |
|
https://www.youtube.com/watch?v=yXEyZrAQSks |
Shower door |
|
https://youtu.be/k-p-_-2LbWk |
Goods shelves |
|
https://youtu.be/eVu6SwxpNVE |
Mattress |
|
https://youtu.be/iTvMKeOc1D8 |
Pizza boxes |
|
https://youtu.be/NqqQZpSYPvc |
Lightweight board |
|
https://youtu.be/qEk71z-p8Bs |
Door |
|
https://youtu.be/Z8D7q6kJLXY |
Wooden Panel |
|
https://youtu.be/IPwwYmeGF18 |
Fish net |
|
https://youtu.be/8o_WdgwF2DQ |
Carton boxes |
|
https://youtu.be/6vmR8gQuUAA |
Transparent door |
