Quick Details
-
Min. / Max. Rim Width Capacity:
-
1.5" -16"
-
Angular position:
-
512
-
Balancing Accuracy:
-
0.035 ounce/ 1 gram
-
Shipping Weight:
-
120kg
-
Shipping Dimension:
-
1150 * 770* 980 mm
-
Max. Wheel Diameter Capacity:
-
1080mm
-
Max. Rim Width Capacity:
-
415mm
-
Cycle Time:
-
6 to 15 seconds- wheel weight dependent
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12 Months
-
Rim Diameter Capacity:
-
10" - 30"
-
Min. / Max. Rim Width Capacity:
-
1.5" -16"
-
Angular position:
-
512
-
Balancing Accuracy:
-
0.035 ounce/ 1 gram
-
Shipping Weight:
-
120kg
-
Shipping Dimension:
-
1150 * 770* 980 mm
-
Max. Wheel Diameter Capacity:
-
1080mm
-
Max. Rim Width Capacity:
-
415mm
-
Cycle Time:
-
6 to 15 seconds- wheel weight dependent
Product features:
1. Magnetic levitation system racquires high accuracy and less maintenance
2. Easy indicate unbalance position.
3. Large display touch pad.
4. Automatic data entry with electronic measuring gauges.
5. Wheel balancing of most passenger car and light truck wheels and motorcycle or ATV wheels with optional adapter kits.
Specification:
|

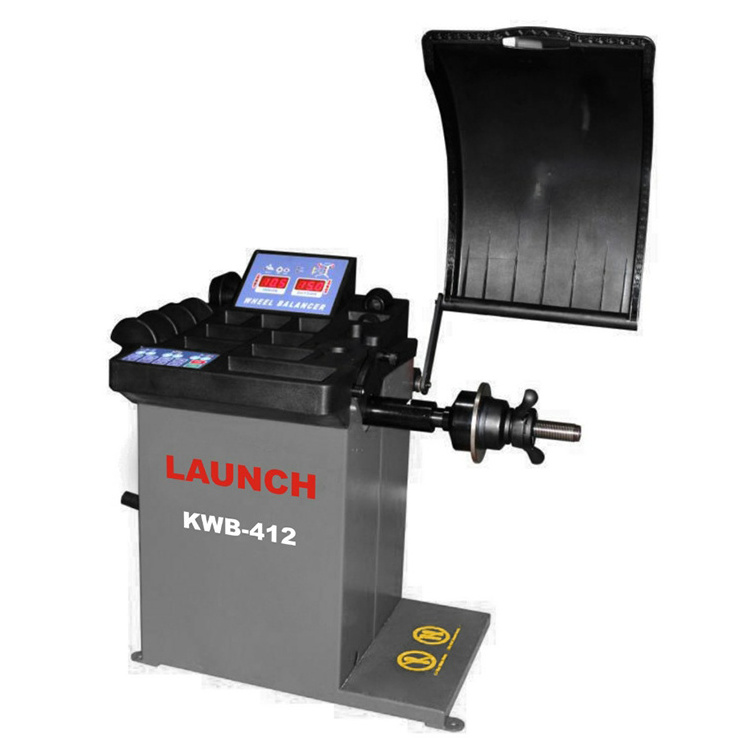

KWB-412 |
Highly accurate electric wheel balancer, automatic data entry, available with 40mm or 36mm spin shaft |
|
Electrics |
Available in 100V-120V * 220V-240V |
|
Product Application |
Wheel balancing of most passenger car and light truck wheels and motorcycle or ATV wheels with optional adapter kits |
|
Max. Wheel Diameter Capacity |
1080mm |
|
Max. Rim Width Capacity |
415 mm |
|
Rim Diameter Capacity |
10" to 30" |
|
Min./ Max. Rim Width Capacity |
1.5" to 16" |
|
Max. Wheel Weight Capacity |
143 LBS / 65 kg |
|
Balancing Speed |
Less than 200 RPM |
|
Tire/ Rim Balancing Modes |
for cars: NORMAL/ STATIC/ APS/ ALU-S/ALU-2/ALU-3/ALU-4/ALU-5; for motorcycle: NORMAL/ STATIC/ APS |
|
Cycle Time |
6 to 15 seconds- wheel weight dependent |
|
Data Entry |
Automatic data entry with built in electronic measuring gauges that provide distance, rim diameter and width acquisition. |
|
Calibration |
Semi-automatic with user assisted data input (required on initial start-up or as required during normal operation) |
|
Automatic Start |
Factory set to start upon wheel guard close (feature is user defined) |
|
Brake Type |
Resistor operated with manual foot brake |
|
Foot Brake |
Standard, mechanical to hold wheel in position |
|
Weight/ Size Selections |
User defined touch key on display panel (ounce or gram/inch or mm) |
|
Balancing Accuracy |
0.035 ounce/ 1 gram |
|
Shipping Weight |
120 kg |
|
Shipping Box Dimension |
115 * 77* 98cm |
