Quick Details
-
Model Number:
-
LW26GS-20/04-2 ON-OFF 3P
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
waterproofing grade:
-
IP 44
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
660Vac
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
AMBOHR
-
Model Number:
-
LW26GS-20/04-2 ON-OFF 3P
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
waterproofing grade:
-
IP 44
-
Certification:
-
CE
Test Drive This Product
Still not sure? We offer free product samples for many of our products. No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Product Description

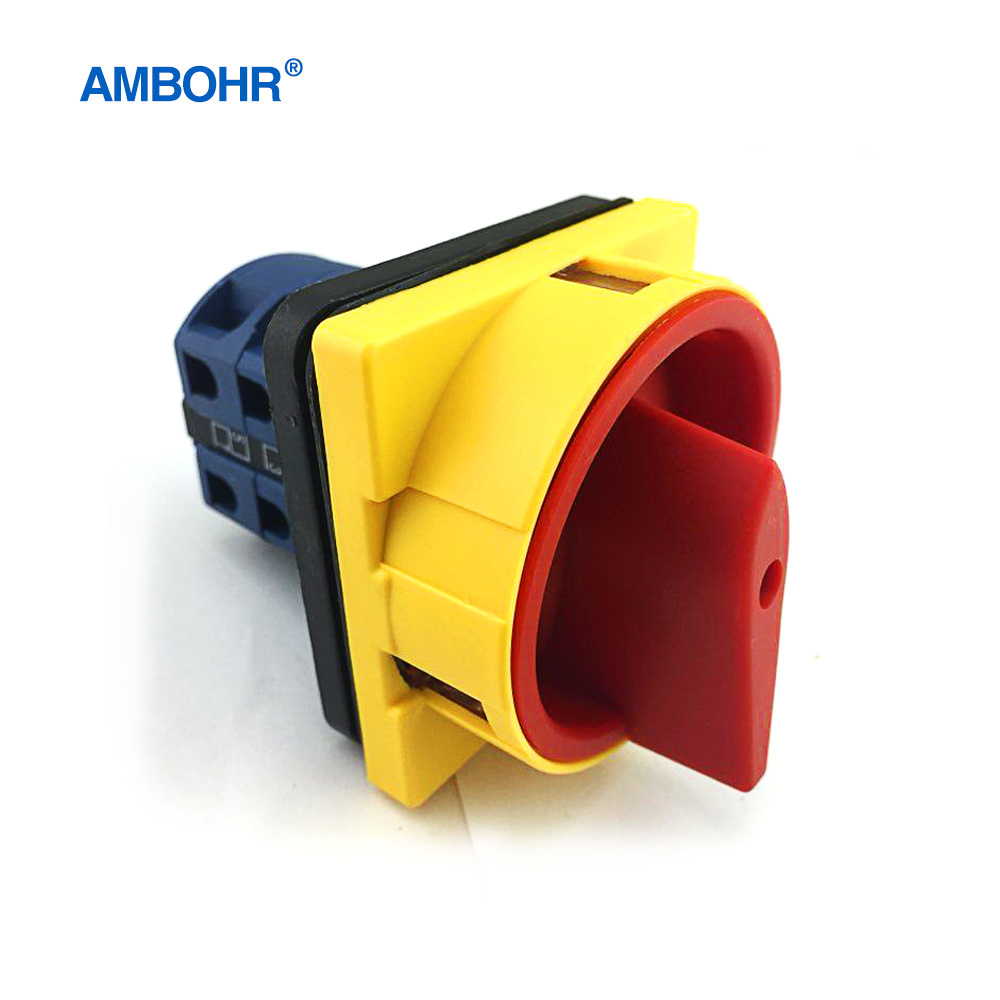

AMBOHR LW26-GS20/04-2 ON-OFF 3P Cam Switch
AMBOHR Changeover Switch, easy to install cam-operated rotary switches is a great solution for almost any control and load break switch application. Operators conveniently mount in around 8.5mm hole that is directly interchangeable with commonly available pilot devices and other control and load break switches. Our Isolator switch maintained operators are rated Type 4/4X(IP66) as the standard for watertight and corrosion resistance. In addition, they are also rated for Type 1, 3, 3R, 12 and IP65 for ingress protection. All switches are suitable for global applications having met UL, CSA, and IEC standards.
SUPERIOR SWITCHES DESIGNED FOR THE MACHINE BUILDER
|
AMBOHR Model Number
|
|
LW26-20
|
|
|
|
|
|
LW26-20
|
|
|
|
|
|
LW26-20C
|
|
|
|
Rated insulation voltage
|
Ui(V)
|
660/690
|
|
|
|
Thermal Current Rating
|
Ith(A)
|
20
|
|
|
|
Rated operational voltage
|
Ue(V)
|
240
|
440
|
|
|
Rated operational current
|
Ie(A)
|
/
|
/
|
|
|
AC-21A
|
A
|
20
|
20
|
|
|
AC-23A
|
A
|
15
|
15
|
|
|
AC-2
|
A
|
15
|
15
|
|
|
AC-3
|
A
|
11
|
11
|
|
|
AC-4
|
A
|
3.5
|
3.5
|
|
|
AC-15
|
A
|
5
|
4
|
|
|
DC-13
|
A
|
0.4
|
/
|
|
|
Control power rating
|
|
|
|
|
|
AC-23A
|
KW
|
3.7/2.5
|
7.5/3.7
|
|
|
AC-2
|
KW
|
4
|
7.5
|
|
|
AC-3
|
KW
|
3/2.2
|
5.5/3
|
|
|
AC-4
|
KW
|
0.55/0.75
|
1.5/1.5
|
|
Detailed Features
Simple Customization
Round operator without the front plate is available for use with standard and custom legend plates for simple and convenient customization.
Advanced Safety
Switches are available with IP20 guarded terminals to protect against accidental contact with live parts.
Mechanical Status Indicator
provide a clearly readable function control indication and status display
Normal window display for the green
Fault window display for the red(Must be replaced immediately)
Heavy-Duty
High Grade engineering plastics like nylon and glass filled polyamide provide outstanding mechanical strength and electrical insulating properties.
Certifications
Production Flow
FAQ
Q1: What's your
warranty
?
A1: The warranty is 2 years and we deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
Q2: How about
inspection
?
A2: Our Test standard: IEC 61643-1 / EN 61643-11, and the Vibration and Shock according standard : DIN EN 60068-2-6 and DIN EN 60068-2-27, as well as the Degree of protection according to IEC EN60529: IP 20. We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test and so on.
Q3: What's the standard of package ?
A3: Inner box and out carton are made as per international standard and we can make special design according to customer's need. And if necessary,goods will be packed by pallet to avoid any damage.
Q4: Could you do
OEM
for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.
Q5: What is the
payment terms
?
A5: T.T,Western Union and L/C is acceptable. Moreover, you can place order on Alibaba though Trade Assurance.
Q6: What' your
advantages
?
A6: 1. We can provide the most comprehensive SPD products.
2. We have the professional engineer team which can provide free consultation and design services. the customize will be according to your
drawings or samples
3. Your inquire will be replied within 6 hours any time.
4. Our Freight forwarders are faster,safer,and more convenient, and we can make sure the delivery on time.
