Quick Details
-
Dimension(L*W*H):
-
7830 x 268x 4710 mm
-
Power:
-
85kw
-
Engine Capacity:
-
3.5m3/can
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Power type:
-
Diesel Engine Concrete Mixer
-
Engine:
-
Yuchai
-
Application:
-
Construction Industry
-
Capacity:
-
1.2-6.5m3
-
Color:
-
Customer's Requirement
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
4850 kg
-
Dimension(L*W*H):
-
7830 x 268x 4710 mm
-
Power:
-
85kw
-
Engine Capacity:
-
3.5m3/can
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Power type:
-
Diesel Engine Concrete Mixer
-
Engine:
-
Yuchai
-
Application:
-
Construction Industry
-
Capacity:
-
1.2-6.5m3
-
Color:
-
Customer's Requirement
Product Description

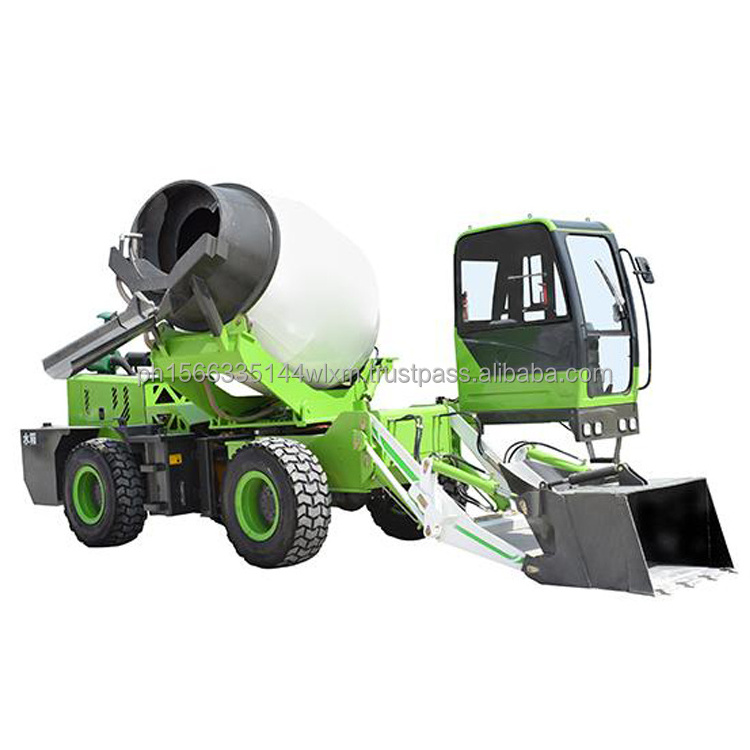

Self Loading Concrete Mixer Truck
Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features bidirectional driving, which is realized by the 270 degrees slewing of drum. The concrete output ability is 14 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 30 km/hour, and the min. turning radius is 4.7 meters only.
The equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, and air conditioner, etc. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.
High strength steel plate, which enhances the load capacity and high stability of vehicle. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process. Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.
|
Model
|
JBC1.2
|
JBC2.6
|
JBC3.5
|
JBC5.5
|
|
Drum geometrical capacity
|
1,700 L
|
3,580 L
|
4,740 L
|
7,800 L
|
|
Discharge Capacity
|
1,200 L
|
2,600 L
|
3,500 L
|
5,500 L
|
|
Engine Brand
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
|
Rated Power
|
55 kw
|
78 kw
|
85 kw
|
110 kw
|
|
Gear
|
4 forward 4 back
|
4 forward 4 back
|
4 forward 4 back
|
4 forward 4 back
|
|
Fuel tank
|
63 L
|
63 L
|
63 L
|
63 L
|
|
Oil tank
|
16 L
|
16 L
|
16 L
|
16 L
|
|
Water tank
|
400 L
|
500 L
|
620 L
|
860 L
|
|
Water supply
|
Time relay
|
Time relay
|
Time relay
|
Time relay
|
|
Wheelbase
|
2,400 mm
|
2,800 mm
|
2,900 mm
|
3350 mm
|
|
Drive Form
|
Torque converter
|
Torque converter
|
Torque converter
|
Torque converter
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Installation Instructions
The vehicle size is small, which is suitable for limited site and widely new in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer’s houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
