- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
500 x 475 x 555mm
-
Weight:
-
54
-
Rated power/speed:
-
6.3kW/1800RPM
-
Model & HP:
-
TD186FS(9HP)
-
Engine Type:
-
Air Cooled, 4 Stroke, Diesel Engine
-
Bore x Stroke:
-
86 x 70mm
-
Rated Output:
-
6.3kW(8.5HP)1800rpm
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
5.5L
-
Available Options:
-
Electric start, air cleaner
-
Certification:
-
CE
Quick Details
-
Displacement:
-
406cc, 406cc
-
Emission Standard:
-
Other
-
Power:
-
6.3kW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Talos Plus
-
Dimension(L*W*H):
-
500 x 475 x 555mm
-
Weight:
-
54
-
Rated power/speed:
-
6.3kW/1800RPM
-
Model & HP:
-
TD186FS(9HP)
-
Engine Type:
-
Air Cooled, 4 Stroke, Diesel Engine
-
Bore x Stroke:
-
86 x 70mm
-
Rated Output:
-
6.3kW(8.5HP)1800rpm
-
Starting System:
-
Recoil Start
-
Fuel Tank Capacity:
-
5.5L
-
Available Options:
-
Electric start, air cleaner
-
Certification:
-
CE
Product Description

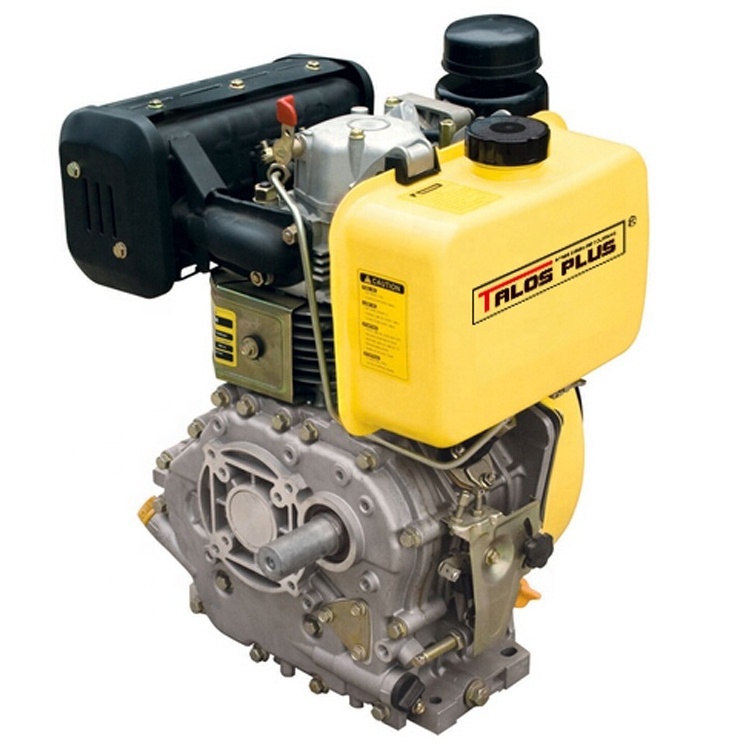

9 HP 4-Stroke Air Cooled 1800 RPM Low Speed TD186FS Diesel Engine
Talosplus® diesel engine TD186FS is low-maintenance, compact, lightweight, durable, fuel-efficient and quiet. It has widely applications, such as construction, engine replacement and etc.
Air cooled small diesel engines you can get here as follows,
TD170F(4HP), TD173F(5HP), TD178F(7HP), TD186F(9HP), TD186FA(10HP), TD188F(12HP), TD192F(13HP).
TD170F(4HP), TD173F(5HP), TD178F(7HP), TD186F(9HP), TD186FA(10HP), TD188F(12HP), TD192F(13HP).
Key specifications
|
Model
|
TD186FS
|
Brand
|
Talos Plus
|
||
|
Bore x Stroke
|
86 x 70mm
|
Displacement
|
406cc
|
||
|
Engine Type
|
Direct injection, diesel
|
Cylinder(qty)
|
1
|
||
|
Rated Power
|
6.3kW(8.5hp)/3600rpm
|
Speed
|
3600RPM
|
||
|
Fuel consumption
|
283g/kw.h@3600rpm
|
Fuel Tank Capacity
|
5.5L
|
||
|
Lube Oil Capacity
|
1.65L
|
Fuel Type
|
Diesel
|
||
|
Compression Ratio
|
19 : 1
|
Shaft Output
|
Camshaft
|
||
|
N.W/G.W
|
52/54kg
|
Dimension(L x W x H)
|
500 x 475 x 555mm
|
||
|
Lube Oil Type
|
SAE10W30(above CC grade)
|
|
|
||
|
Rotation Direction
|
Anticlockwise(view from flywheel)
|
|
|
||
|
Available Option
|
Electric start, color, air cleaner
|
|
|
||
Detailed Images
Packing & Delivery
Durable carton box with foam.
Available option: color box with pallet.
Package dimension(L x W x H): 500 x 475 x 555mm.
Gross weight with package: 54kg.
Lead time: regular 30 days after got deposit.
